Hardware Installation and Reference Guide Installing the Switch
64
3.4 Installing and Removing a Power Supply Module
Wear an anti-static wrist strap before the following operation.
Installing the AC Power Supply Module
1. Remove the module from its packing materials and make sure the input specifications meet requirements.
2. Remove the blank filler panel in the empty slot. Keep the module nameplate face upward. Grasp the handle with one hand and
place your other hand under the module to support its weight. Slide the module all the way into the slot along the guide rail until
you feel the connector snap into place.

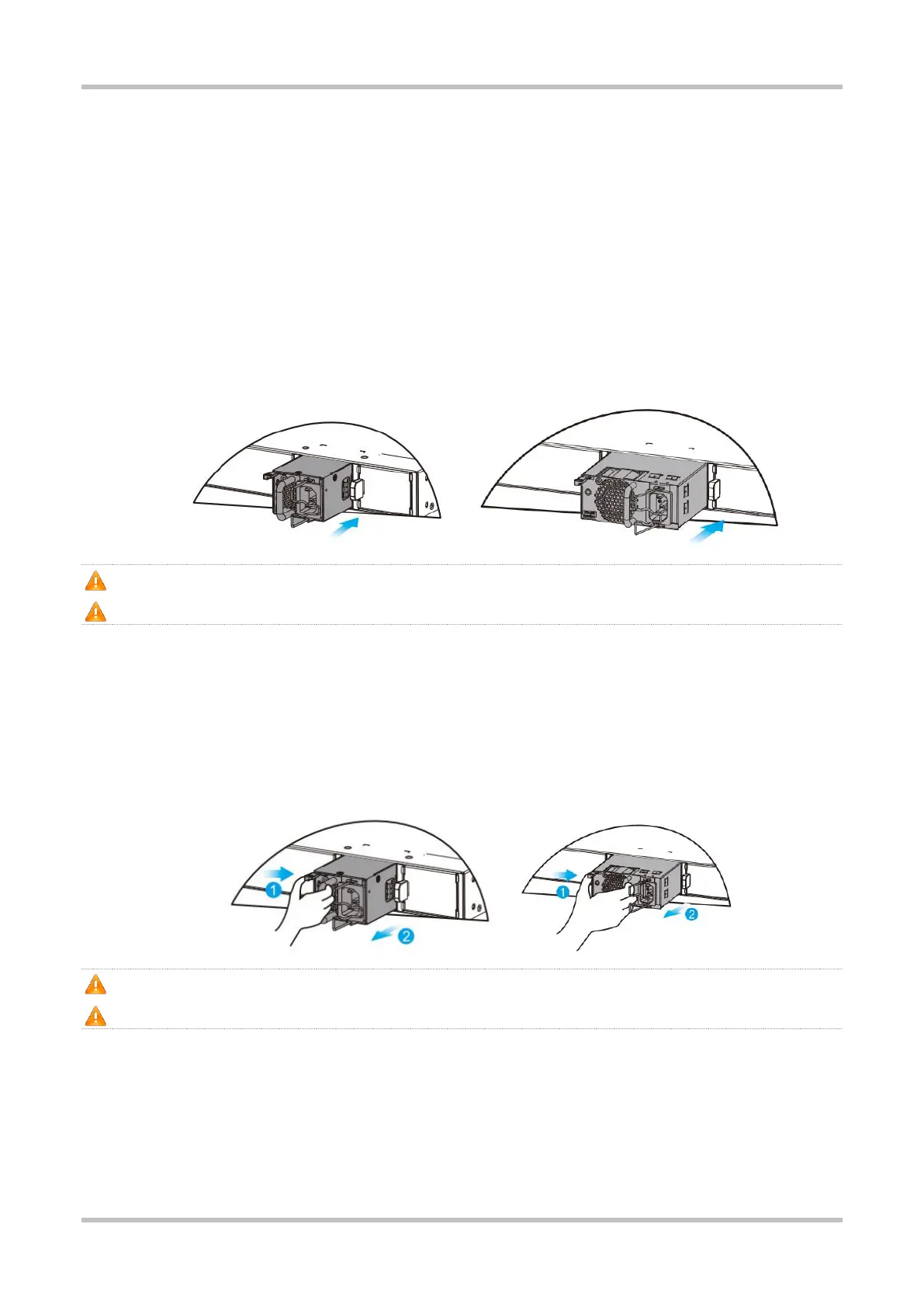

Figure 3-7 Installing the Module
Slide the module into the slot. Verify that the power supply module is in the correct orientation.
If you find it difficult to fully insert the module, pull the module out, align it to the guide rails and slide it into the slot again.
Removing the AC Power Supply Module
1. Press the latch on the module and grasp the handle with one hand. Place your other hand under the module to support its weight.
Pull the module fully out of the slot.
2. Install the filler panel in the empty slot. Put the removed module back into its packing materials.
Figure 3-8 Removing the Module
Pull the module out of the slot gently.
Install the filler panel in the empty slot to allow for adequate airflow.
Installing the DC Power Supply Module
1. Remove the module from its packing materials and make sure the input specifications meet requirements.
2. Remove the blank filler panel in the empty slot. Keep the module nameplate face upward. Grasp the handle with one hand and
place your other hand under the module to support its weight. Slide the module all the way into the slot along the guide rail until
you feel the connector snap into place. The two screws of the DC power supply are the input of the power supply. Remove the
