Ruijie Reyee RG-NBR-E Series User Manual

Cookbook Configuration
27
3.2.2 Configuring DHCP in CLI Mode

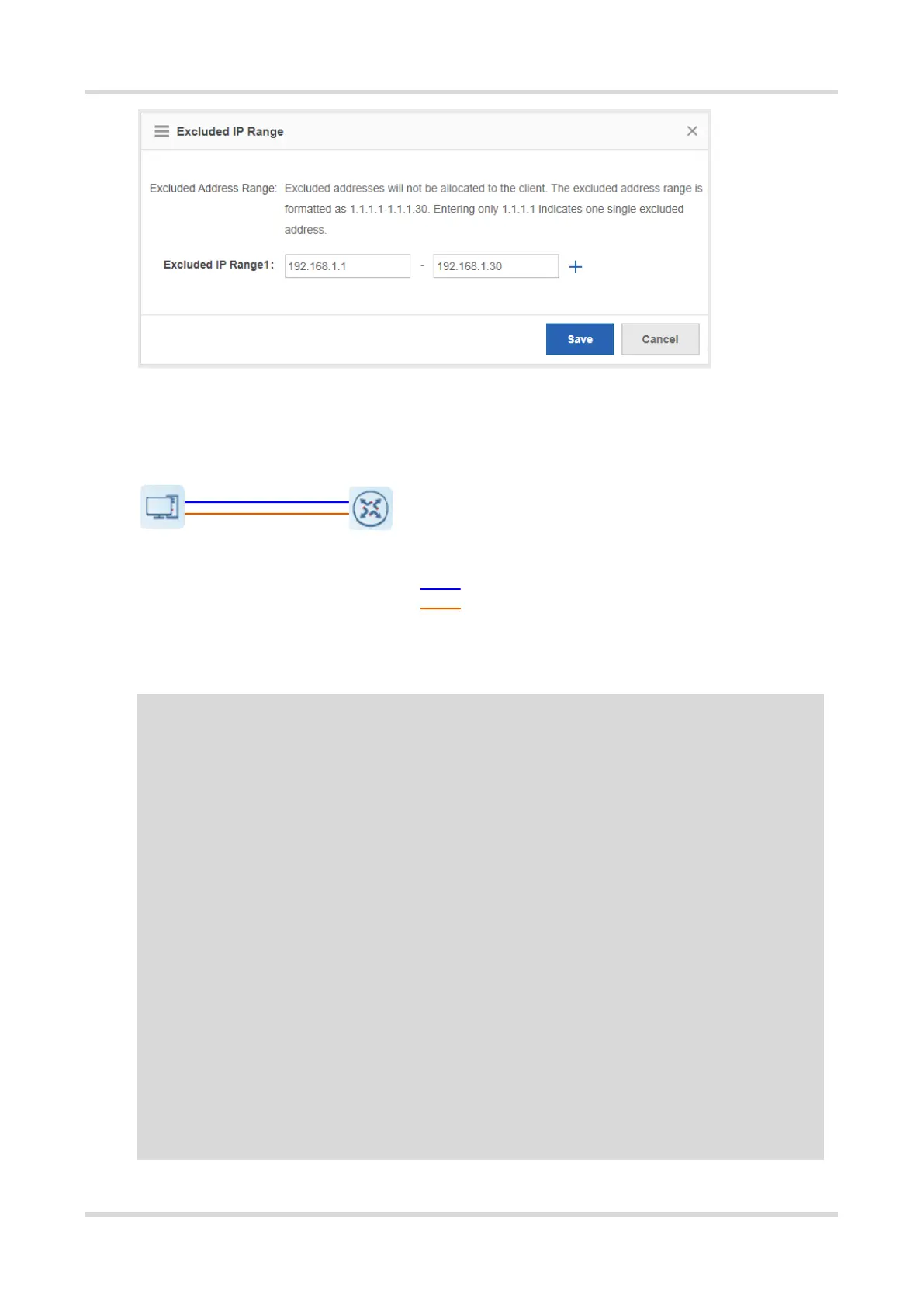

(1) Connect to the NBE router as shown in the following figure.
(2) Run the following commands in turn.
Ruijie>enable
Ruijie#configure terminal
Ruijie(config)#service dhcp //Enable DHCP.
Ruijie(config)#ip dhcp excluded-address 192.168.1.1 192.168.1.10 //Retain 192.168.1.1-192.168.1.10.
Ruijie(config)#ip dhcp pool Test //Creat a DHCP pool named Test.
Ruijie(dhcp-config)#lease 0 1 0 // Set lease time, ’0 1 0’ means 0 day, 1 hour, 0 minute. The default lease
time is 24 hours.
Ruijie(dhcp-config)#network 192.168.1.0 255.255.255.0 //Configure an IP address range for the DHCP
pool.
*The following is static IP distribution in DHCP.
Ruijie(dhcp-config)# hardware-address 0026.b90b.a48a //Set the terminal MAC address to
0026.b90b.a48a.
Ruijie(dhcp-config)# host 192.168.1.150 255.255.255.0 //Configure a static IP address and mask.
*The above is static IP distribution in DHCP.
Ruijie(dhcp-config)#dns-server 192.168.58.110 8.8.8.8 //The primary DNS server address is
192.168.58.110 and the secondary IP address is 8.8.8.8.
Ruijie(dhcp-config)#default-router 192.168.1.1 //Set the router IP address.
Ruijie(dhcp-config)#end
Ruijie#write //Save the configuration.
PC
NBR device
Console port
Gi0/0
Normal cable
Console cable
