Disassembly and Reassembly
Samsung Electronics 3-85
QWall Mounted type(Neo Forte without EEV)

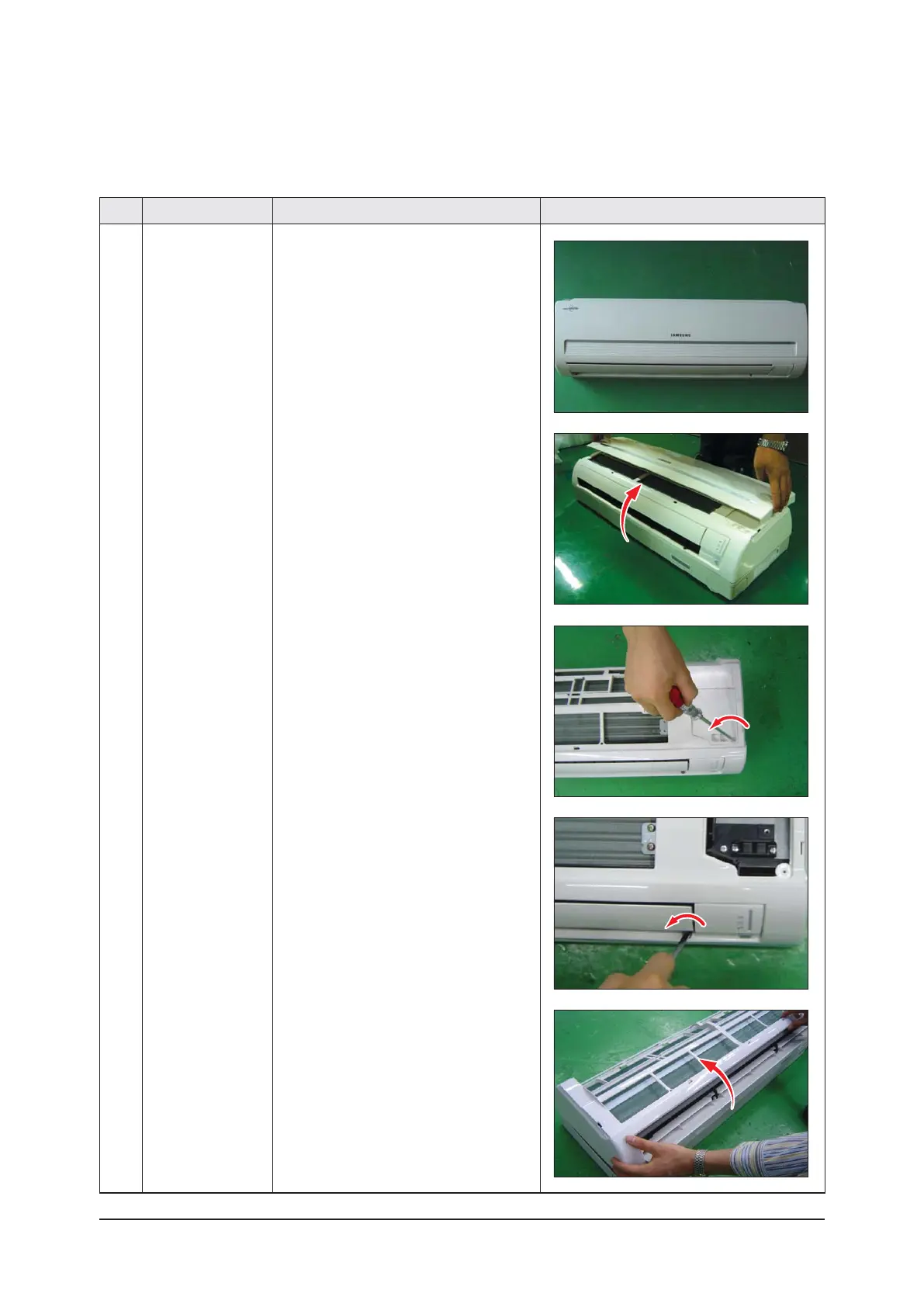

No Parts Procedure Remark
1 Front Grille 1) Stop the air conditioner operation and shut
off the main power.
2) Open the Front Grille by pulling right and
left sides of the hook.
3) Loosen 1 of the right screw(CCW) and
detach the Terminal Cover. (Use +Screw
Driver.)
4) Detach the thermistor from the Front Grille.
5) Loosen 2 fixing screws(CCW) of Front Grille.
6) Unlock 3 hooks to fix Panel Front and Tray
Drain. (Use +Screw Driver.)
– All the procedure has to be verified because the cover should not open when the unit is installed.

Samsung AM250FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	85300 BTU/h
Heating capacity in watts (max)	25000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	23.1 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+ to G
Power consumption (heating) (max)	5000 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	61 dB
Outdoor unit noise level	- dB
