Troubleshooting
Samsung Electronics 4-7
4-3 Troubleshooting
4-3-1 Setting Option Setup Method
4-3-1-1 PCB option code input method
▶ Set the indoor unit address and installation option with remote controller option.
Set the each option separately since you cannot set the ADDRESS setting and indoor unit installation setting option at the
same time.You need to set twice when setting indoor unit address and installation
option.

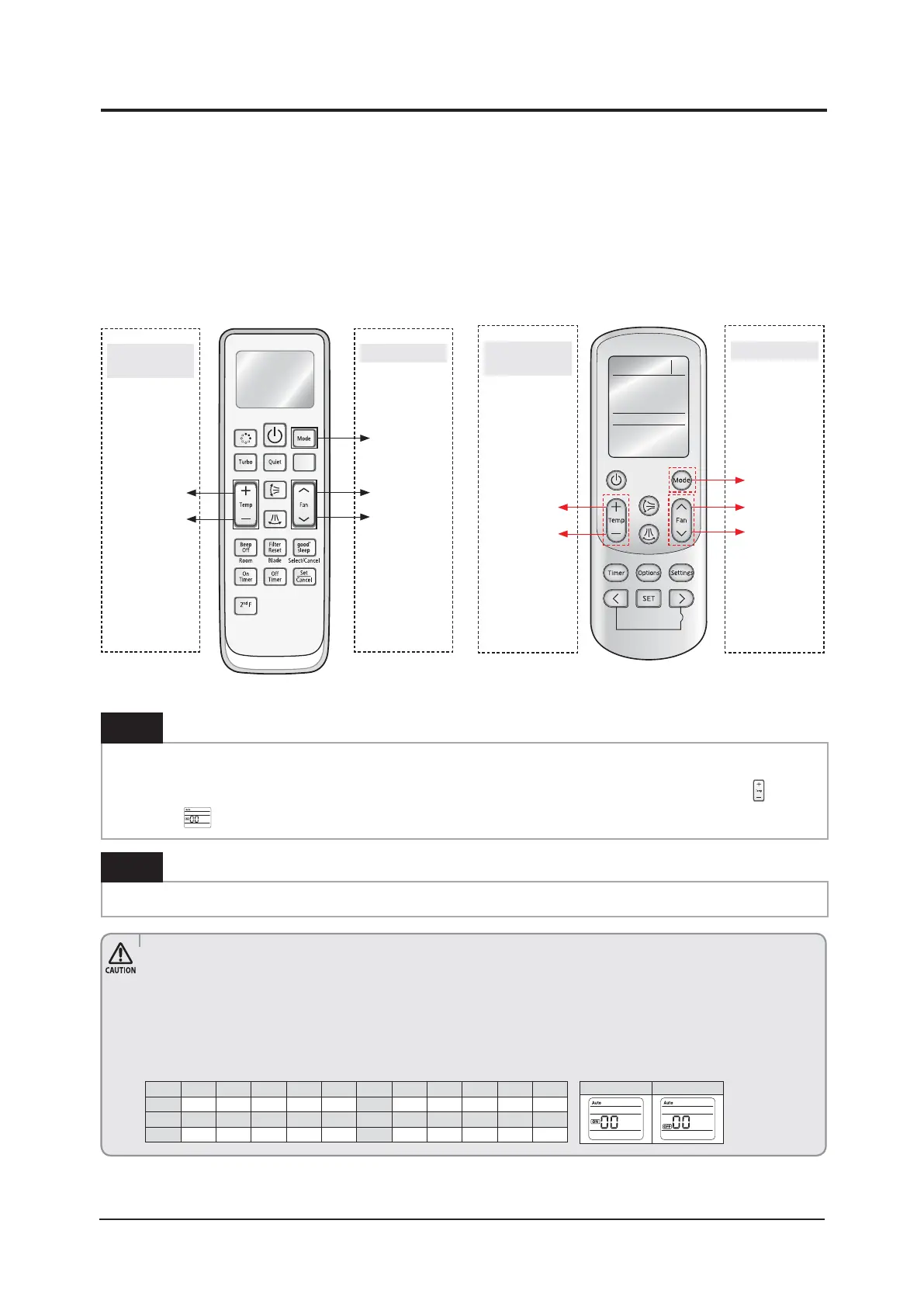

■ The procedure of setting option
High Temp Button
High Fan Button
Mode change
Low Temp Button
Low Fan Button
Entering mode for
setting option
Option setting mode
Step 1
Entering mode to set option
1. Remove batteries from the remote controller.
2. Insert batteries and enter the option setting mode while pressing High Temp button and Low Temp button
.
3.
Check if you have entered the option setting status.
Step 2
The procedure of option setting
After entering the option setting status, select the option as listed below.
t 5IFUPUBMOVNCFSPGBWBJMBCMFPQUJPOTBSF4&(UP4&(
t #FDBVTF4&(4&(4&(BOE4&(BSFUIFQBHFPQUJPOTVTFECZUIFQSFWJPVTSFNPUFDPOUSPMNPEFMTUIFNPEFTUPTFUWBMVFT
for these options are skipped automatically.
t 4FUBEJHJUWBMVFGPSFBDIPQUJPOQBJSJOUIFGPMMPXJOJHPSEFS4&(BOE4&(
󱈓 SEG4 and SEG5 󱈓 SEG6 and SEG8 󱈓 SEG9 and
SEG10
󱈓 SEG11 and SEG12 󱈓 SEG14 and SEG15 󱈓 SEG16 and SEG17 󱈓 SEG18 and SEG20 󱈓 SEG21 and SEG22 󱈓 SEG23
and SEG24.
High Temp Button
High Fan Button
Mode change
Low Temp Button
Low Fan Button
Entering mode for
setting option
Option setting mode
On(SEG1~12) O(SEG13~24)
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
0XXXXX1XXXXX
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20SEG21SEG22 SEG23 SEG24
2 XXXXX3 XXXXX

Samsung AM250FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	85300 BTU/h
Heating capacity in watts (max)	25000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	23.1 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+ to G
Power consumption (heating) (max)	5000 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	61 dB
Outdoor unit noise level	- dB
