Troubleshooting
Samsung Electronics 4-125

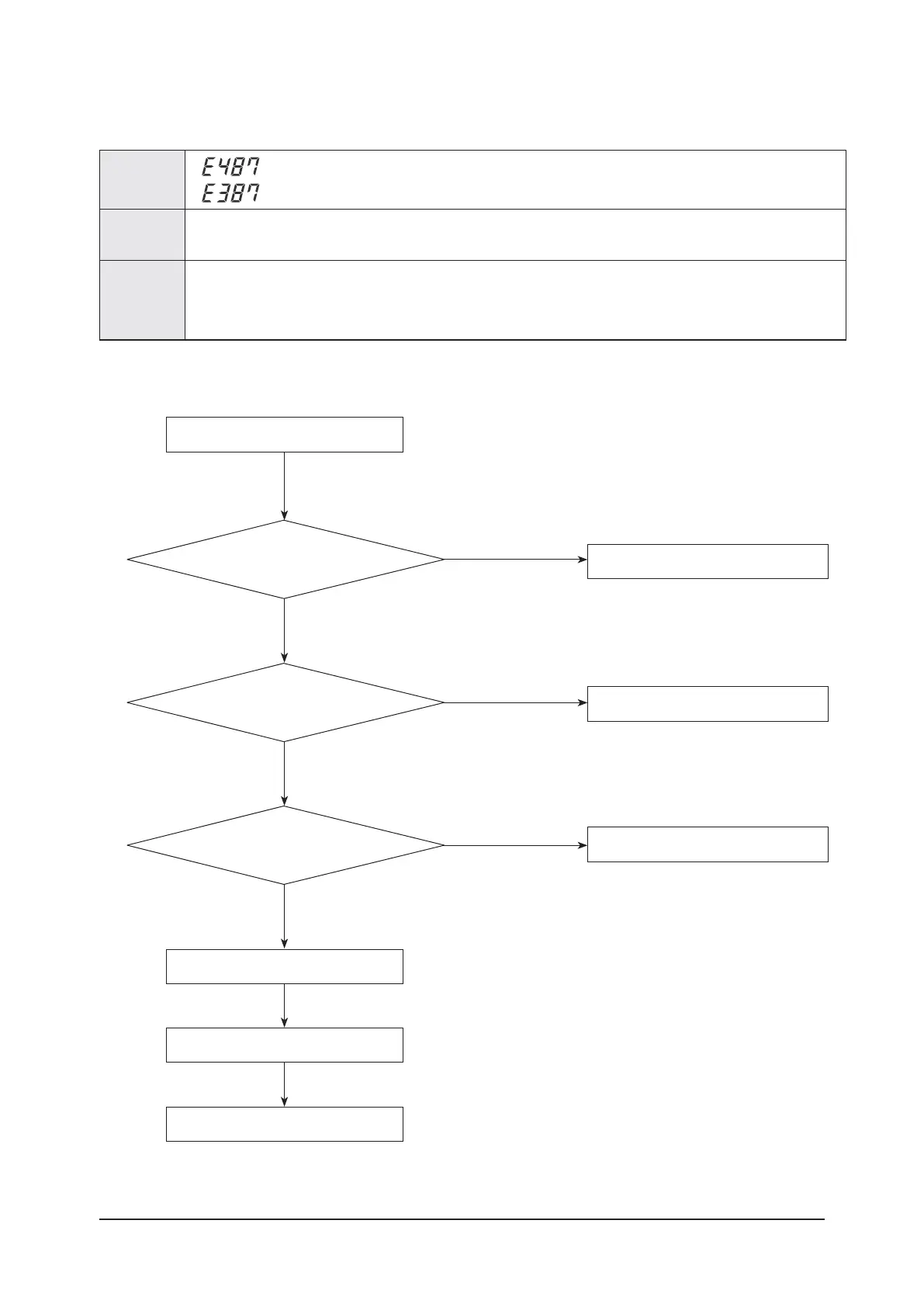

4-4-82 Hall IC(Fan) error
Outdoor unit
display
(FAN PCB(FAN1))
(FAN PCB(FAN2))
Judgment
Method
 Fan rotation defective or vibration and noise of the defective operation.
 Hall IC there is no signal input.
Cause of prob-
lem
 Connection status err or .
 Hall IC wire disconnection.
 Defective circuit parts and defective manufacturing.
 Fan Mot or defective.
1.
Cause of problem
Replace Fan PCB
Restart
When the error is repeated, replace the Fan Motor.
End of Service
No
Yes
Yes
Did the error occurs?
Check the connecting wire and restart it.
No
Yes
Connection wire of
HALL IC did confirmation?
(Verify that the wire folded, or the connection is
detached.)
Check the connecting wire and restart it.
No
Yes
HALL IC on the PCB is connected correctly?
Power Off / Power Restart

Samsung AM250FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	85300 BTU/h
Heating capacity in watts (max)	25000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	23.1 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+ to G
Power consumption (heating) (max)	5000 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	61 dB
Outdoor unit noise level	- dB
