Troubleshooting
Samsung Electronics 4-131
4-4-88 Electronic expansion valve opening malfunction (2
nd
stage)
Indoor unit display
Cause of problem
×(Operation)
(Reservation) (Blast) (Filter) ×(Defr ost)
tFaulty indoor unit electronic expansion valve action (refri gerant will leak into the stopped indoor unit)
tAddress setup error in indoor unit (RAC) using EEV KIT
Criteria
tPlease refer to determining method below
Outdoor unit display
1
st
stage inspection: (only displays on outdoor unit)  
2
nd
stage inspection:
x x x
(
x x x: indoor unit address of where error occurred)

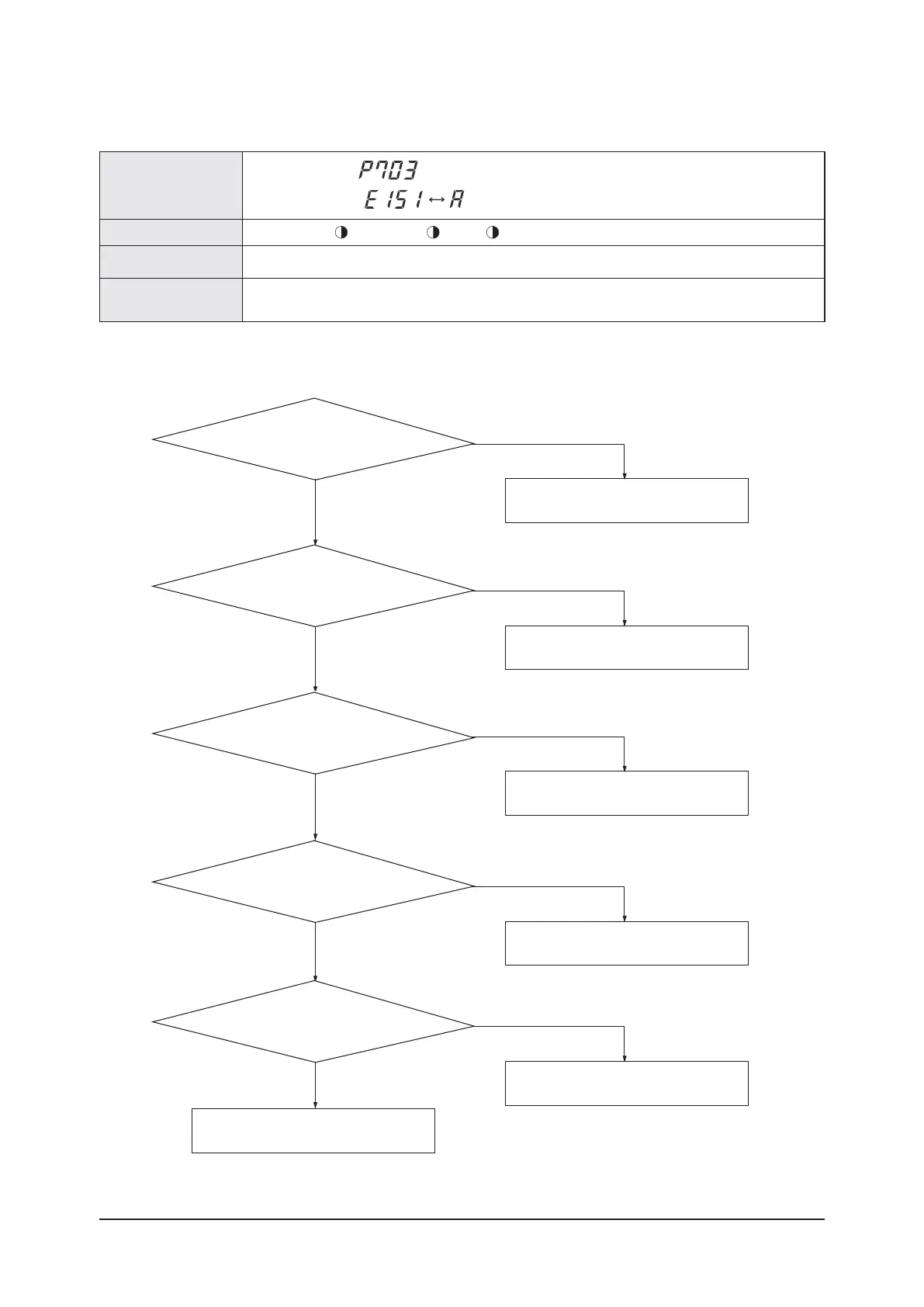

1. Inspection Method
Is the electronic
expansion valve wire connected
to the PCB?
After measuring the
coil terminal resistance, is there a disconnection
or short circuit inside the coil?
Is the electronic
expansion valve coil connected to the
main body properly?
After Resetting the outdoor
unit, does an error occur even after running it again
with the same combination?
Connect to PCB and run
again
No
No
Yes
No
No
Yes
No
Yes
Connect the electronic expansion valve coil
properly and run again
Replace electronic expansion valve coil
When EEV KIT was used,
was its Address setting accurate?
Repl
ace electronic expansion valve
Normal operation of electronic
expansion valve
Reset EEV KIT's Address
Yes
Yes

Samsung AM250FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	85300 BTU/h
Heating capacity in watts (max)	25000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	23.1 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+ to G
Power consumption (heating) (max)	5000 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	61 dB
Outdoor unit noise level	- dB
