Troubleshooting
Samsung Electronics 4-109
4-4-65 Fan starting error

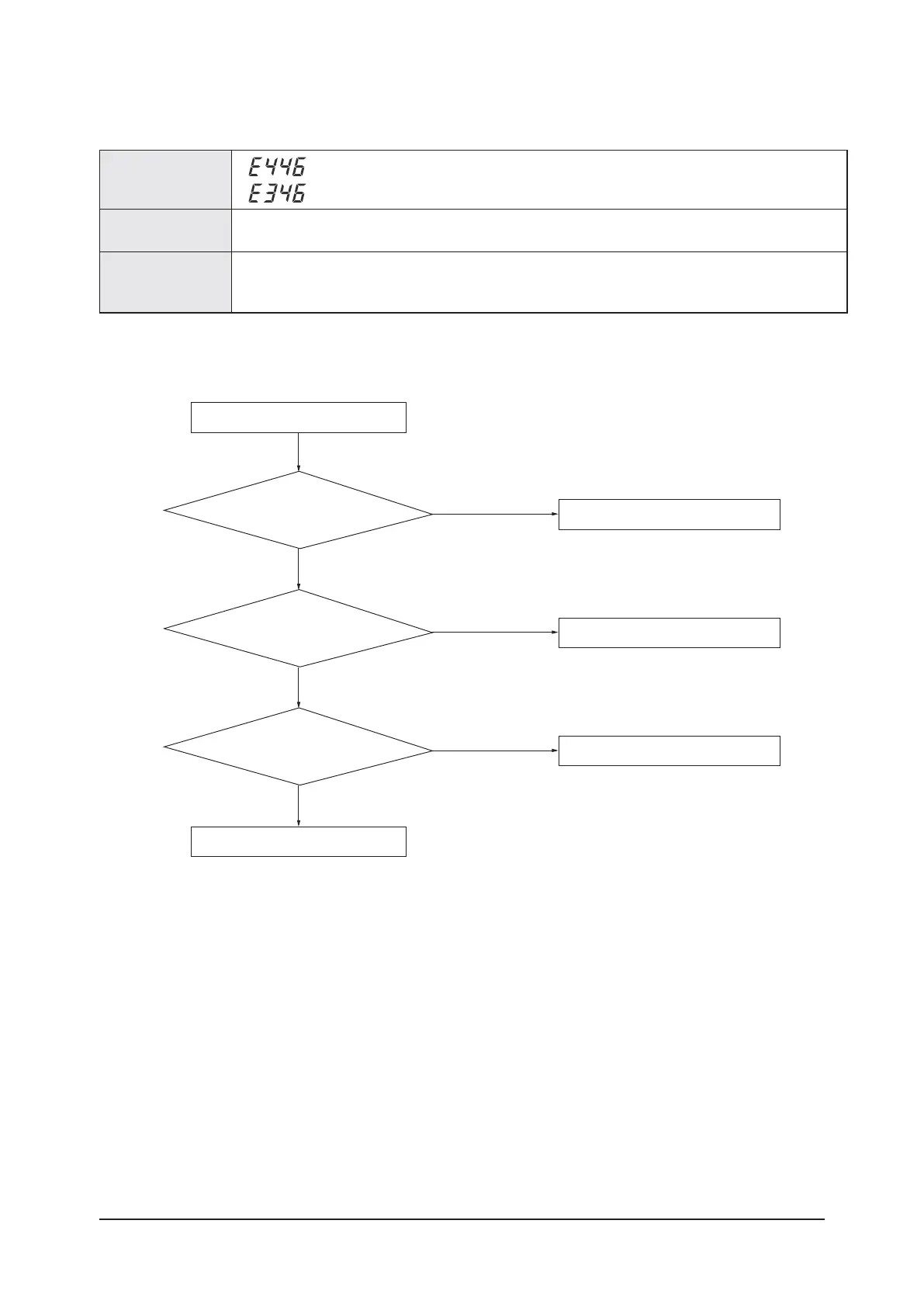

Outdoor unit display
(FAN PCB(FAN1))
(FAN PCB(FAN2))
Judgment Method
 Startup, and then if the speed increase is not normally.
 Detected by H/W or S/W
Cause of problem
 Compressor connection error
 Defective Compressor
 Defective PCB
Power Off and then Restart
Replace Fan PCB
Yes
Is the resistance
value between different phases of
an Motor (U׳V,V׳W,W׳U)
less than 10?
Replace Fan Motor
No
Yes
Is the resistance between the body of
Fan Motor and chassis M?
Replace Fan Motor
No
Yes
Does the Compressor connection
wire properly connect?
Check the connection wire
No
1.
Cause of problem

Samsung AM250FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	85300 BTU/h
Heating capacity in watts (max)	25000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	23.1 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+ to G
Power consumption (heating) (max)	5000 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	61 dB
Outdoor unit noise level	- dB
