Troubleshooting
Samsung Electronics 4-73

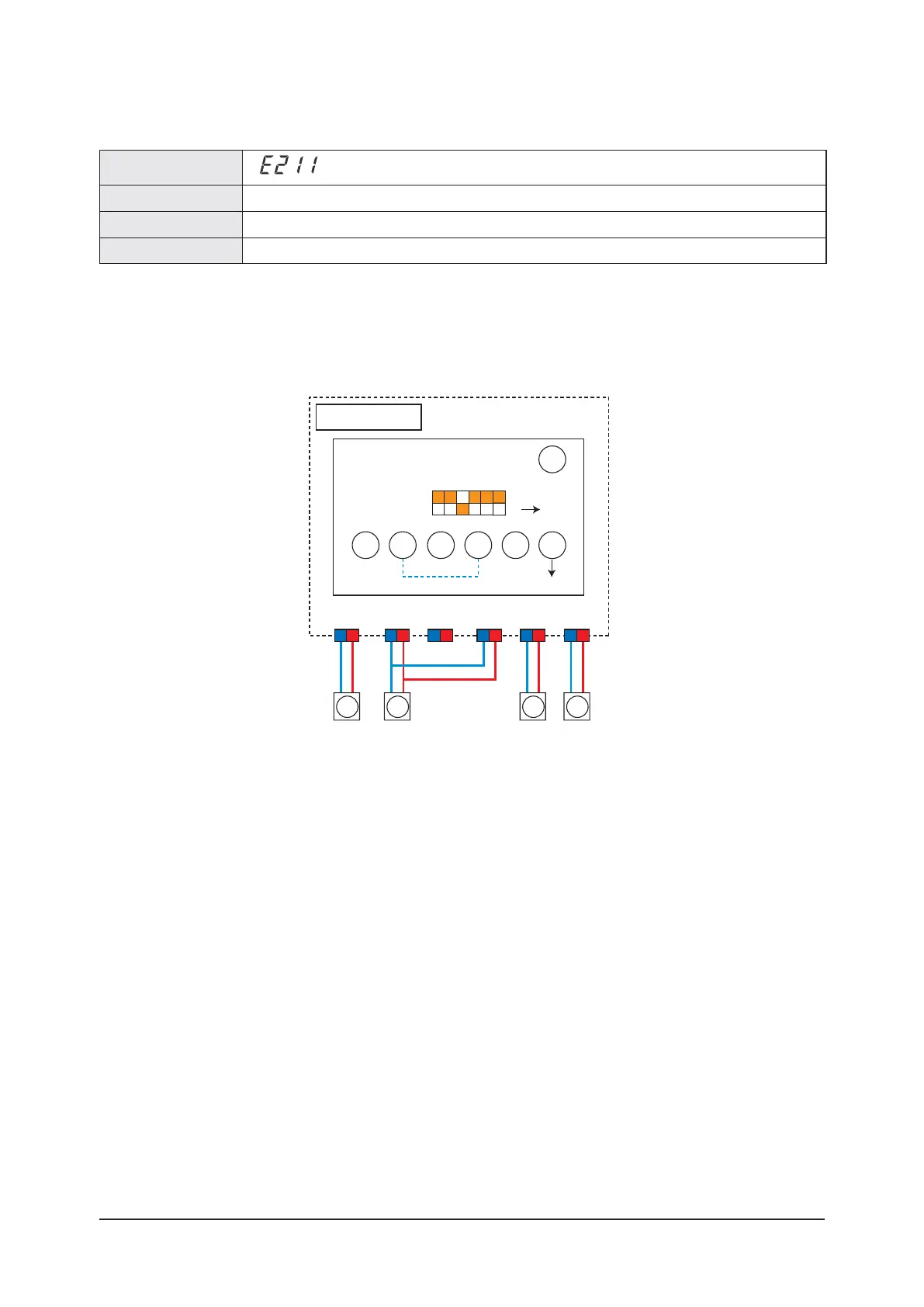

4-4-29 MCU branch part setup error – inconsecutive connection with the use of 2 branch parts
t Branch part assembly error
Criteria
Cause of problem
t When 2 branch parts are used for one indoor unit without connecting them consecutively.
Outdoor unit display
1. How to check
Find an MCU that is composed as the following picture to carry out assembly of branch part again. After completing the re-setting,
press K3 button on the button to reset or turn it off to restart.
Indoor unit display
MCU BOX #0
MCU PCB
OFF
MCU
address setup
ON
Setting error
Indoor unit
Indoor unit address
Branch part use setup
4 2 1 2 5 6
0
Branch A
4
B
2
C
D E
5
F
6
×(Operation)
◑
(Timer)
◑
(Fan)
◑
(Filter)
×
(Defr ost)

Samsung AM250FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	85300 BTU/h
Heating capacity in watts (max)	25000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	23.1 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+ to G
Power consumption (heating) (max)	5000 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	61 dB
Outdoor unit noise level	- dB
