Samsung AM250FNBFEB/EU User Manual

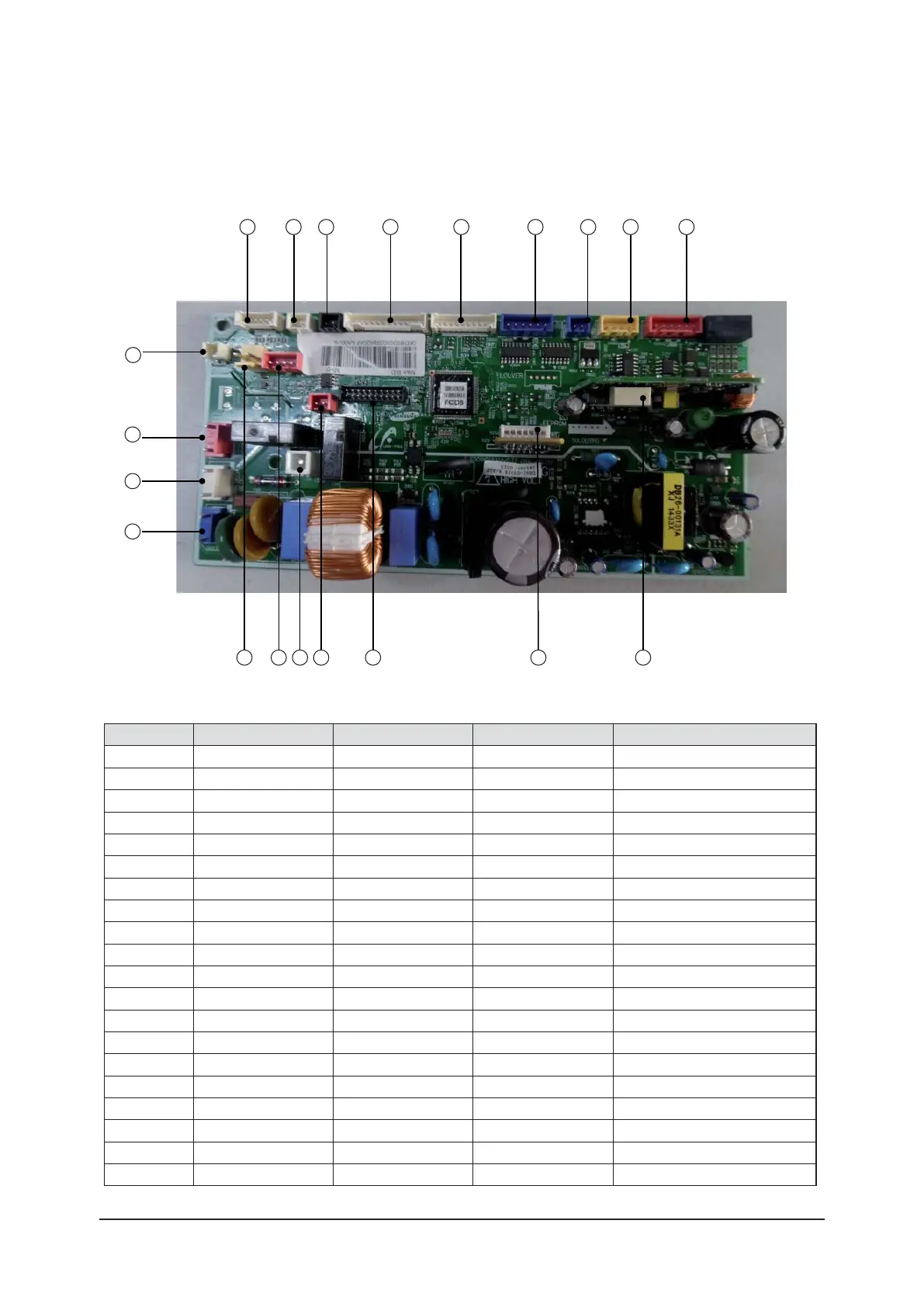

PCB Diagram and Parts List
5-36 Samsung Electronics
No part code location No. Function Description
1 3711-003942 CN140 Fuse Check SMW200-02P WHT
2 3711-000203 CN906 BLDC POWER YW396-03AV WHT
33711-003407 CN702 Comp SignalYW396-03AV RED
4 3711-003404 CN101 MAIN POWER YW396-03AV BLU
5 3711-000179 CN701 DRAIN YW396-02V YEL
6 3711-000939CN81 COMP ERROR SMW250-04 RED
7 3711-000744 CN1EARTH YDW236-01WHT
8 3711-000796 CN83 EXT-T SMW250-02 RED
9 3711-002001 CN301 DOWNLOAD YDW200-20
10 3711-007817 CN201 EPPROM B7P-MQ WHT
11 3711-004773 C
N311 2 WIREBMW200-12 WHT
12 3711-001037CN302 COMM SMW250-06 RED
133711-000941 CN801 SPISMW250-04 YEL
14 3711-000795 CN804 VEN SMW250-02 BLU
15 3711-001036CN808 EEV SMW250-06 BLU
16 3711-004182 CN905 FAN MOTOR COMM SMW200-10P WHT
17 3711-003895 C
N501 DISPLAY SMW200-13P WHT
18 3711-000794 CN411 FLOAT-SW SMW250-02 BLK
19 3711-000015 CN412 ROOM SENSOR SMW250-02 WHT
20 3711-004236CN413 EVA DIS/OUT SENSOR SMW200-06P WHT
5-1-17 GD-S (Big Duct)
- Main PBA
1
3
5 6 8 9
2
11
121314151617181920
4
7 10

Samsung AM250FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	85300 BTU/h
Heating capacity in watts (max)	25000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	23.1 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A+ to G
Power consumption (heating) (max)	5000 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	61 dB
Outdoor unit noise level	- dB
