Sanyo PLC-XF47 Service Manual

ORDER REPLACEMENT LAMP
Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following
information to the dealer.
● Model No. of your projector : PLC-XF47
● Replacement Lamp Type No. : POA-LMP109
(Service Parts No. 610 334 6267)
Lamp Replacement
- 12 -
Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP REPLACE
indicator stops lighting and the Lamp replacement icon disappears.
✔Note:
• Do not reset the Lamp counter without replacing the lamp. Be sure to
reset the Lamp counter only after replacing the lamp.

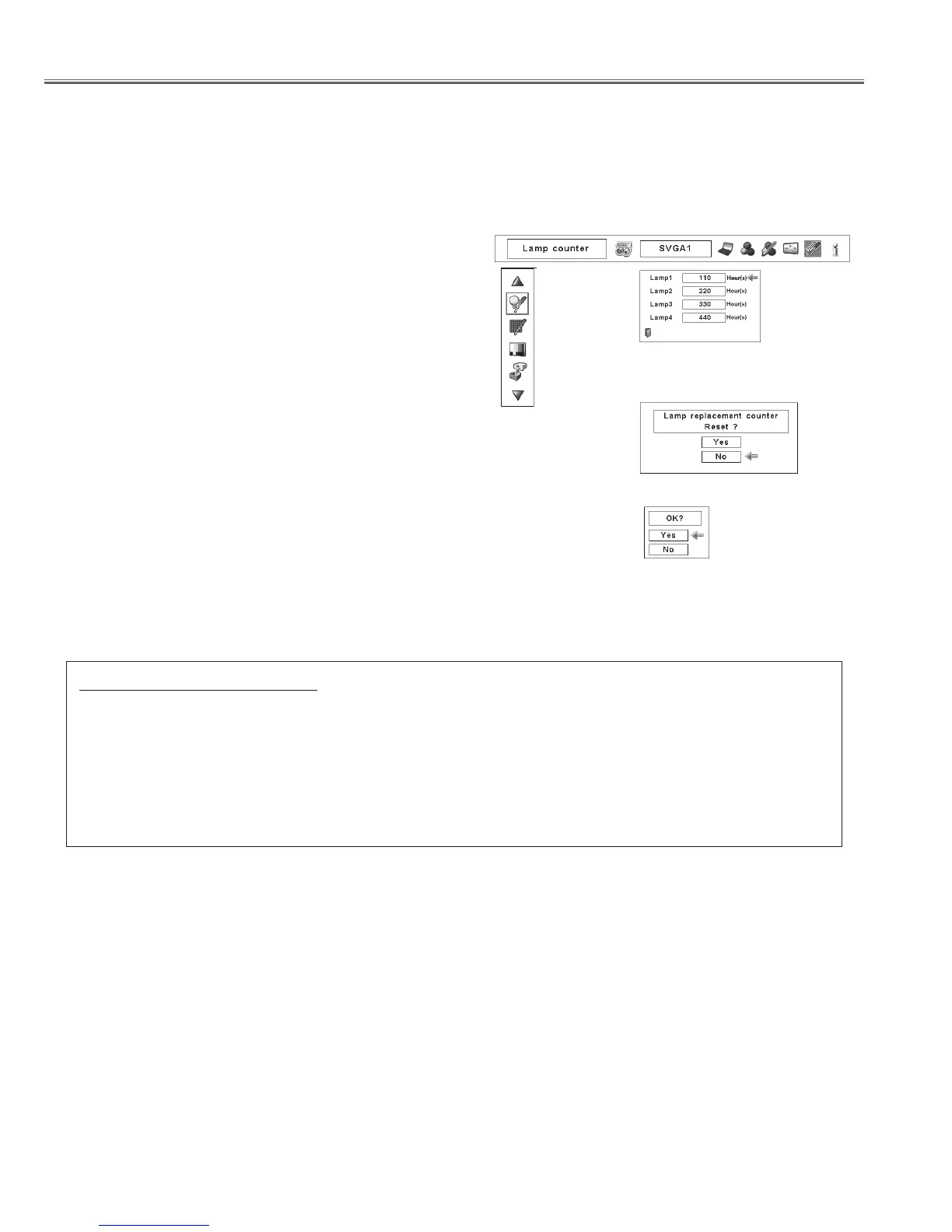

Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Setting Menu icon
Use the Point ed buttons to move the red frame pointer to
Lamp counter and then press the SELECT button. A dialog box
appears. Select a lamp and the “Lamp replacement counter
Reset?” appears. Select [Yes] to continue.
1
2
Lamp counter
Select a lamp and the “Lamp
replacement counter Reset?”
appears.
Select [Yes] again
to reset the lamp
counter.
Select [Yes], then another
confirmation box appears.
Another confirmation dialog box appears and select [Yes] to
reset the Lamp counter.
3
Resetting the Lamp Counter

Sanyo PLC-XF47 Specifications

General

Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 600 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	80 °
Keystone correction, horizontal	40 °
I/O ports	Analog (D-sub15), Serial in & Serial out (D-Sub 9 x 2)
Video out	UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA, MAC
Resolution	2359296 pixels
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	581 x 815.5 x 251.5 mm
Power requirements	200-240 V AC 9.7 A Max, 50 / 60 Hz
Connectivity technology	Wired
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Dot clock scanning frequency	230 MHz
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	1700 W

Weight and Dimensions

Weight	36500 g
