Sanyo PLC-XF47 Service Manual

- 5 -
■ Circuit Protections
This projector provides the following circuit protections to operate in safety. If the abnormality occurs inside the projector, it
will automatically turn off by operating one of the following protection circuits.

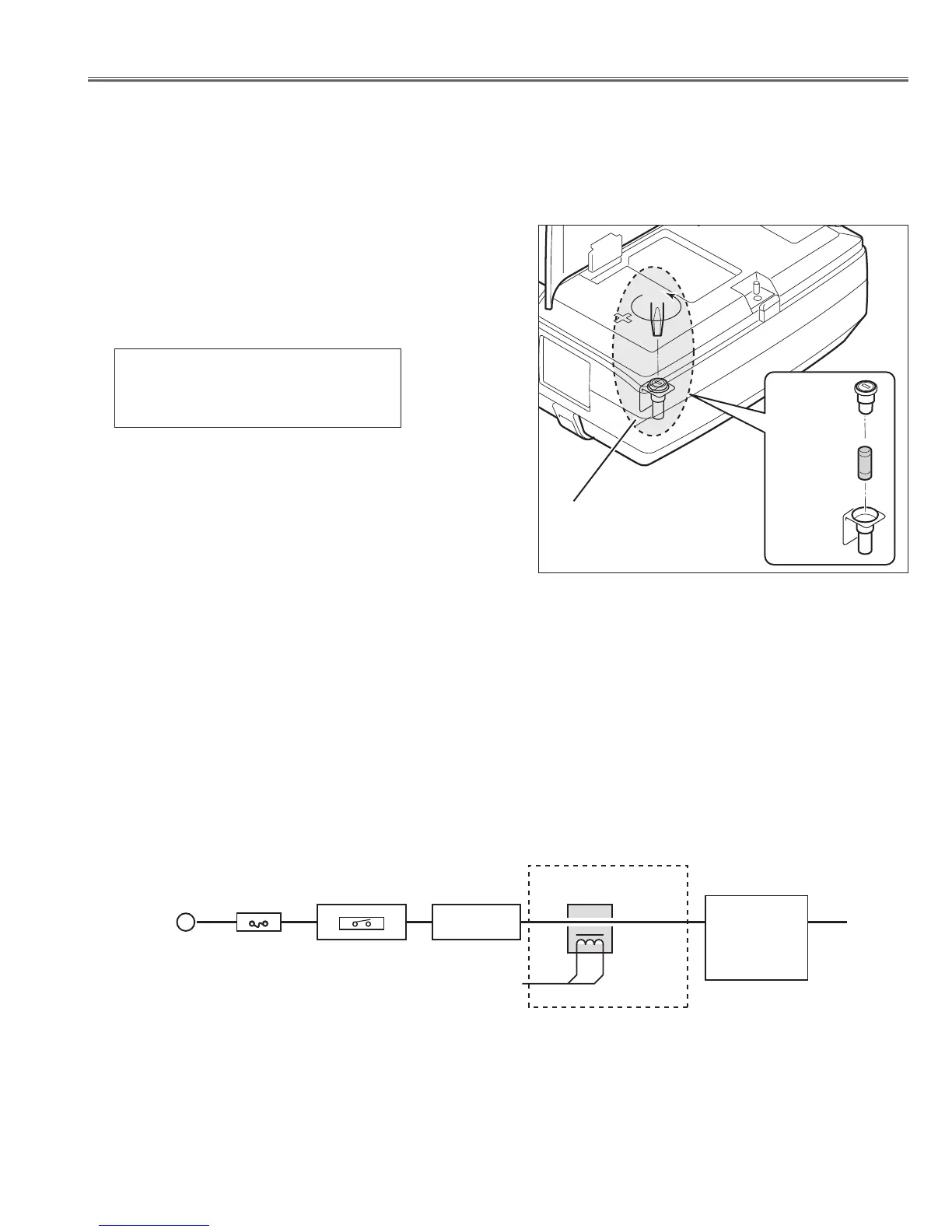

A fuse(F901) is located inside of the projector. When the
POWER indicator is not lighting, the fuse may be opened.
Check the fuse as following steps.
The fuse should be used with the following type;
● Fuse
How to replace the fuse
1. Remove the cabinet top following to "Mechanical
Disassemblies".
2. Remove the cover and the fuse from fuse holder.
To install the fuse, take reversed step in the above.
Fuse Part No.: 323 028 4202
TYPE 15.0A400V FUSE
SOC CORP. SHV14 15A N4
Fuse (F901)
Cover
Fuse
Holder
● AC Current Sensor
The AC Current Sensor is provided to prevent damage to the power supply circuits.
When AC input voltage is under 108V at MAINS SW ON, the AC Current Sensor will be operated and the CPU does not turn
the projector on, and both of READY and WARNING TEMP. indicators start flashing.
Check that the AC current sensor signal is correct. L : Abnormality
Hot circuit
AC-INPUT
MAINS SW
NOISE FILTER
CURRENT SENSOR
FUSE
SW901
LF901
F901
Z96W&A90
ASS'Y POWER
K96W

Sanyo PLC-XF47 Specifications

General

Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 600 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	80 °
Keystone correction, horizontal	40 °
I/O ports	Analog (D-sub15), Serial in & Serial out (D-Sub 9 x 2)
Video out	UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA, MAC
Resolution	2359296 pixels
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	581 x 815.5 x 251.5 mm
Power requirements	200-240 V AC 9.7 A Max, 50 / 60 Hz
Connectivity technology	Wired
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Dot clock scanning frequency	230 MHz
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	1700 W

Weight and Dimensions

Weight	36500 g
