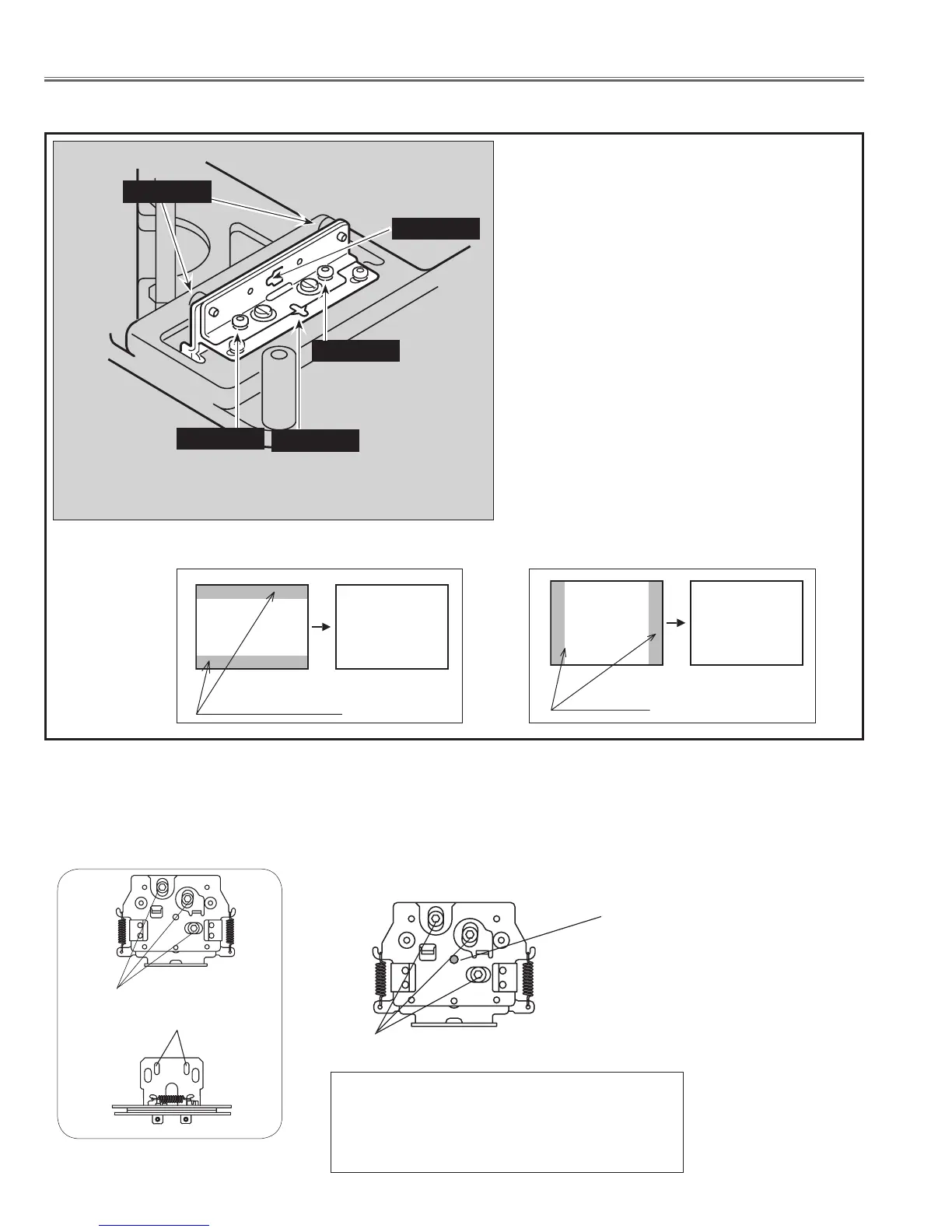

Optical adjustment
- 78 -
SLOT-C
SCREWS-B
SLOT-B
SCREW-A
SCREW-A
(6) Relay-lens adjustment
Before Adjustment :
1. Remove the flexible cables of LCD panels from the
Main board. And turn on the projector.
And input a
100% of white raster signal.
2. Polarized glass units are replaced for the
adjustmennt tools.
3. If the shade appears on the screen, adjust in the fol-
lowing procedure.
Adjustment :
1. Set the Main board to the upright position.
2. Loosen 4 screws-A.
3. If it appears on the top or bottom.---> Use slot-B.
If it appears on the left or right. -----> Use slot-C.
-- Insert slot screwdriver into each slot, turn it and
erase shade. --
4. Tighten the 4 screws-A to fix the Relay-lens unit.
5. Replace the Polarized glass unit.
(7) Convergence adjustment
When adjusting convergence of LCD panels, Convergence Adjustment Tool is needed.
(This Tool can be ordered as a service part. Part No. shown below.)
Mount Adjustment Tool on the LCD panel and adjust each panel convergence.
Convergence Adjustment Tool
the hole for the guide
The screw for the adjustment
Top View
Hole
Adjust each screw for Hole can be seen clearly through the hole.
Convergence Adjustment Tool can be ordered.
Give the following information to the dealer.
Name ; Assembly CG Adjust LCD - MT8A
Service Parts No. 910 304 8209
Screw Setting
To Next Page
