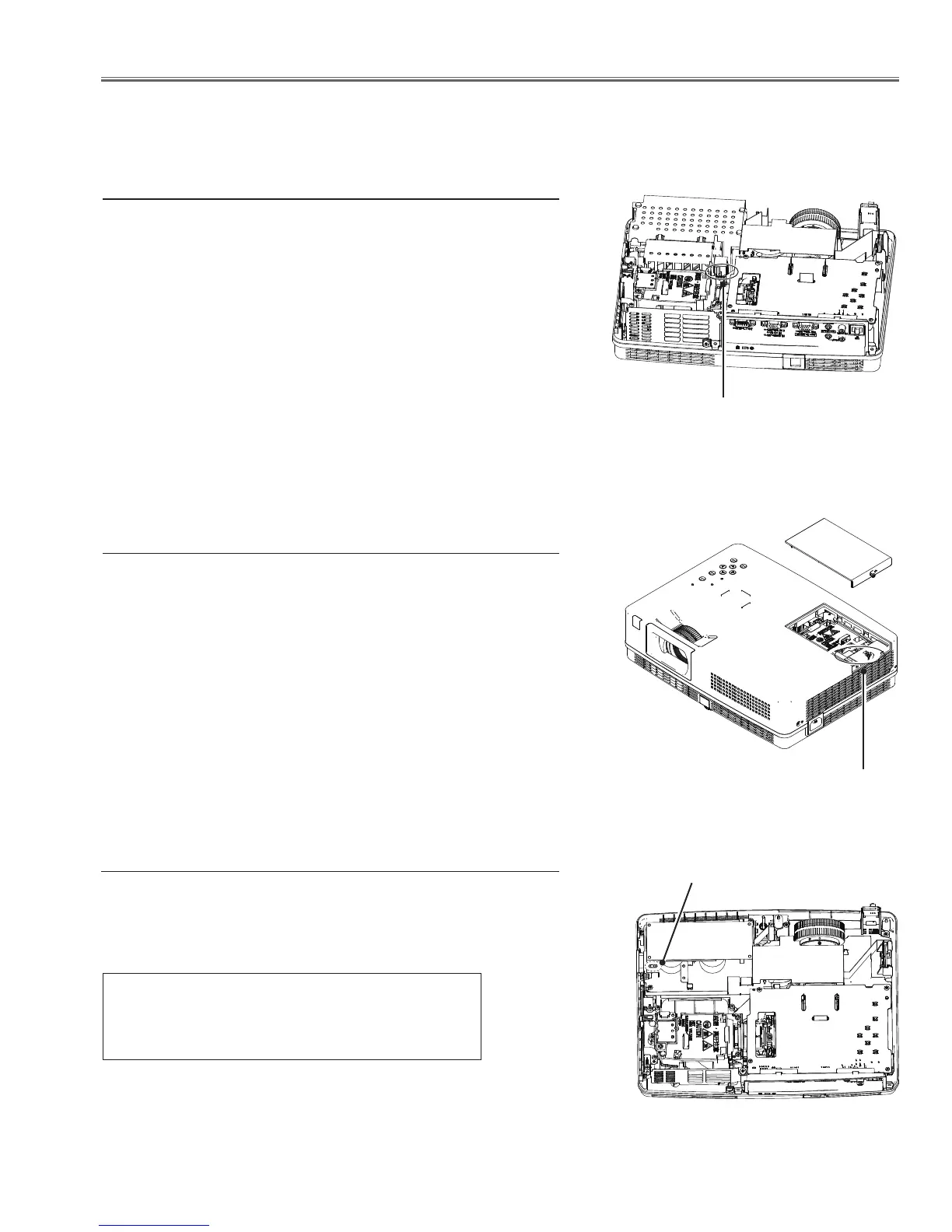

Fuse
A fuse is located inside of the projector. When the POWER indicator
is not lighting, the fuse may be opened. Check the fuse as following
steps.
The fuse should be used with the following type;
Fuse Part No.: 323 021 7804
TYPE T6.3AH 250V FUSE
LITTLE FUSE INC. TYPE 21506.3
How to replace the fuse
1. The fuse is placed on the power board. Remove the cabinet top ,
main board, optical engine and the fan(FN001).
2. Take the fuse off, and replace the new one with the specified type.
Lamp cover switch
The lamp cover switch (SW902) cuts off the drive signal to the lamp
circuit when the lamp cover is removed or not closed completely.
After opening the lamp cover for replacing the lamp ass’y, place the
lamp cover correctly otherwise the projector can not turn on.
Thermal switch
There is the thermal switch (SW601) inside of the projector to detect
the internal temperature rising abnormally. When the internal tem-
perature reaches near 85˚C, the thermal switch opens to stop the
operation of the power supply circuit.
The thermal switch can be reset itself automatically when the inter-
nal temperature becomes normal.
When the internal temperature reaches near 50˚C, the thermal
switch returns automatically.
This projector provides the following circuit protections to operate in safety. If the abnormality occurs inside the projec-
tor, it will automatically turn off by operating one of the following protection circuits.
Thermal switch (SW601)
Fuse
Circuit Protections
Lamp cover switch
(SW902)
