-66-

IC Block Diagrams

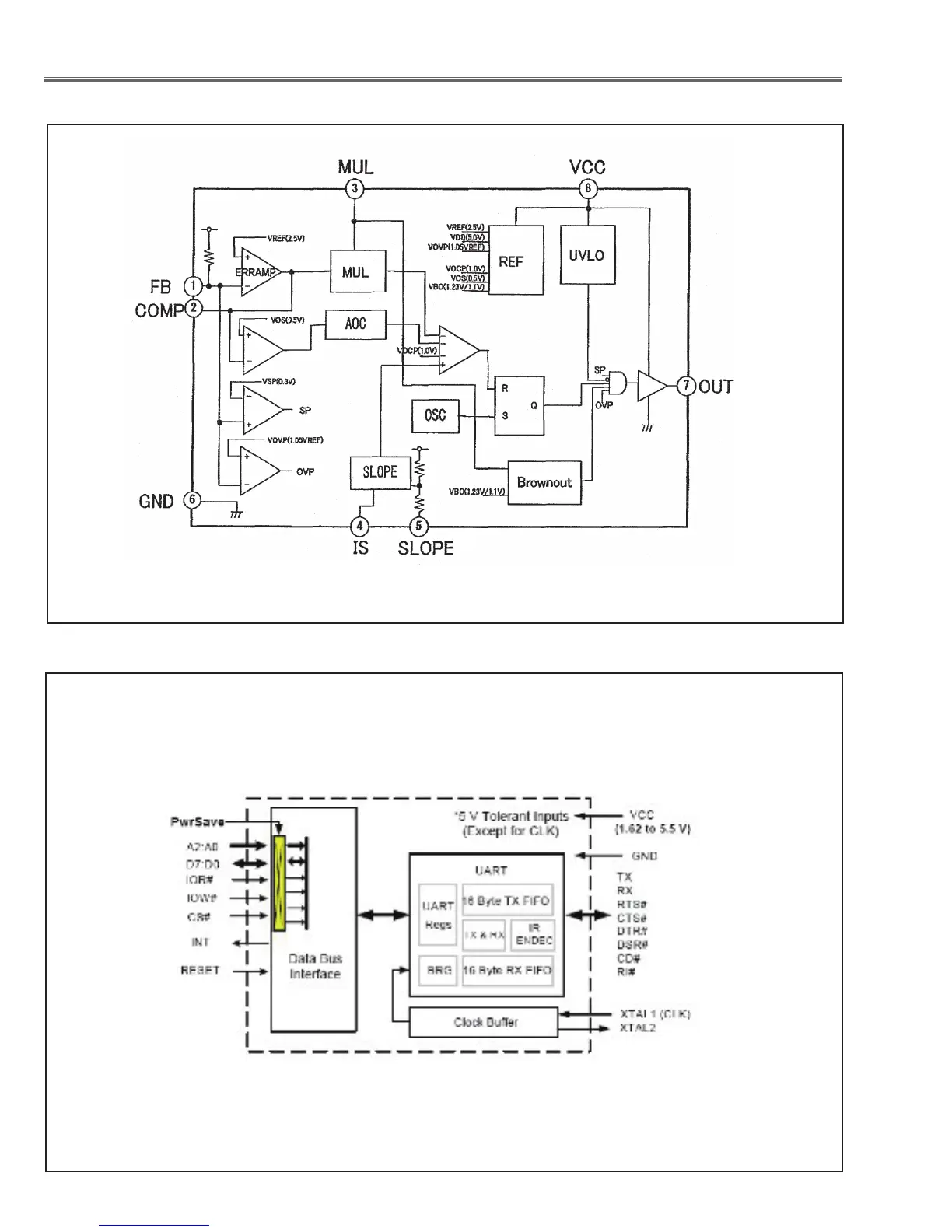

● FA5550NG <P.F. Control, IC621>

● LC87F2G08A5AN6 <UART, IC9885>

IC Block Diagrams

Service Manual1
Table of Contents2
Safety Instructions3
- Safety Precautions3
- Product Safety Notice3
- Service Personnel Warning3
Specifications4
Circuit Protections5
- Thermal Switch5
- Lamp Cover Switch5
- Fuse5
- Warning Temperature and Power Failure Protection6
Maintenance7
- Cleaning the Filters7
- Resetting the Filter Counter7
- Attaching the Lens Cap8
- Cleaning the Projection Lens8
- Lamp Replacement9
- Resetting the Lamp Counter10
- How to Check Lamp Used Time10
Security Function Notice11
- Resetting Procedure11
Mechanical Disassembly12
Optical Parts Disassembly17
Panel Type Check21
Adjustments24
- Adjustments after Parts Replacement24
Optical Adjustments25
- Contrast Adjustment26
- Condenser out Lens Adjustment27
- Relay Lens-Out Adjustment28
Electrical Adjustments29
- Service Adjustment Menu Operation29
- Memory IC (IC1371) Replacement29
- Circuit Adjustments30
  - Black Level Adjustment31
  - Common Center Adjustment33
- Test Points and Locations35
- Service Adjustment Data Table36
Chassis Block Diagrams54
- Chassis over View54
- System Control55
- Lamp Control56
- Audio Circuit57
- Power Supply & Protection Circuit58
- Fan Control Circuit59
- IIC Bus Control Circuit60
Troubleshooting61
- Indicators and Projector Condition61
- No Power62
- No Picture63
- No Sound64
Control Port Functions65
- Scaler I/O Port Functions (PW190)65
IC Block Diagrams66
Electrical Parts List71
- Electrical Parts Location72
- Electrical Parts List73
Mechanical Parts List88
- Cabinet Parts Location88
- Optical Parts Location89
- Mechanical Parts List95
Diagrams & Drawings97
Parts Description and Reading in Schematic Diagram98
Note on Soldering100
