Sanyo PLC-XR201 User Manual

Name: Sanyo PLC-XR201
Brand: Sanyo
Rating: 4 (1 reviews)

112 pages

To Next Page

To Previous Page

KR5-XR20100, KS5-XR251000

-88-

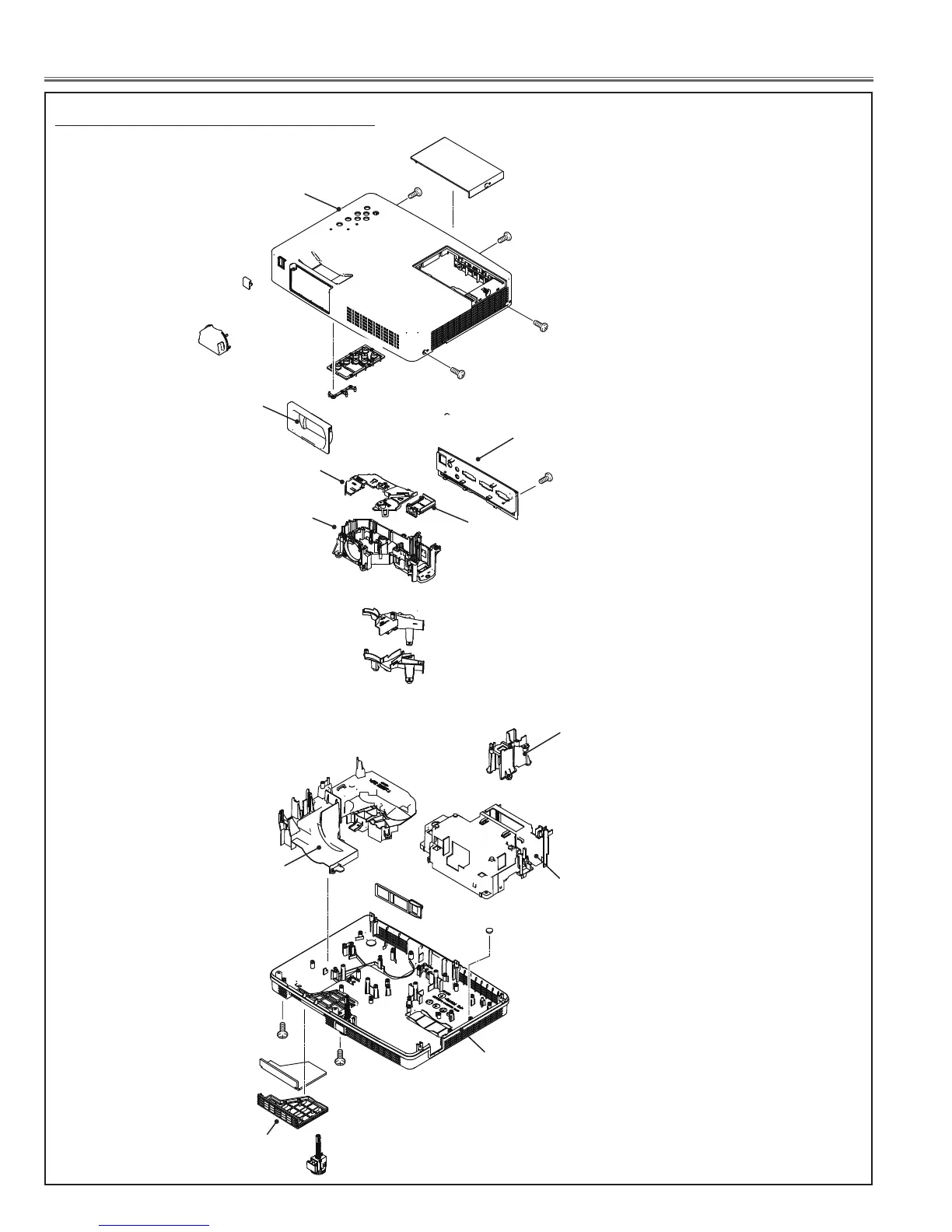

Cabinet Parts Location

Mechanical Parts List

C10

M10

M07

C03

C07

C08

C01

C02

S02

M08

C09

S01

C11

M02

M01

S02

C12

M05

M06

M11

M09

S01

C13

C04

C06

C05

S06

Service Manual1
Table of Contents2
Safety Instructions3
- Safety Precautions3
- Product Safety Notice3
- Service Personnel Warning3
Specifications4
Circuit Protections5
- Thermal Switch5
- Lamp Cover Switch5
- Fuse5
- Warning Temperature and Power Failure Protection6
Maintenance7
- Cleaning the Filters7
- Resetting the Filter Counter7
- Attaching the Lens Cap8
- Cleaning the Projection Lens8
- Lamp Replacement9
- Resetting the Lamp Counter10
- How to Check Lamp Used Time10
Security Function Notice11
- Resetting Procedure11
Mechanical Disassembly12
Optical Parts Disassembly17
Panel Type Check21
Adjustments24
- Adjustments after Parts Replacement24
Optical Adjustments25
- Contrast Adjustment26
- Condenser out Lens Adjustment27
- Relay Lens-Out Adjustment28
Electrical Adjustments29
- Service Adjustment Menu Operation29
- Memory IC (IC1371) Replacement29
- Circuit Adjustments30
  - Black Level Adjustment31
  - Common Center Adjustment33
- Test Points and Locations35
- Service Adjustment Data Table36
Chassis Block Diagrams54
- Chassis over View54
- System Control55
- Lamp Control56
- Audio Circuit57
- Power Supply & Protection Circuit58
- Fan Control Circuit59
- IIC Bus Control Circuit60
Troubleshooting61
- Indicators and Projector Condition61
- No Power62
- No Picture63
- No Sound64
Control Port Functions65
- Scaler I/O Port Functions (PW190)65
IC Block Diagrams66
Electrical Parts List71
- Electrical Parts Location72
- Electrical Parts List73
Mechanical Parts List88
- Cabinet Parts Location88
- Optical Parts Location89
- Mechanical Parts List95
Diagrams & Drawings97
Parts Description and Reading in Schematic Diagram98
Note on Soldering100
