-45-
Optical Parts Disassembly
13
14
10
12
11
2
1
9
8
6
4
3
5
12
7

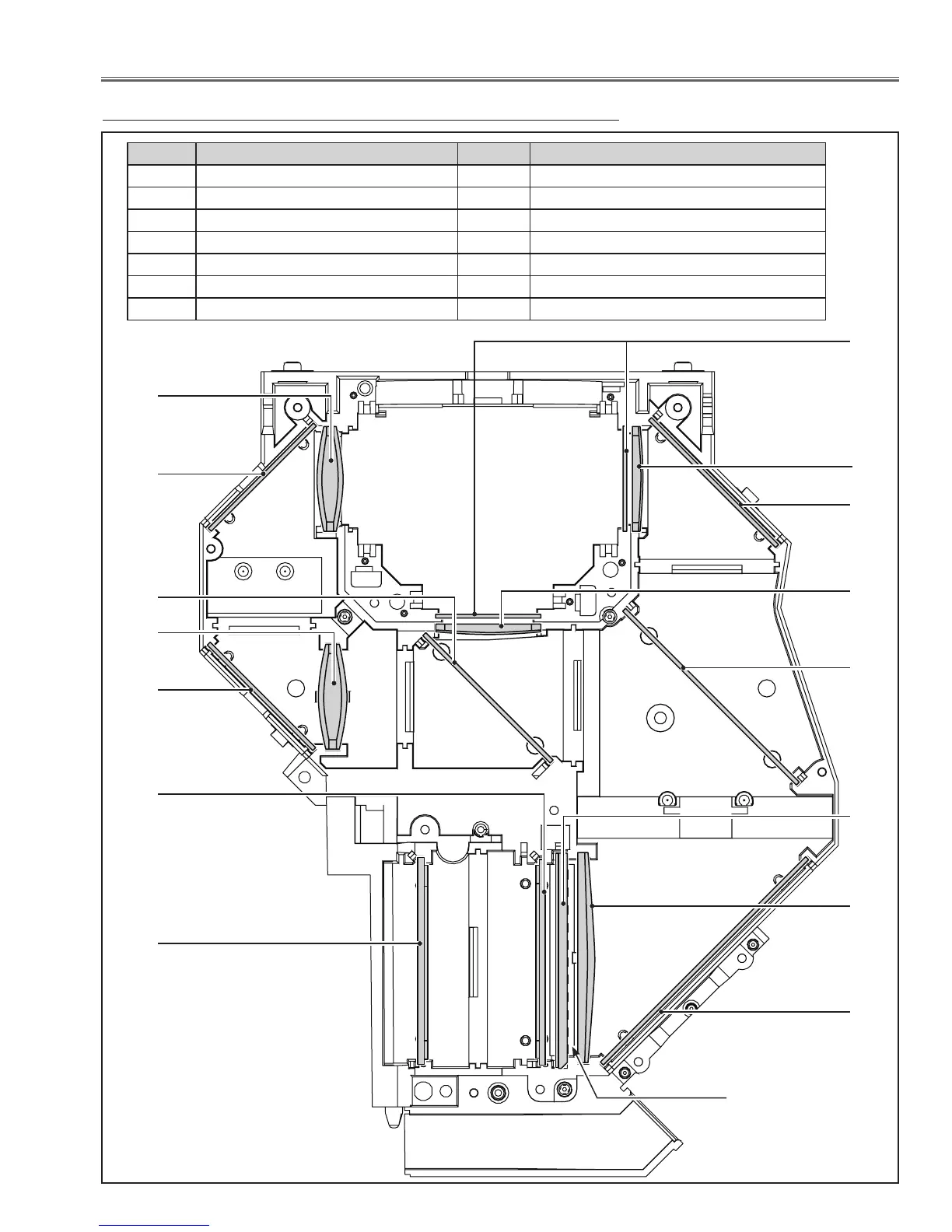

Optical parts locations and directions in the Optical Unit
No. Parts Name No. Parts Name
1 LENS,INTEGRATOR(IN) 8 MIRROR(B)
2 LENS,INTEGRATOR(OUT) 9 LENS,CONDENSER(B)
3 ASSY,PRISM(PBS) 10 PREPOLARIZED GLASS(IN)
4 LENS,CONDENSER(IN) 11 LENS,CONDENSER(R)
5 MIRROR(W-COLD) 12 MIRROR(R)
6 DICHROIC MIRROR (B) 13 DICHROIC MIRROR (G)
7 LENS,CONDENSER(G) 14 LENS,RELAY(IN)
Shield Plate
To Next Page
