-57-
Optical Adjustment

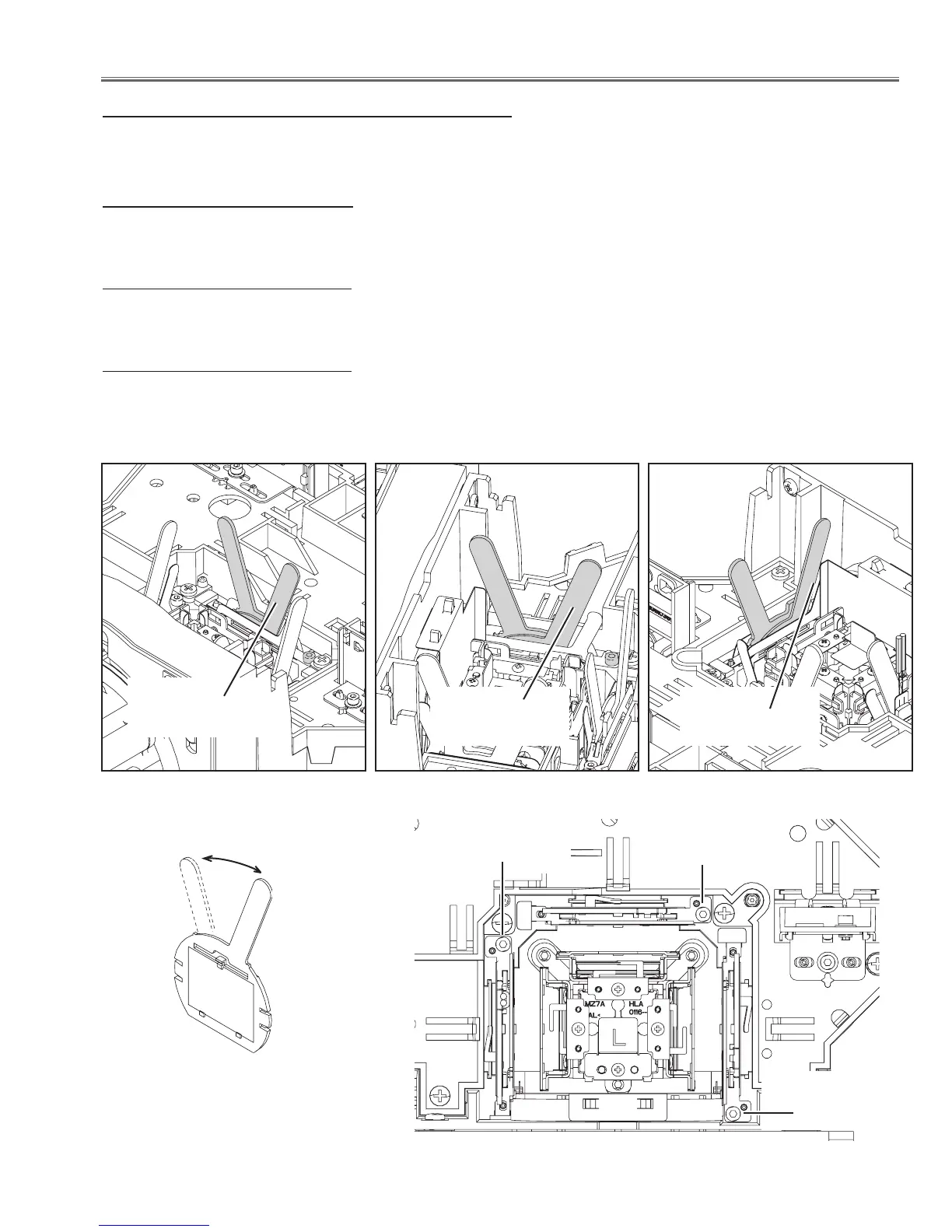

3. Contrast adjustment (WV)
[ Before Adjustment ]
- Input a 100% of black raster signal.
G-Contrast adjustment (WV)
1. Adjust the lever R (WV) to obtain the darkest brightness on the screen.
2. Tighten the screw J.
B-Contrast adjustment (WV)
1. Adjust the lever S (WV) to obtain the darkest brightness on the screen.
2. Tighten the screw L.
R-Contrast adjustment (WV)
1. Adjust the lever T (WV) to obtain the darkest brightness on the screen.
2. Tighten the screw N.
Screw-N
Screw-J
Screw-L
Lever-R, S, T
Optical filter unit (R, G, B)
Lever-R
Lever-S Lever-T
To Next Page
