32.8’ (10.0 m)
22.0’ (6.7 m)
16.4’ (5.0 m)
10.8’ (3.3 m)
Max. Zoom
Min. Zoom
A : B = 9 : 1
Screen Size
(W x H) mm
4 : 3 aspect ratio
Zoom (min)
40”
Zoom (max)
813 x 610
5.2’ (1.6m)
4.3’ (1.3m)
100”
2032 x 1524
13.1’ (4.0 m)
10.8’ (3.3 m)
150”
3048 x 2286
20.0’ (6.1 m)
16.4’ (5.0 m)
200”
4064 x 3048
26.6’ (8.1 m)
22.0’ (6.7 m)
300”
6096 x 4572
––––
32.8’ (10.0 m)
(Inch Diagonal)
4.3’ (1.3 m)
(Center)

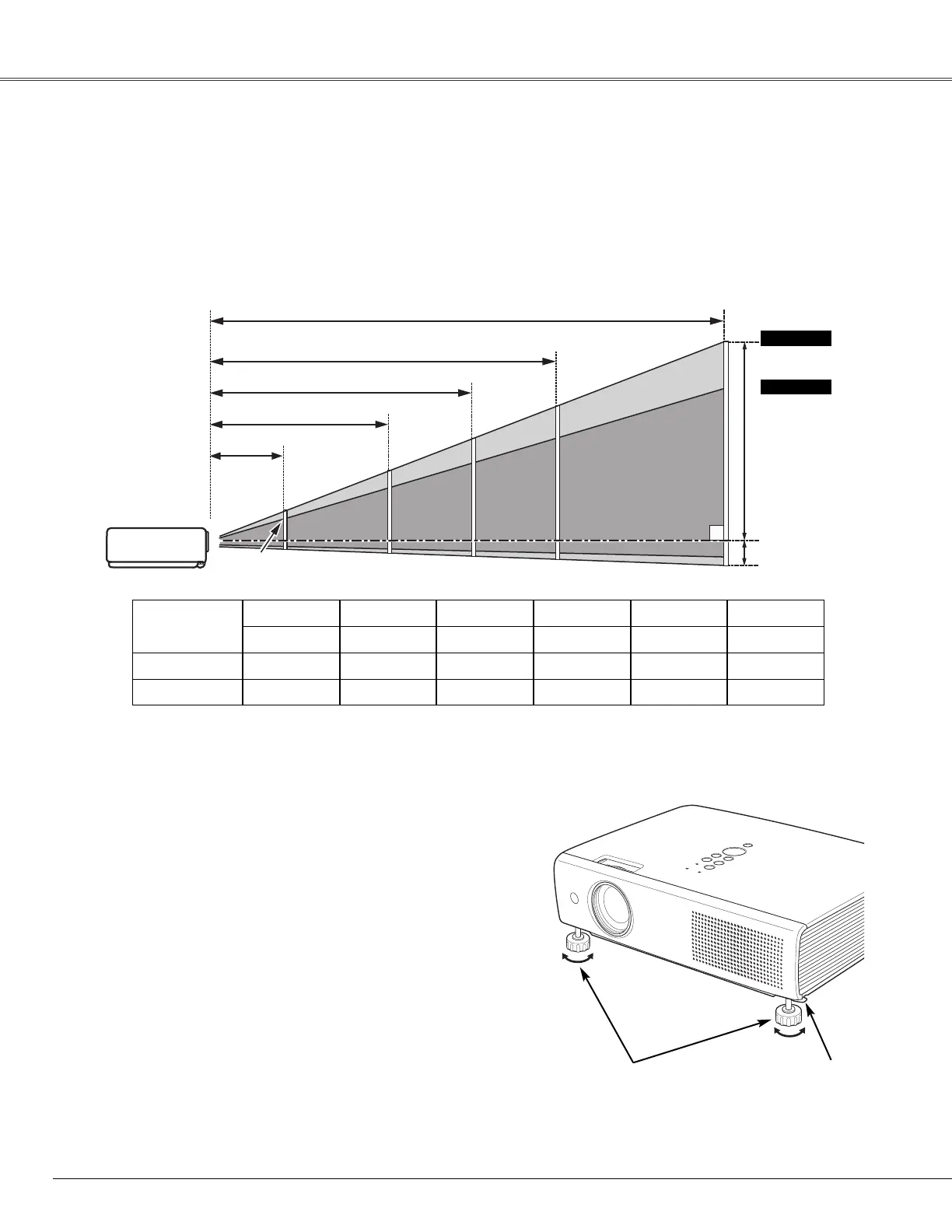

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.
✔Notes:
•The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain
the best image.
•All measurements are approximate and may vary from the actual sizes.
33”
671 x 503
4.3’ (1.3 m)
––––
Adjustable Feet
Feet Lock Latches
Adjustable Feet
Projection angle can be adjusted up to approx. 9 degrees
with the adjustable feet.
Lift the front of the projector and pull the feet lock latches
on both side of the projector upward.
Release the feet lock latches to lock the adjustable feet and
rotate the adjustable feet to a proper height, and tilt.
Keystone distortion can be adjusted manually by using the
remote control or the menu operation (see pages 24, 42).
Positioning the Projector
Installation
