Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in
severe accident or fire hazard.

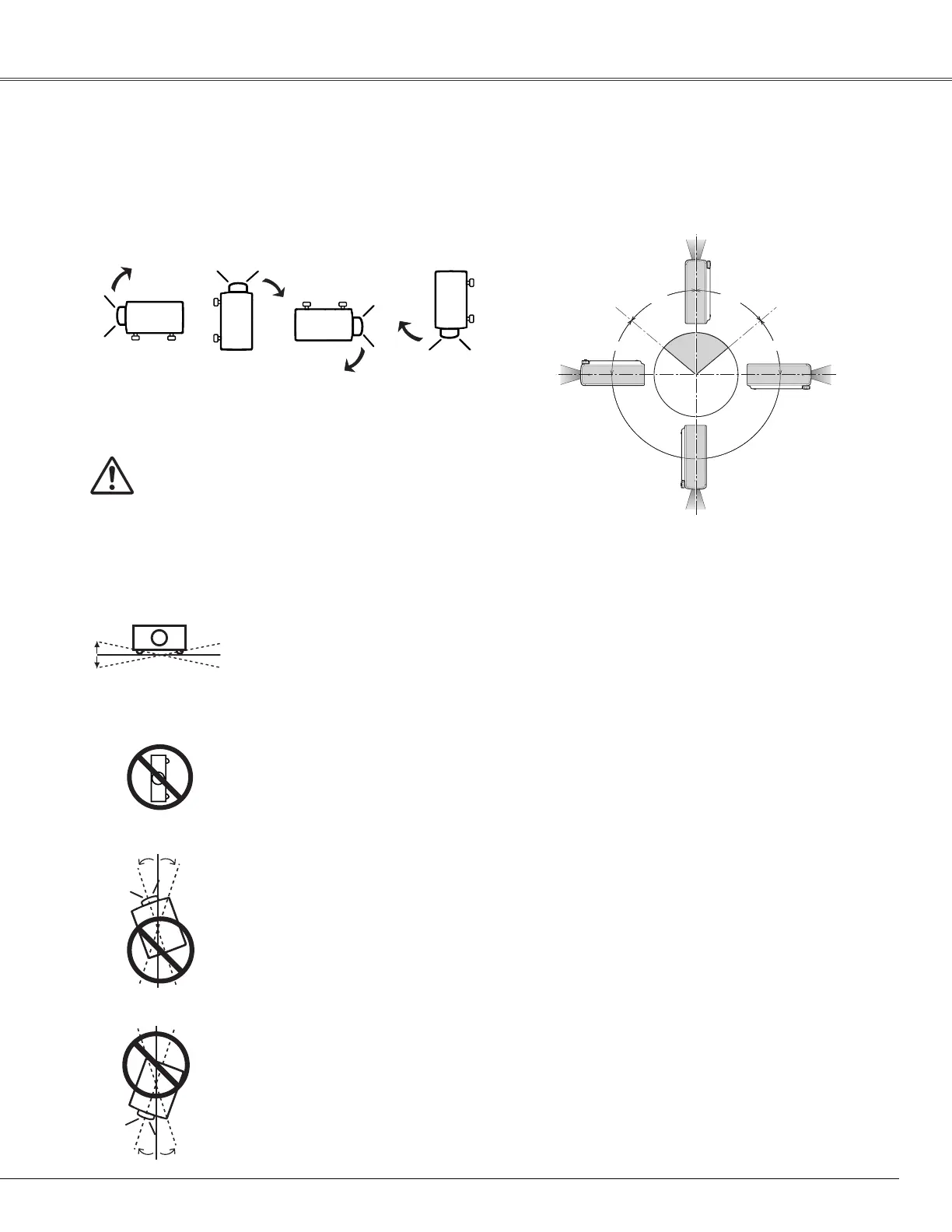

This projector can project the picture upward, downward, or backward, perpendicular to the plane of the screen
as shown in the figure below.
Bottom
Downward
(Usual)
Front
Downward
Bottom
Upward
Front
Upward
Installing the Projector in Proper Directions
Avoid positioning the projector as described below when installing.
Positioning Precautions
Do not tilt the projector more than 10 degrees from side to side.
Do not put the projector on either side to project an image.
10˚
10˚
10˚ 10˚
10˚
10˚
In upward projection, do not tilt the projector over 10 degrees right and left.
In downward projection, do not tilt the projector over 10 degrees right and left.
Safety Instructions
Fan Control
"Max"
Fan Control
"Normal"
0º
180º
40º
50º50º
40º
Be sure to set the Fan control in MAX in the setting menu when
the projector is inclined between +40 degrees to +140 degrees
to the horizontal plane (p.49).

Sanyo PLC-XU101 Specifications

General

Matrix size	0.8 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	33 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Output	D-Sub15 x 1
Video in	RCA x 1
Audio input	Yes
Aspect ratio	4:3
Dimensions (WxDxH)	334 x 232 x 78 mm
Connectivity technology	Wired
Lamp power	275 W
Light source type	Lamp
Noise level	29 dB
Dot clock scanning frequency	140 MHz
Audio (L/R) in	2
Headphone outputs	1
Display resolution	786 x 432 pixels
Power consumption (typical)	385 W

Weight and Dimensions

Weight	3500 g
