Video Input
Press the Point 7 8 buttons
to adjust the value.
Press the MENU button to display the On-Screen
Menu. Press the Point
7 8 buttons to move the red
frame pointer to the Image Adjust Menu icon.
1
2
Use the Point ed buttons to move the red frame
pointer to the desired item and then press the SELECT
button to display the adjustment dialog box. Use the
Point 7 8 buttons to adjust the setting value.

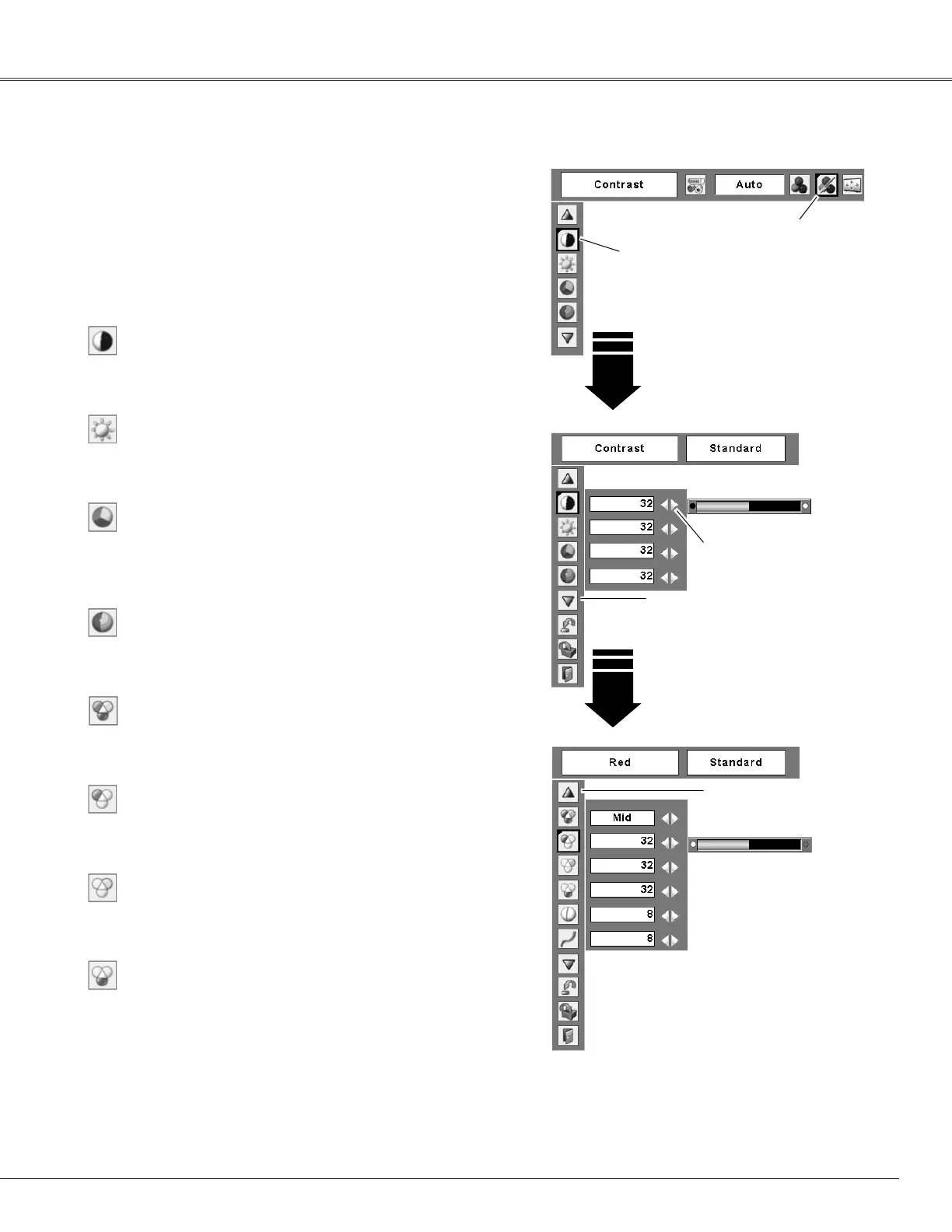

Move the red frame
pointer to the item you
want to adjust and then
press the SELECT button.
Image Adjust Menu
Press the SELECT button
at this item to display other
items.
Image Adjust Menu icon
Press the SELECT
button at this item to
display previous items.
✔
Notes:
•The Tint cannot be selected when the video system is PAL, SECAM,
PAL-M, or PAL-N.
•When the White balance Red, Green, or Blue is adjusted, the Color
temp. level will change to “Adj.”.
Image Adjustment
Press the Point 7 button to decrease the contrast; press
the Point 8 button to increase the contrast (from 0 to 63).
Press the Point 7 button to decrease the brightness; press
the Point 8 button to increase the brightness (from 0 to 63).
Contrast
Brightness
Press the Point 7 button to lighten red tone; press the
Point 8 button to deepen red tone (from 0 to 63).
White balance (Red)
Press the Point 7 button to lighten green tone; press the
Point 8 button to deepen green tone (from 0 to 63).
White balance (Green)
Press the Point 7 button to lighten blue tone; press the
Point 8 button to deepen blue tone (from 0 to 63).
White balance (Blue)
Use the Point 7 8 buttons to select the desired Color temp.
level (High, Mid, Low, or XLow).
Color temp.
Press the Point 7 button decrease the intensity of the
color; press the Point 8 button increase the intensity of the
color (from 0 to 63).
Press the Point 7 8 buttons to adjust the tint value to get a
proper color balance (from 0 to 63).
Color
Tint

Sanyo PLC-XU101 Specifications

General

Matrix size	0.8 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	33 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Output	D-Sub15 x 1
Video in	RCA x 1
Audio input	Yes
Aspect ratio	4:3
Dimensions (WxDxH)	334 x 232 x 78 mm
Connectivity technology	Wired
Lamp power	275 W
Light source type	Lamp
Noise level	29 dB
Dot clock scanning frequency	140 MHz
Audio (L/R) in	2
Headphone outputs	1
Display resolution	786 x 432 pixels
Power consumption (typical)	385 W

Weight and Dimensions

Weight	3500 g
