Computer Input
Store
Exit the Image Adjust Menu.
Quit
To store the adjusted data, select Store and press the
SELECT button. Use the Point ed buttons to select one
from Image 1 to 4 and press the SELECT button.
A confirmation box appears and then select [Yes]. Stored
data can be called up by selecting "Image (1-4)" in the Image
Select Menu on page 31.
This projector has the picture screen resize function, which enables you to customize the image size.

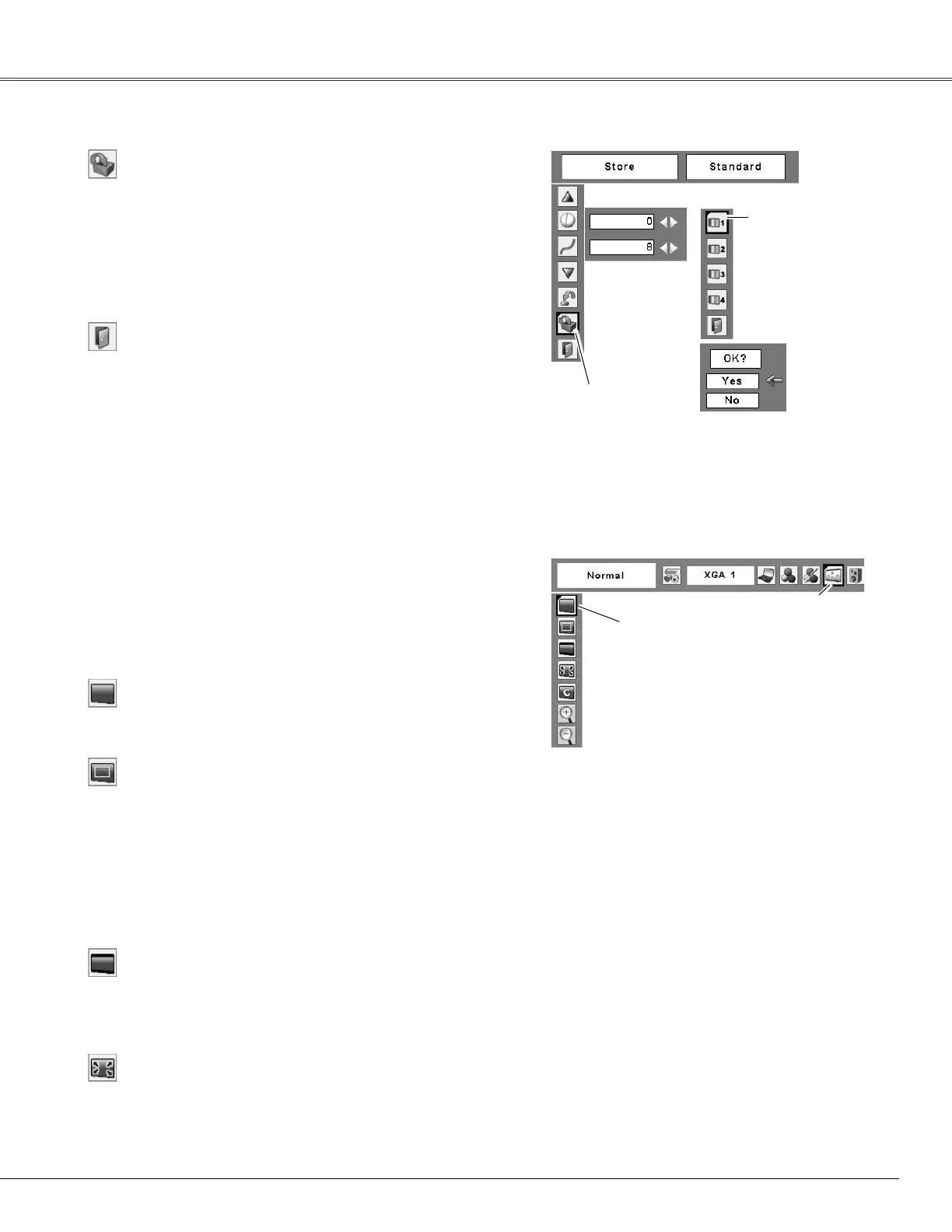

Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
frame pointer to the Screen Menu icon.
1
Move the red frame pointer
to the function and press
the SELECT button.
Use the Point ed buttons to move the red frame
pointer to the desired function and then press the
SELECT button.
2
Screen Menu
Screen Menu icon
Screen Size Adjustment
Wide
Provide the image to fit the screen size.
Normal
True
Provide the image in its original size. When the original
image size is larger than the screen size (1024 x 768), the
projector enters panning mode automatically. Pan the
image with Point ed
7 8 buttons. When adjusted, the
arrows will turn red. When reached to the correction limit,
the arrows will disappear.
Provide the image to fit wide video aspect ratio (16 : 9) by
expanding the image width uniformly. This function can be
used for providing a squeezed video signal at 16 : 9.
Full screen
Provide the full screen image.
✔
Notes:
• The Screen Menu, except for "Normal" and
"Custom", cannot be operated when 720p,
1035i, or 1080i is selected in the PC System
Menu (p.27).
• The projector cannot display any resolution
higher than 1600 X 1200. If your computer’s
screen resolution is higher than it, reset the
resolution to the lower before connecting to the
projector.
•The image data other than 1024 x 768 is
modified to fit the screen size in initial mode.
• True, Full screen, and Digital zoom +/– cannot
be selected when 480i, 575i, 480p, or 575p is
selected in the PC System Menu (p.27).
Store icon
Image Mode Menu
Move the red frame
pointer to an image
item to be set and
then press the
SELECT button.
A confirmation
box appears
and then select
[Yes]

Sanyo PLC-XU101 Specifications

General

Matrix size	0.8 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	33 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Output	D-Sub15 x 1
Video in	RCA x 1
Audio input	Yes
Aspect ratio	4:3
Dimensions (WxDxH)	334 x 232 x 78 mm
Connectivity technology	Wired
Lamp power	275 W
Light source type	Lamp
Noise level	29 dB
Dot clock scanning frequency	140 MHz
Audio (L/R) in	2
Headphone outputs	1
Display resolution	786 x 432 pixels
Power consumption (typical)	385 W

Weight and Dimensions

Weight	3500 g
