Sharp LC-32LB261U User Manual

16
LC-32LB261U Sharp 32" LED TV

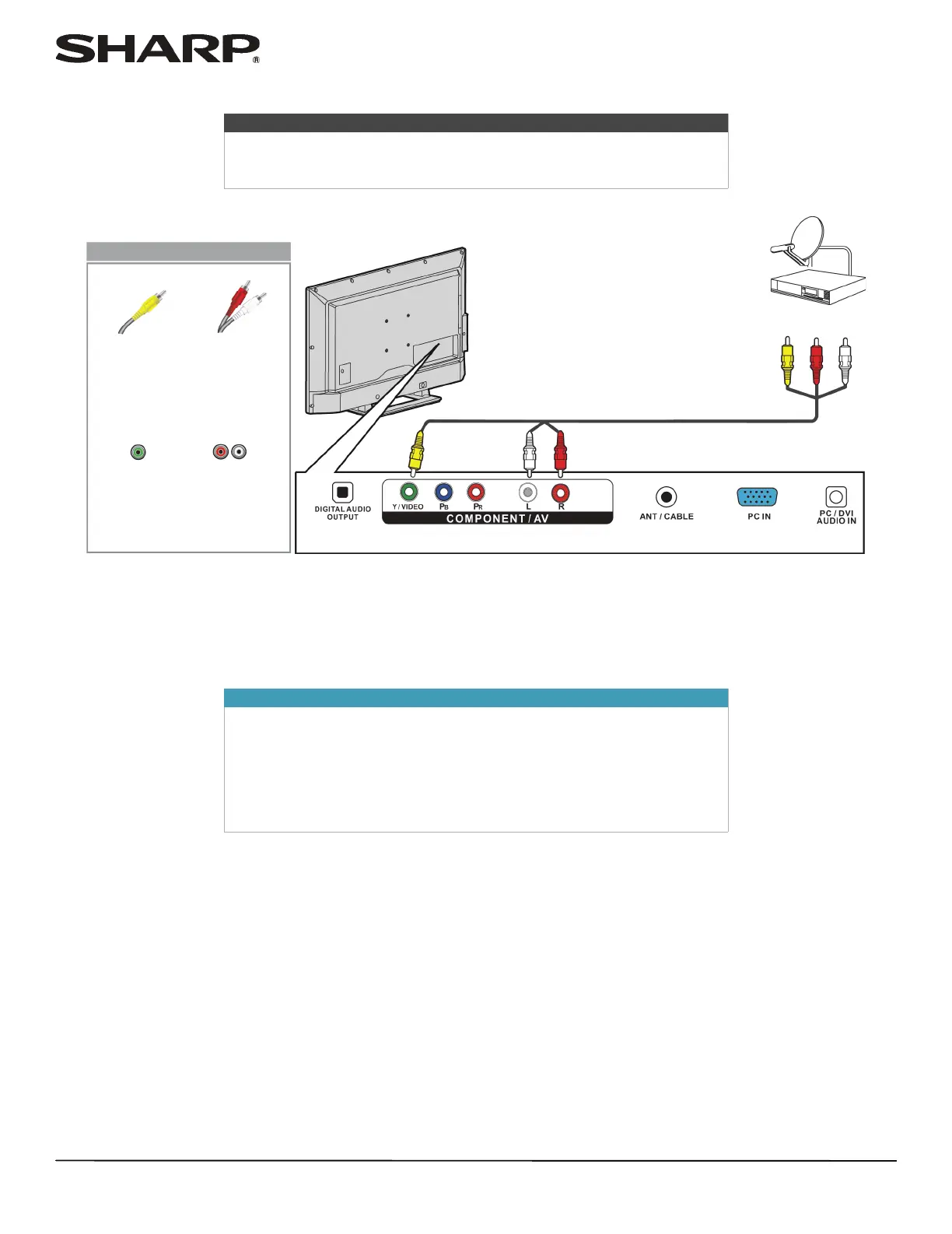

AV (composite video) (good)
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the Y/VIDEO jack and L and R audio jacks on the back of your TV and to the AV
and audio out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
Y/VIDEO jack.
Important
•The Y/VIDEO, P
B, and PR video jacks (used to connect a component
video device) share the L and R audio jacks with the Y/VIDEO jack (used
to connect an AV device). You can only connect one component video
or AV device at a time. We suggest upgrading to HDMI if your DVD or
Blu-ray player supports it.
• When you connect the audio using the L and R audio jacks, the audio
output is analog.
Cable or
satellite box
AV cable
Back of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
On your TV

Sharp LC-32LB261U Specifications

General

Screen Type	led
Wall Mount	100mm x 100mm
Screen Size	31.5 inches, 32 inches
Refresh Rate	60hz
Brightness	180 candela per square meter
Speakers Output	10 watts
USB Ports	1
RF Antenna	yes
Headphones Output	yes
Digital Optical Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	1
3D	no
Power Consumption	81 kilowatt hours
Depth with Stand	6.5 inches
Height with Stand	18.38 inches
Width with Stand	28.63 inches
Net Weight with Stand	11.3 pounds
Depth without Stand	2.5 inches
Height without Stand	17.13 inches
Net Weight without Stand	10.6 pounds
