861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 111/214
Installation
24.2 Installation of voltage transformers type 4MU4 on the busbar
➭ Isolate and earth the busbar.
➭ Verify safe isolation from supply.
➭ Only for first installation: Remove protective cap.
➭ Remove the surge-proof dummy plug from the inside-cone bushing.
To do this, undo the three M8 hexagon socket head bolts and remove the dummy plug.

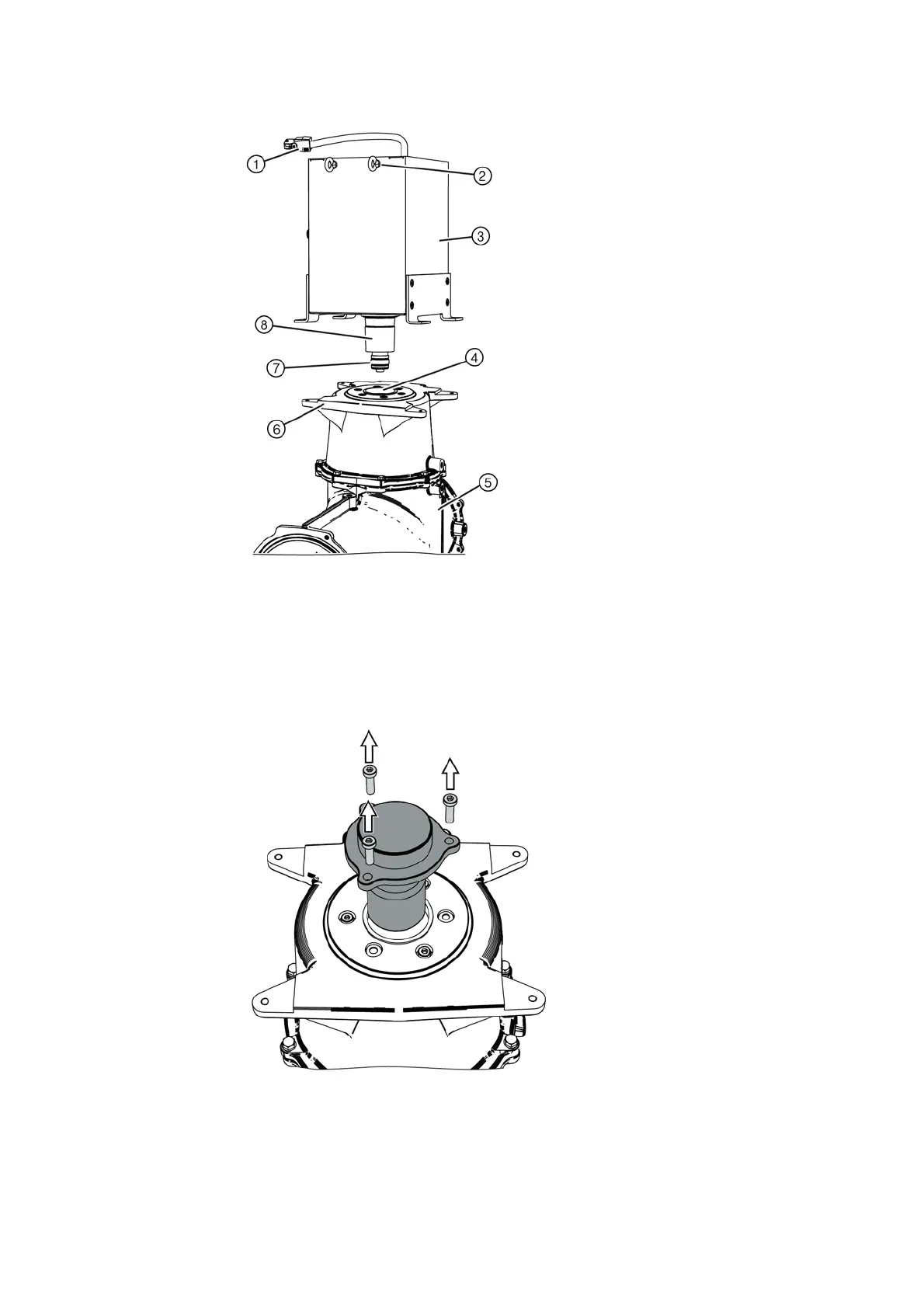

Fig. 124: Busbar voltage transformer
①
Low-voltage plug connector
②
Crane eye
③
Voltage transformer
④
Inside-cone bushing
⑤
Busbar housing
⑥
Voltage transformer mounting plate
⑦
Primary terminal at the voltage
transformer
⑧
Silicone adapter
Fig. 125: Removing the dummy plug
①
M8 bolts
