861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 13/214
Description
6.4 Examples for panel versions

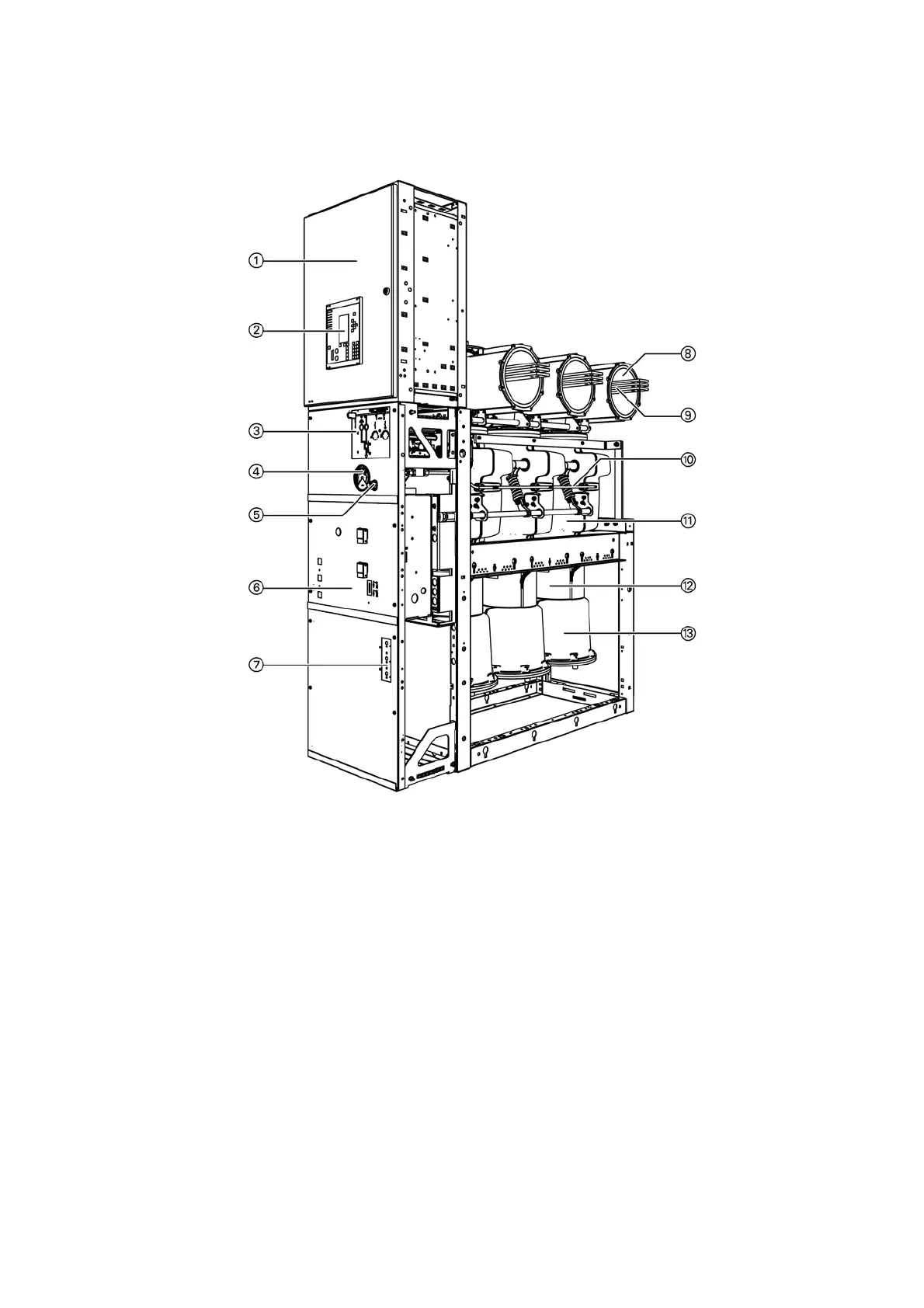

Circuit-breaker panel up to 3150 A with fan
①
Low-voltage compartment
②
SIPROTEC bay controller (option)
③
Operating mechanism for three-position disconnector
④
Gas pressure manometer for switchpanel pole housing
⑤
Gas filling valve
⑥
Circuit-breaker operating mechanism
⑦
Capacitive voltage detecting system
⑧
Busbar housing
⑨
Busbars
⑩
Gas pipe
⑪
Switchpanel pole housing with vacuum interrupter
⑫
Current transformer 4MC4
⑬
Panel connection housing with inside-cone bushings for cable plugs, voltage
transformers and surge arresters, or for connection of bar systems
