861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 153/214
Operation
34.3 Operating tools
The operating levers for the three-position disconnector functions DISCONNECTING and
READY-TO-EARTH have a slot and a nose, which are arranged in such a way that the levers can
only be used for their respective function. The emergency operating lever only has a slot and
may exclusively be used as described (see page 187, "Emergency operation of the three-
position disconnector").

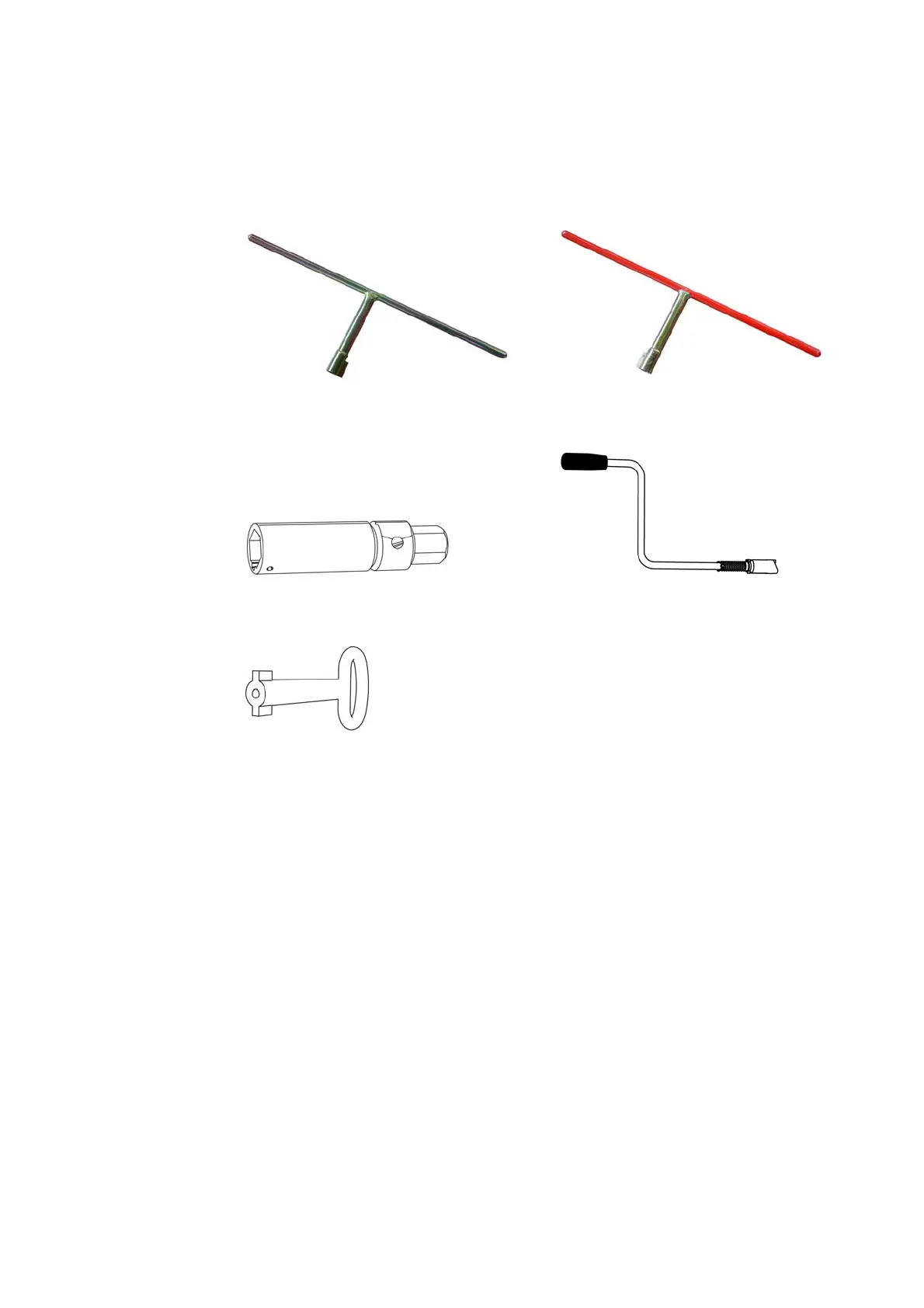

Fig. 185: Operating lever for
DISCONNECTING function
Fig. 186: Operating lever for
READY-TO-EARTH function
(cross bar marked red)
Fig. 187: Adapter for emergency operation
(to be used only with motor operating
mechanism)
Fig. 188: Hand crank for charging
the closing spring
Fig. 189: Double-bit key 3 mm
(door of low-voltage compartment)
