861-9601.9 • INSTALLATION AND OPERATING INSTRUCTIONS • 8DA10 • Revision 11 45/214
Installation
18.3 Transport units
Dimensions
Center of gravity The position of the center of gravity can vary depending on the switchgear design.
In the following construction, the center of gravity is located at the marked position:

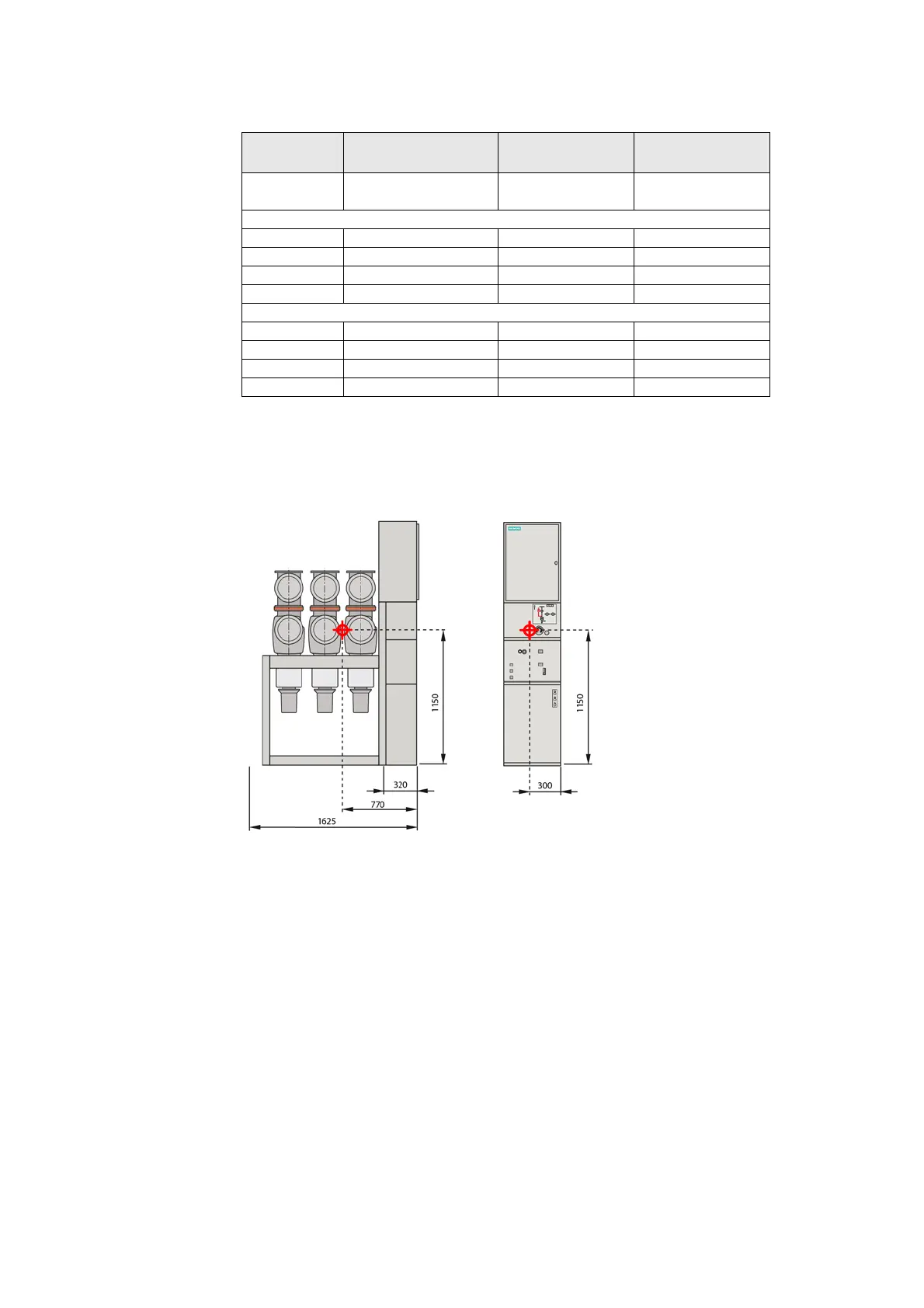

Fig. 29: Position of the center of gravity (depending on the switchgear version)
Panel widths Transport dimensions Transport weight with
packing
1
1
Average values based on standard base frame with 850 mm low-voltage
compartment depending on the degree to which panels are equipped
Transport weight
without packing
1
mm Width x Height x Depth
mm x mm x mm
approx. kg approx. kg
Means of transport: Truck
1 x 600 1370 x 2550 x 1888 850 750
2 x 600 1764 x 2550 x 1870 1700 1500
3 x 600 2400 x 2550 x 1870 2550 2250
4 x 600 2964 x 2550 x 1870 3400 3000
Means of transport: Ship and airplane
1 x 600 1388 x 2700 x 1888 850 750
2 x 600 1764 x 2700 x 1888 1700 1500
3 x 600 2400 x 2700 x 1888 2550 2250
4 x 600 2964 x 2700 x 1888 3400 3000
