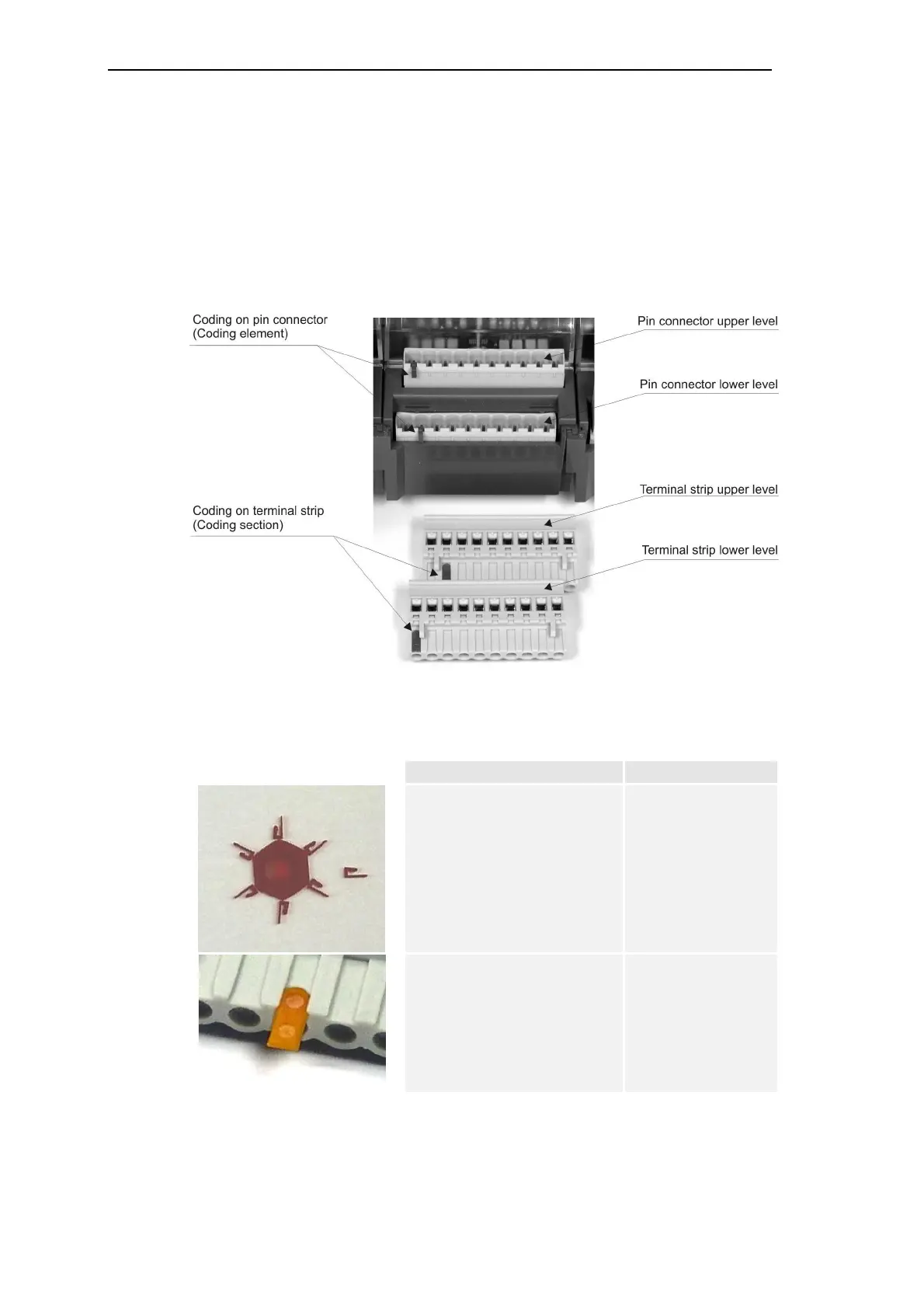

11.6. Terminal Coding
In order to prevent terminal strips of the lower level of a module (terminal labeling: 1-10 and
31-40) from being interchanged with those of the upper level of the same module (terminal
labeling: 11-20 and 21-30), terminals and male connectors are provided with a mechanical
coding.
A coding that prevents terminal strips of one module from being interchanged with those of
another module can be realized with this method of coding, but is however not carried out at
works.
Designation Item Number/ MLFB
PHOENIX CR-MSTB/ Coding
Element 6 pces
PHO+1734401
Coding section for terminal strip TC6-055
6MF13130GA550AA0
