Siemens SICAM TM User Manual

Parameter Setting Preparation
SICAM TM, Installation 109
DC6-015-2.04, Ausgabedatum 10.2014
12.3. Logical Connection between SICAM TOOLBOX II and
SICAM TM

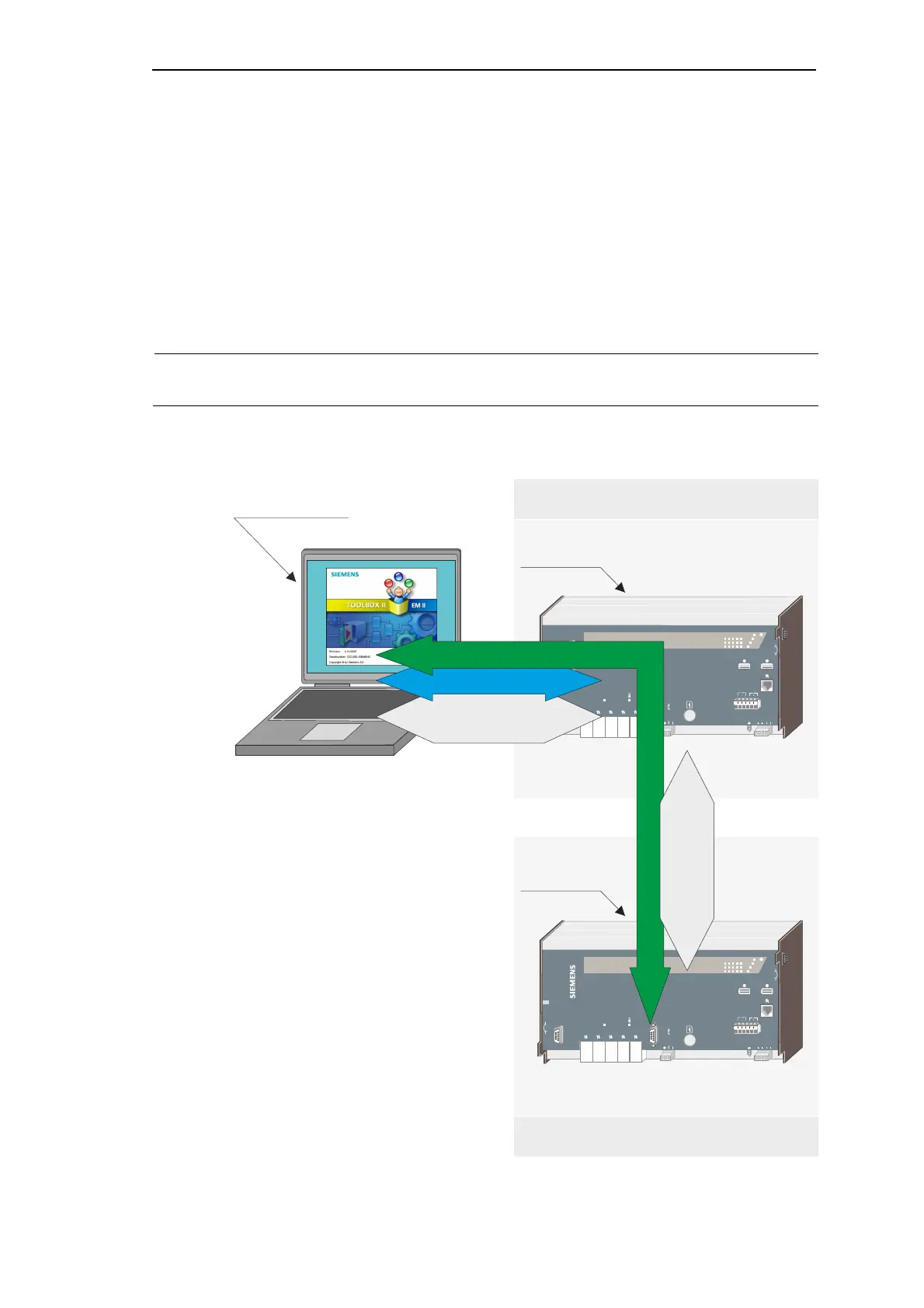

For engineering there must be a logical connection to those automation unit, which is subject
of engineering. Following two cases are differentiated:
· Engineering of a local automation unit
(that is that one, to which an physical connection exists)
Attention
A first initialization of the automation unit is only possible in this way.
· Engineering of a remote automation unit
(automation unit, which can be accessed via a local automation unit; a continuous remote
communication according to IEC 60870-5-101 or -104 is required)
SICAM TM 1703 ACP CP- 6014
