Siemens SICAM TM User Manual

Assembly
SICAM TM, Installation 35
DC6-015-2.04, Edition 10.2014
3.6. Installation of Bus Interface Modules
3.6.1. Optical Ax Bus
Designation Item Number/ MLFB
CM-0842 Ax 1703-Businterface 4x
fiber optical
GA0-842
6MF11110AJ420AA0

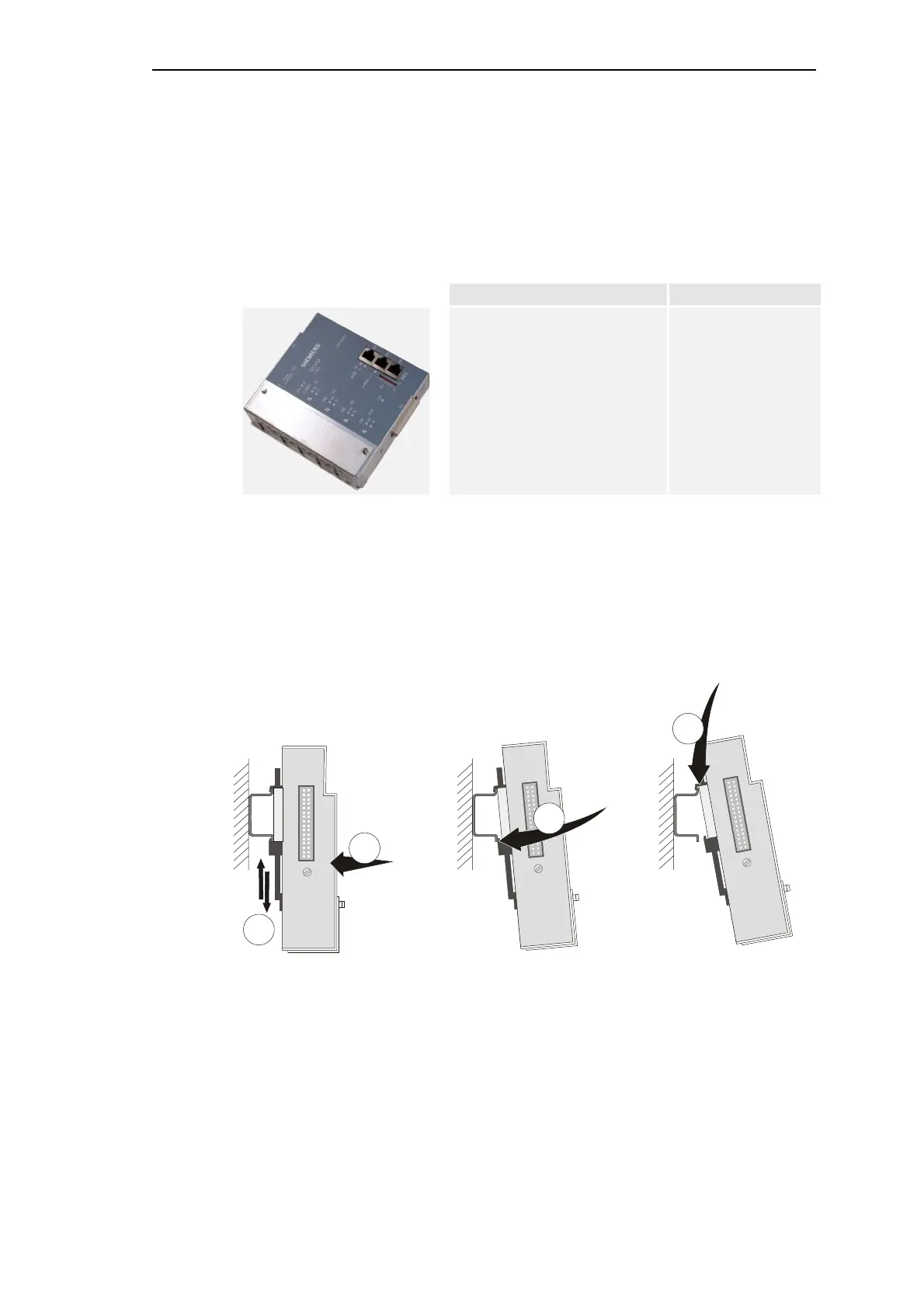

The optical Ax Bus Interface Module can be installed on the TS35 rail by hand, without any
tools.
To do this, the module is engaged in a slanted position with the carrier rail retainer in the
upper edge of the TS35 rail . One then turns the housing until the carrier rail retainer also
has contact with the lower edge of the rail . By pressing on the housing  the retainer
opens a little  and the housing snaps into the guide.
2
3
4
1
