Siemens SICAM TM User Manual

Wiring for the Reception of Time Signals
SICAM TM, Installation 63
DC6-015-2.04, Edition 10.2014
5.2. GPS Satellite Receiver
The GPS164 satellite receiver offers a minute pulse and a serial time signal. The settings are
made with software GPSMON32. This software is delivered with the GPS164 receiver.

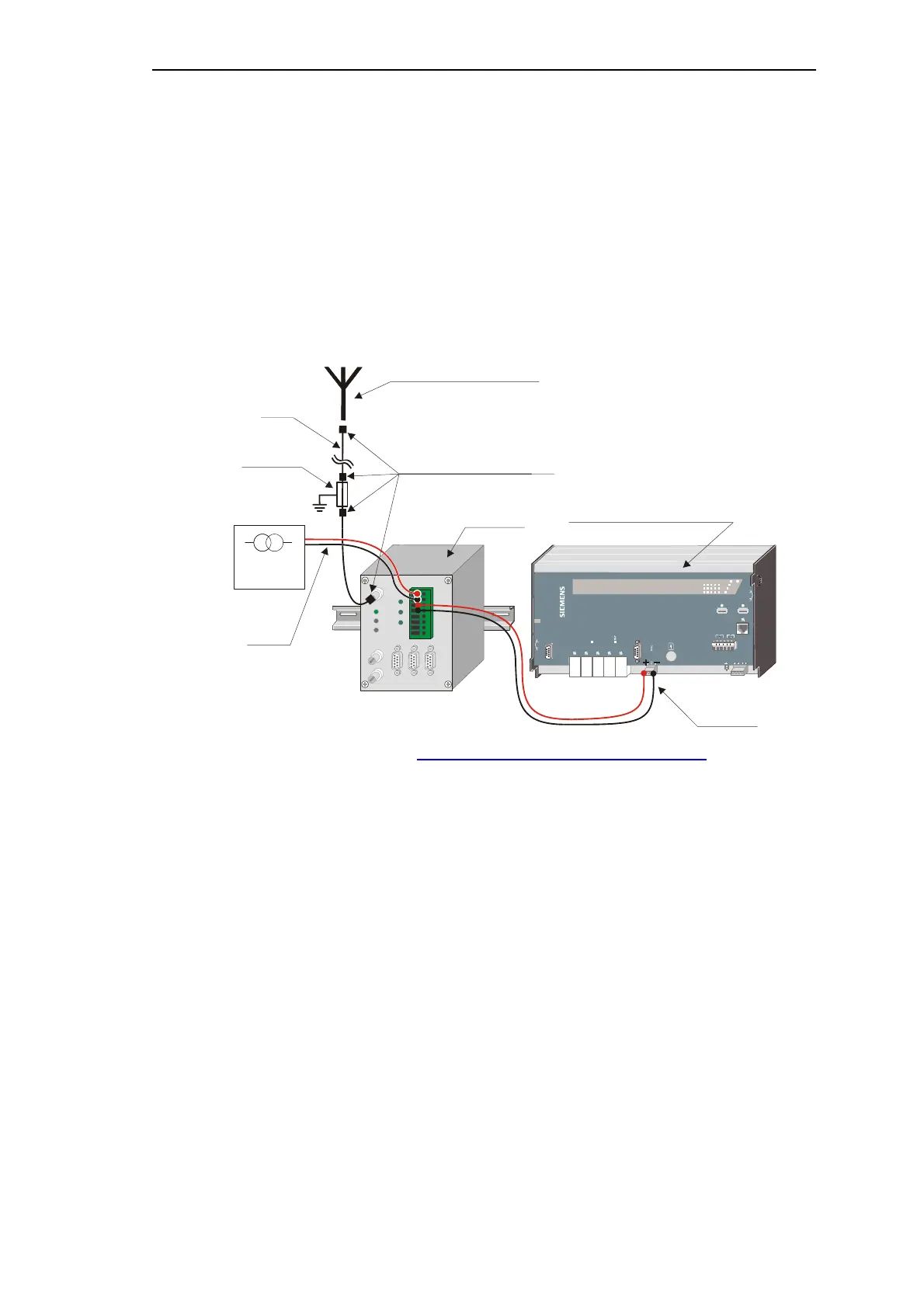

5.2.1. Wiring for the receipt of the minute pulse
The minute pulse is supplied on the screw terminal on the front panel of the GPS164 receiver.
Accessories see Appendix A, Recommended and tested purchased products
