Assembly
32 SICAM TM, Installation
Edition 10.2014, DC6-015-2.04
3.5. Installation of Master Control Element

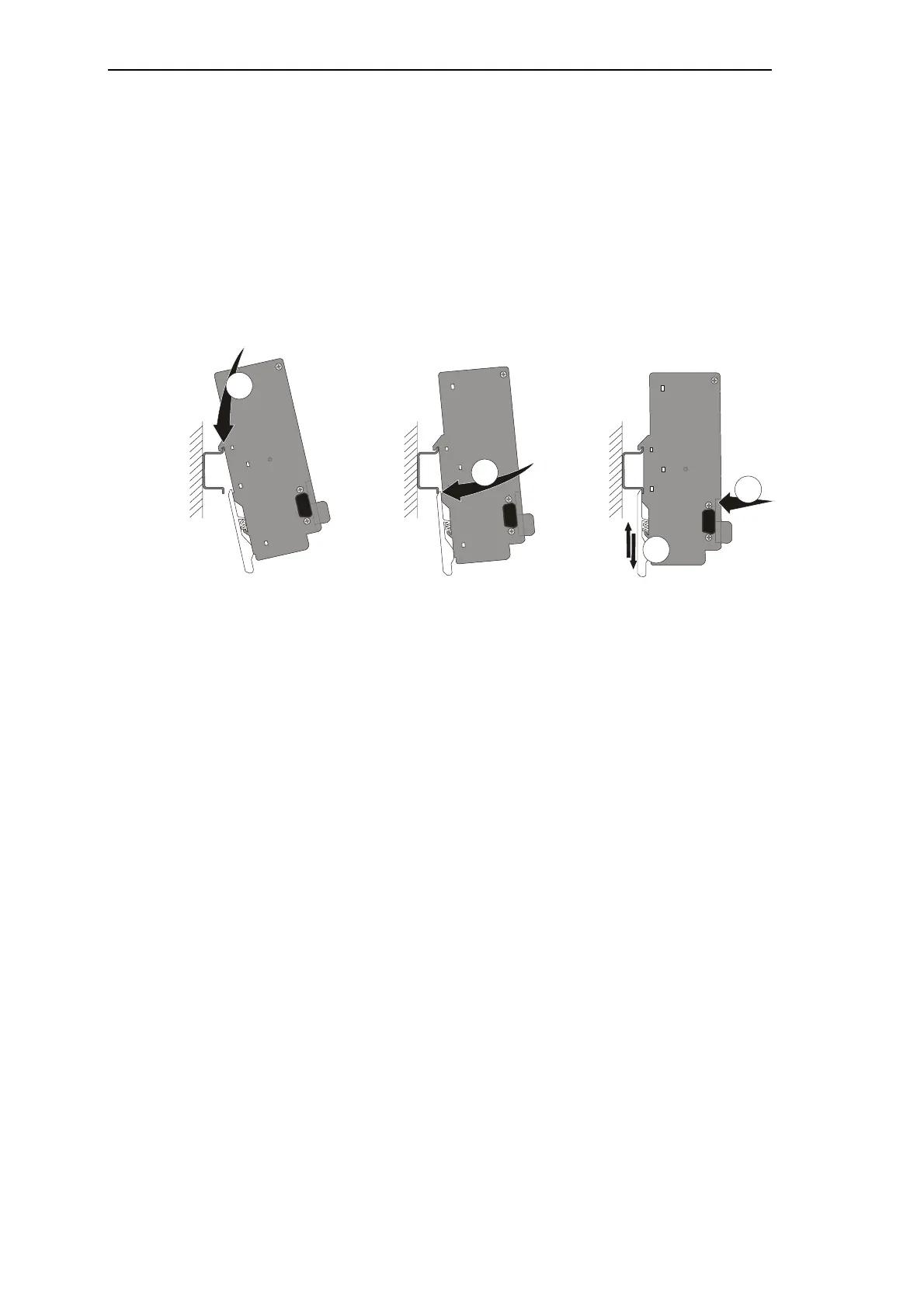

The master control element can be installed on the TS35 rail by hand, without any tools.
To do this, the master control element is attached to the upper edge of the TS35 rail in a
slanted position . One then turns the housing until the white spring retainer has contact with
the lower edge of the rail . By pressing on the housing the spring retainer opens a little
and the housing snaps into the guide.
1
2
