13.2.4 Operating panel displays
Control centre and local operating panels can be parameterised as:
operating panel with EN 54-2 operating panels in accordance with the VdS guidelines
ALARM FIRE MG 4711
11 : 23 : 33 09.09.99
PARFUMERIE 5 FRAGRANCE
LANE
01 ALARM FIRE MG 4711
11 : 23 : 33 09.09.99
PARFUMERIE 5 FRAGRANCE
LANE
The first and last alarm are always displayed here.
Operating panel with GMA user interface with list counter for alarm, signal, fault
(not EN 54-2).
ALARM FIRE MG 4711
PARFUEMERIE 5 FRAGRANCE LANE
11 : 22 : 33 09.09.99
*01 ALARM – SIGNAL 13 FAULT
13.2.5 Mobile operating panel
as of Version 2.6)
The “mobile operating panel” function is required by Maintenance in order to be able to oper-
ate a SIGMASYS M on site (otherwise, every SIGMASYS M must have an operating panel).
An operating panel is specially provided for this task in the project planning in SIGMANET. It
is permanently in operation and can easily be removed as required (TAE-N connector, TAE-N
socket) and then reconnected to the mains in another place equipped with the relevant so-
cket. SIGMANET operates like a bus line in this case (unit position not important). We rec-
ommend installing the operating panel in the OP console to increase portability.

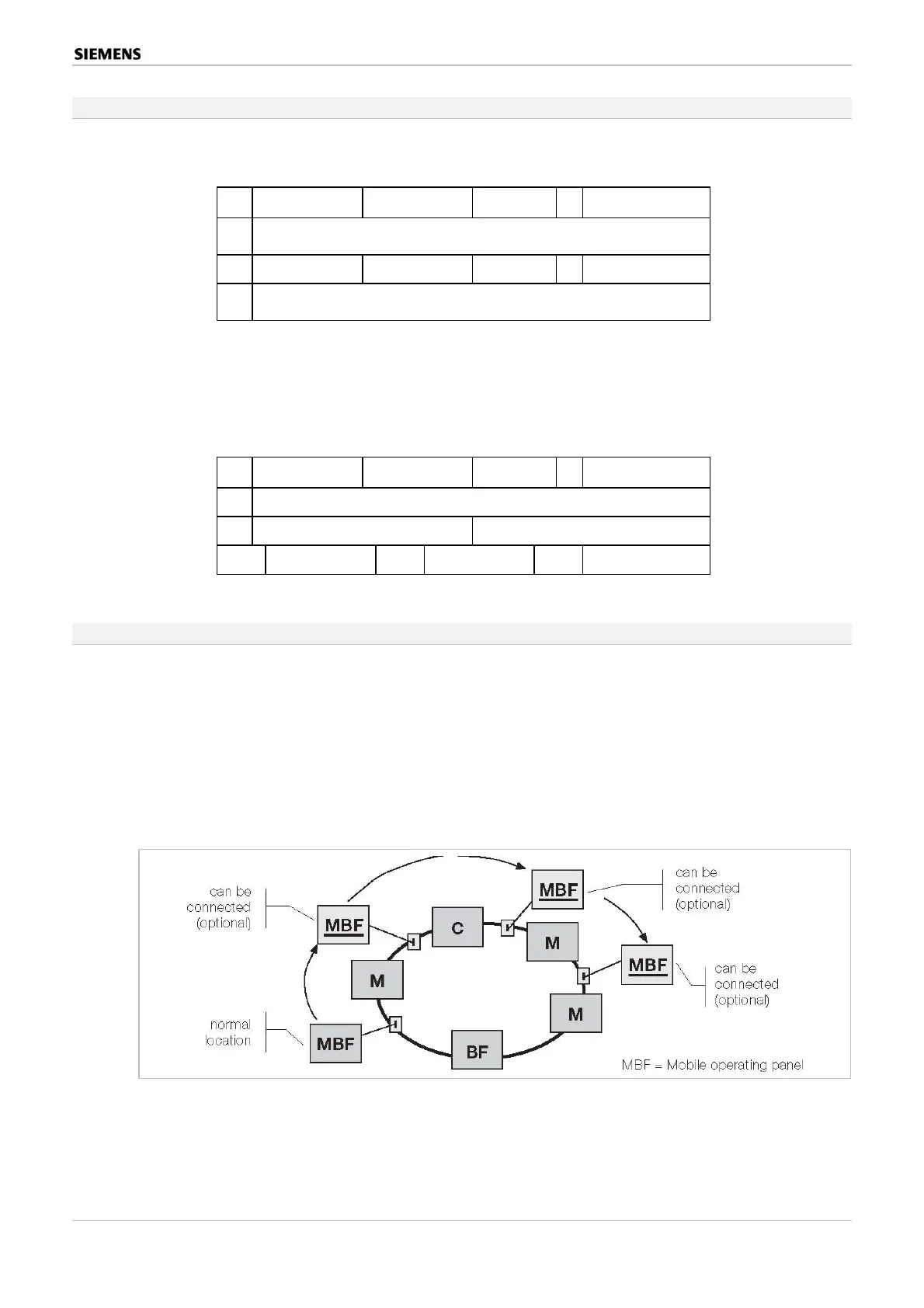

Figure 22: Mobile operating panel connection – diagram of principle
Multifunctional Danger Control and Indicating Panels SIGMASYS C and M (M-Modules) 99 / 128
Best.Nr. A24205-A337-B970 – Edition 12 (03/07)
