4 Project planning for control and indicating panels
Height in mm Width in mm Depth in mm
SIGMASYS C 420 445 195
SIGMASYS M 620 445 230
Battery cabinet 335 445 230
SIGMASYS empty housing 420 445 138
Empty housing remote operating
panel
243 443 131
Cutout for console installation 238 440 70 below the table surface
SM88 operating panel console 243 443
85 – 92 above the table surface 73
below the table surface
Cutout for console installation 210.5 408
Zone operating panel 158 208 135
Table 6: Dimensions for SIGMASYS control and indicating panels

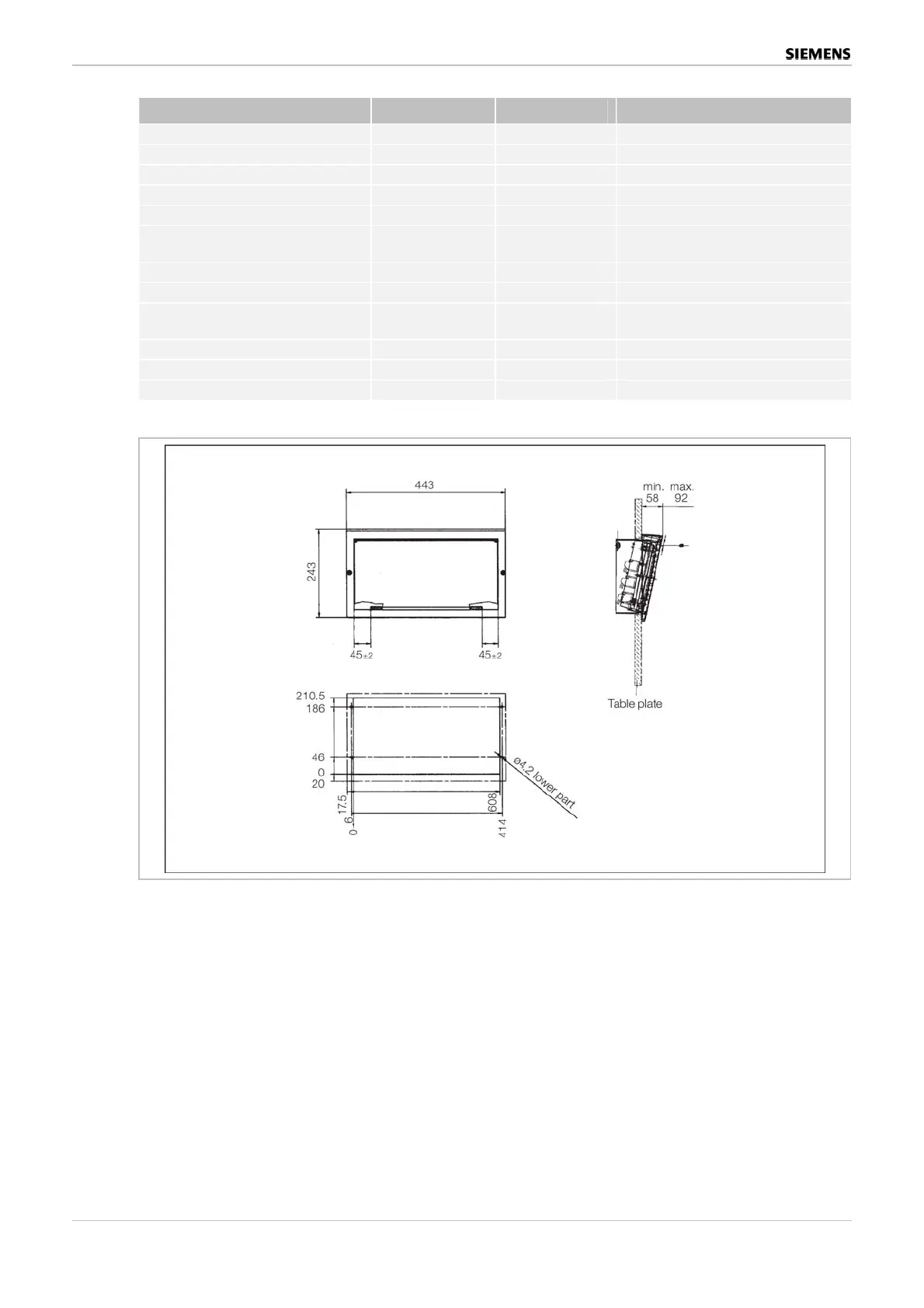

Figure 2: Console installation DT1000 operating panel console, tiltable
14 / 128 BMT Project Planning Guidelines
Best.Nr. A24205-A337-B970 – Edition 12 (03/07)
