Siemens SIGMASYS C User Manual

8 Transponders and loop elements
„Contact, gen. (monitored)” - To connect contacts that are to be monitored
- Multiple contacts can be combined in a detector
zone
- Mandatory-reset contacts may not be connected
“Contact, gen. (non-monitored)” - To connect contacts that are not to be monitored
- Otherwise, as for “Contact, gen.(monitored)”
In the case of VdS systems, when connecting a threshold monitored line, the last detector
with an "S24218-G44-A1 line termination" must be closed. Normal closed (NC) contacts can-
not be connected when monitored.
8.2.2 Input/output module FDCIO222 (FDCI222)
The FDCI222 input module has 4 inputs.
The FDCIO222 input/output module also has 4 potential-free outputs.
Since the inputs are not monitored for creeping wire breakage and short-circuit, in systems
based on the VdS standard the module must be attached immediately next to the contact be-
ing monitored.

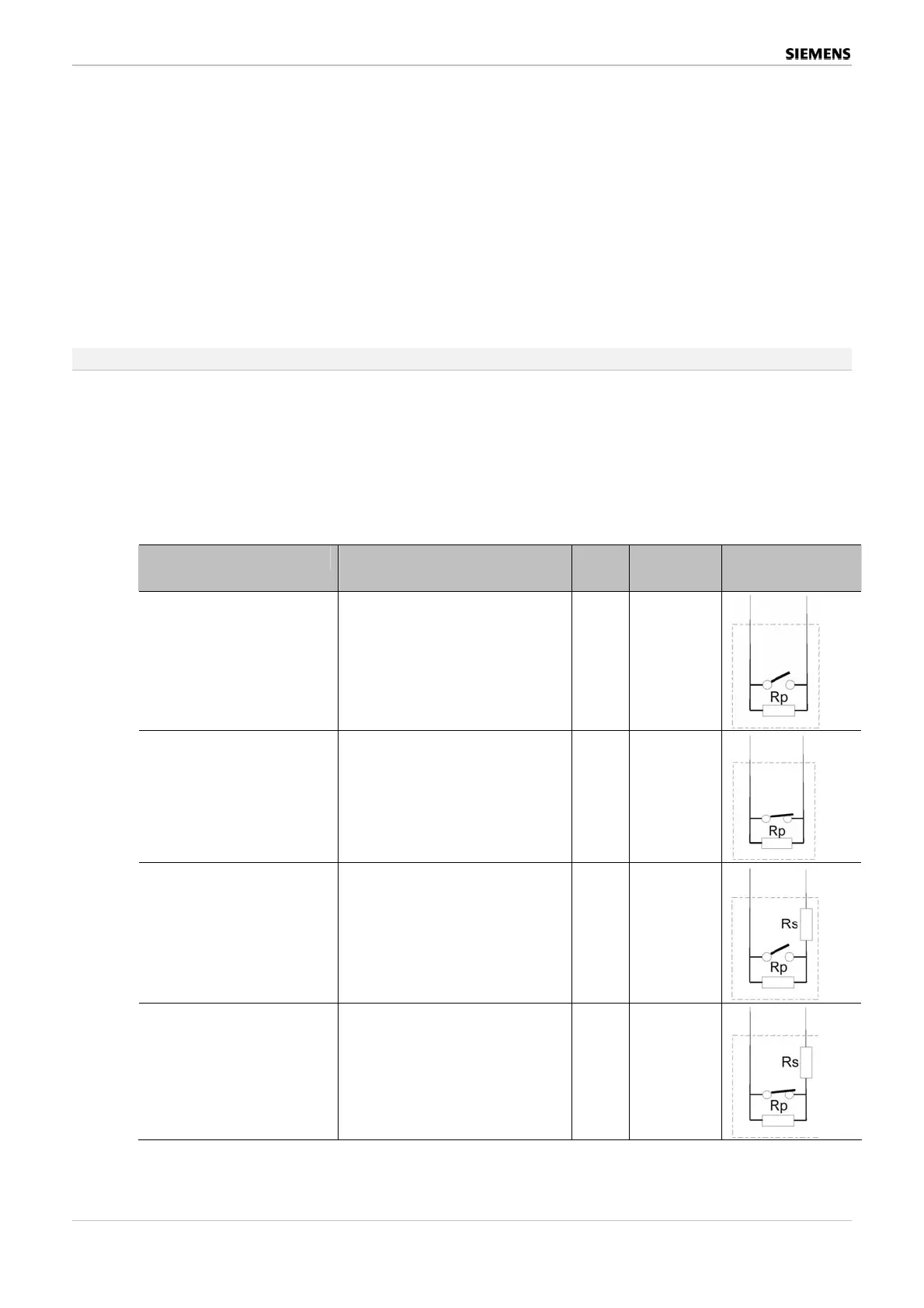

Overview of configurable and switchable inputs.
Designation Used for Idle Signal Switch
in idle state
Monitored contact only wire
breakage
NOC
MG alarm
Monitored for actuation
Monitored for fault
3k01 0 ohms
Monitored contact only wire
breakage
NCC
MG alarm
Monitored for actuation
0 3k01
Monitored contact
NOC
MG alarm
Operating input
Switch (button)
4k16 1k15
Monitored contact
NCC
MG alarm
Operating input
Switch (button)
1k15 4k16
44 / 128 BMT Project Planning Guidelines
Best.Nr. A24205-A337-B970 – Edition 12 (03/07)
