Siemens SIMATIC ET200SP PS 6EP7133-6AB00-0BN0 24 V/5 A User Manual

Description, device design, dimension drawing
2.2 Connections and terminal designation
SIMATIC ET200SP PS
10 Manual, 03.2018, A5E43207434
2.2
Connections and terminal designation
The line input terminals ① can be used to establish the connection to supply voltage.
The output terminals
② are used to connect to the loads to be supplied (see also Section
Installation (Page 23)).
The output current can be sensed via current monitoring terminal
③. The operating state of
the device can be processed via the signaling contact
④ (function and contact rating, see
Chapter Status displays and signaling (Page 12)).
Connections and terminal designations
①
Line input L1, N, PE
One spring-loaded terminal each
②
Output +
3 spring-loaded terminals
②
Output –
3 spring-loaded terminals
③
Current monitoring terminals
One spring-loaded terminal each
④
Signaling contact 13, 14
One spring-loaded terminal each
*1)
Do not subject the end stop to higher loads

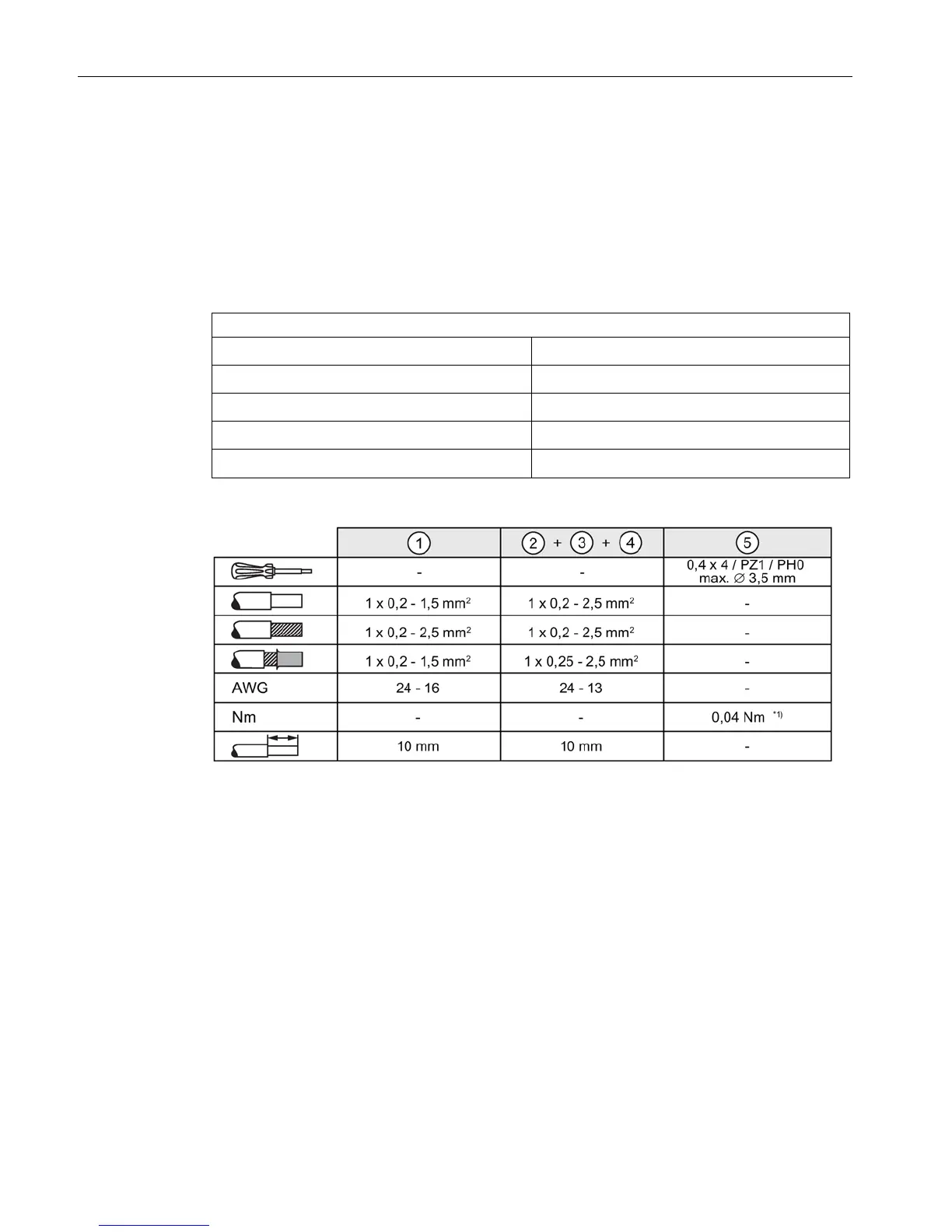

Figure 2-2 Terminal data

Siemens SIMATIC ET200SP PS 6EP7133-6AB00-0BN0 24 V/5 A Specifications

General

Input Voltage	24 V DC
Output Voltage	24 V DC
Output Current	5 A
Mounting Type	DIN Rail
Category	Power Supply
Power Rating	120 W
Protection Class	IP20
Storage Temperature	-40 to +85 °C
Product Type Designation	6EP7133-6AB00-0BN0
Operating Temperature	-20 to +60 °C
Relative Humidity	5% to 95%, non-condensing
Standards	UL
