Safety, approvals, EMC
7.2 Test voltage
SIMATIC ET200SP PS
36 Manual, 03.2018, A5E43207434
7.2
Test voltage

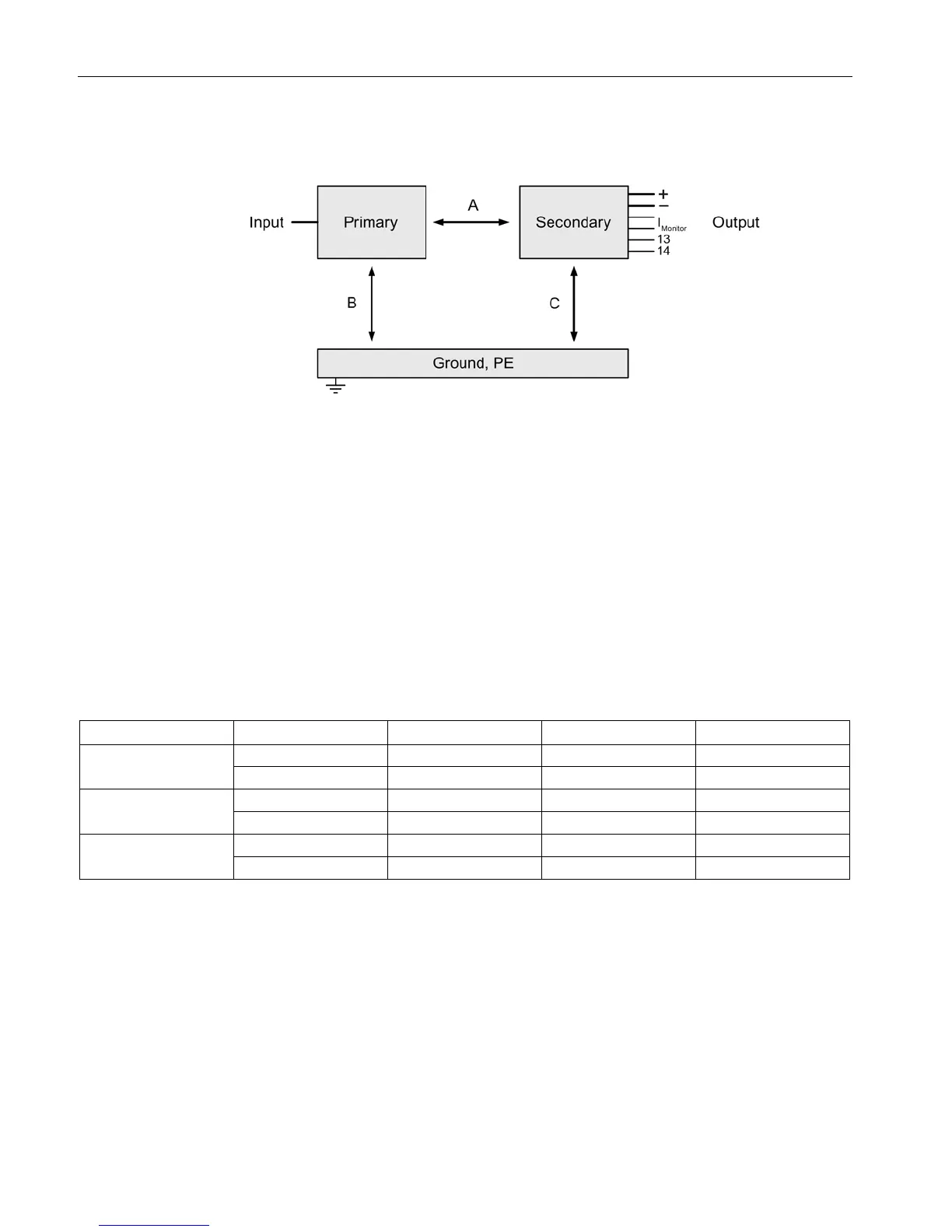

Figure 7-1 Test voltage diagram
Only the manufacturer can perform the type test and production test; users can also perform
the field test.
Preconditions for performing the field test:
Tests (A) & (B)
● Connect the input terminals with one another (L, N)
● Connect the output terminals, signaling contact, I
Monitor
and PE with one another
Test (C)
● Connect the output terminals, signaling contact and current monitoring terminal with one
another and measure with respect to PE
Table 7- 1 Test voltage for 6EP7133-6AB00-0BN0 and 6EP7133-6AE00-0BN0
Test time
Prim ↔ sec (A)
Prim ↔ PE (B)
Sec ↔ PE (C)
Type test 60 s 4200 V DC 2200 V DC 700 V DC
60 s
3000 V AC
1500 V AC
500 V AC
Production test 1 s 2200 V DC 2200 V DC 500 V DC
1 s
1500 V AC
1500 V AC
350 V AC
Field test
1 s
2200 V DC
2200 V DC
500 V DC
1 s
1500 V AC
1500 V AC
350 V AC
Remark:
Tripping current for DC measurement: 0
mA
Tripping current for AC measurement: < 100 mA

Siemens SIMATIC ET200SP PS 6EP7133-6AB00-0BN0 24 V/5 A Specifications

General

Input Voltage	24 V DC
Output Voltage	24 V DC
Output Current	5 A
Mounting Type	DIN Rail
Category	Power Supply
Power Rating	120 W
Protection Class	IP20
Storage Temperature	-40 to +85 °C
Product Type Designation	6EP7133-6AB00-0BN0
Operating Temperature	-20 to +60 °C
Relative Humidity	5% to 95%, non-condensing
Standards	UL
