Siemens SIMATIC ET200SP PS 6EP7133-6AB00-0BN0 24 V/5 A User Manual

SIMATIC ET200SP PS
Manual, 03.2018, A5E43207434
41
Applications
9
9.1
Parallel connection to increase the power rating
To increase the power rating, power supplies of the same type can be directly connected in
parallel.
The following must be observed:
● The cables connected to each power supply at terminals "+" and "-" must have identical
lengths and the same cable cross-sections (or the same impedance) up to a common
external connection point (terminal strip) if possible.
● The power supplies connected in parallel must be switched on simultaneously with a
common switch in the line feeder cable (e.g. with the main switch available in control
cabinets).
● The output voltages measured in no-load operation for the power supplies that are not yet
connected in parallel should not deviate more than a maximum of 50 mV. This usually
corresponds to the factory setting. If the output voltage is changed, you should connect
the "-" terminals and then, in no-load operation, measure the voltage difference between
the "+" terminals that have not yet been connected. The voltage difference should not
exceed 50 mV.

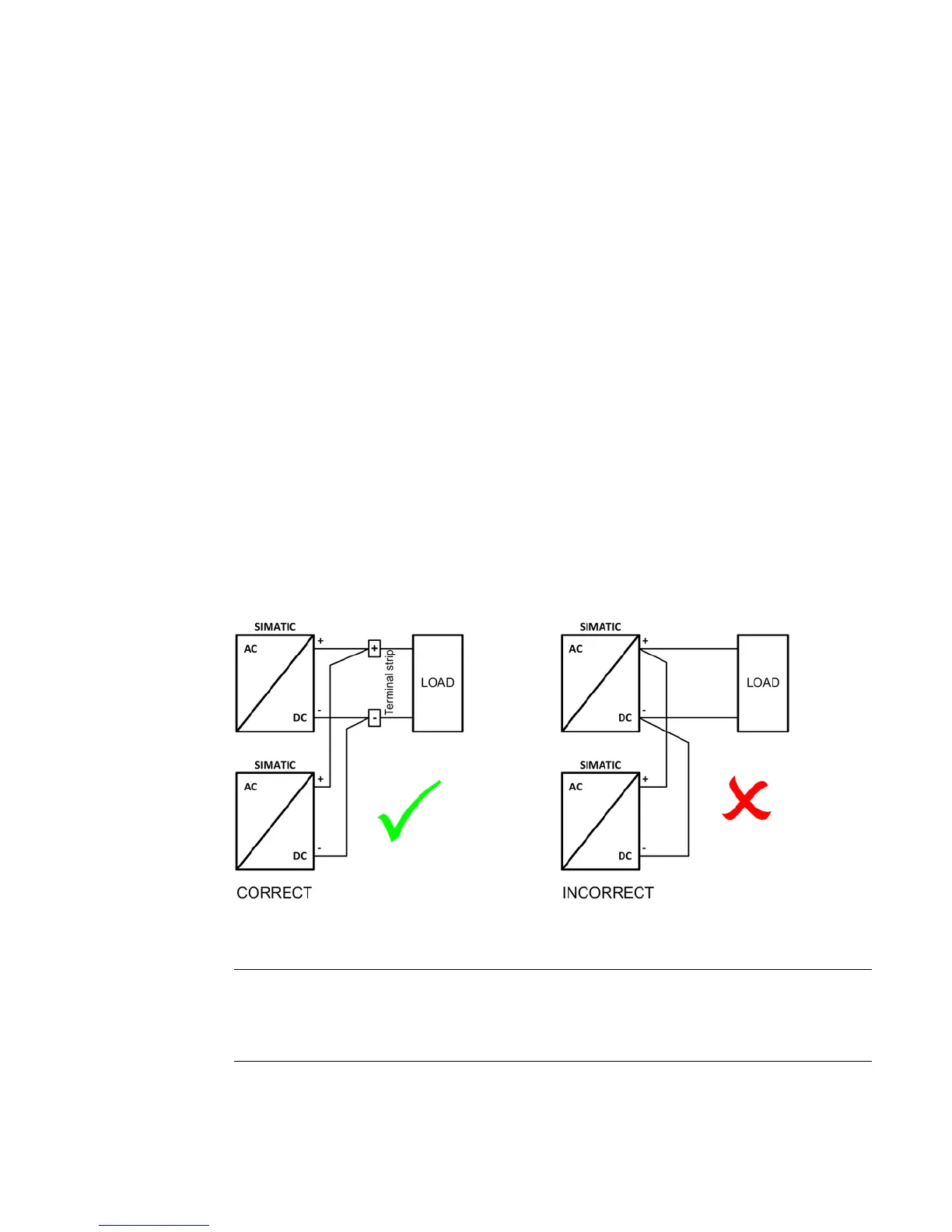

Figure 9-1 Parallel connection correct - incorrect
Note
It is not permissible to take into account simultaneous overload capability (Extra
-Power
150% for 5
s/min) of several power supplies connected in parallel when configuring the
power supply system.

Siemens SIMATIC ET200SP PS 6EP7133-6AB00-0BN0 24 V/5 A Specifications

General

Input Voltage	24 V DC
Output Voltage	24 V DC
Output Current	5 A
Mounting Type	DIN Rail
Category	Power Supply
Power Rating	120 W
Protection Class	IP20
Storage Temperature	-40 to +85 °C
Product Type Designation	6EP7133-6AB00-0BN0
Operating Temperature	-20 to +60 °C
Relative Humidity	5% to 95%, non-condensing
Standards	UL
