2.3 Potentiometer
SIMATIC ET200SP PS
Manual, 03.2018, A5E43207434
11
2.3
Potentiometer

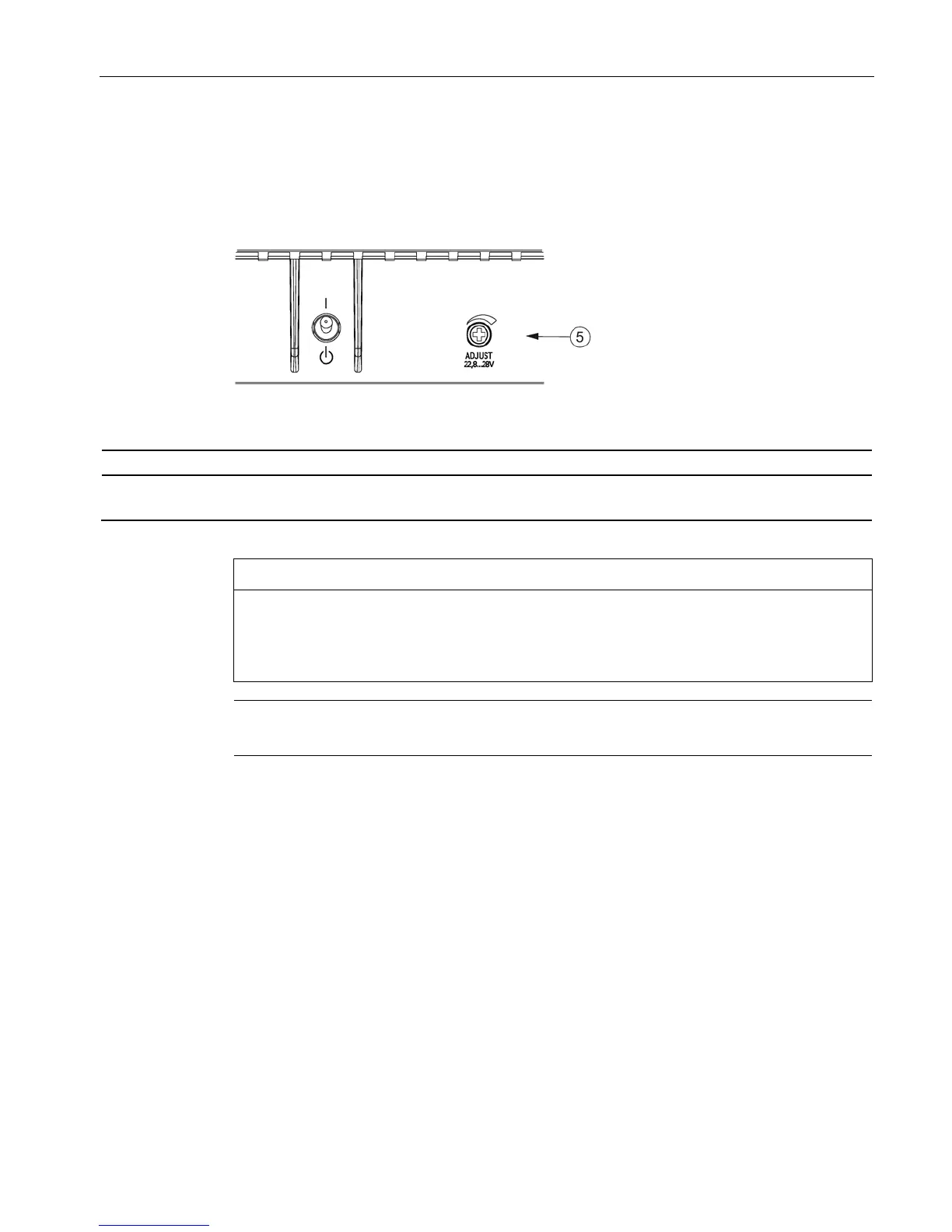

The potentiometer ⑤ on the front of the device is used to set the output voltage.
The output voltage is set to the rated value at the factory and can be set within certain limits;
for example, to compensate voltage drops across long supply lines to the connected load.
Figure 2-3 Potentiometer
Type
Factory setting
Adjustment range
6EP7133-6AB00-0BN0
6EP7133-6AE00-0BN0
24 V 22.8 - 28 V
NOTICE
Thermal overload possible
When adjusting the output voltage to greater than the rated voltage, the output current must
be derated by 4 %/V, or the permissible ambient temperature must be taken into account
with 3° C/V.
Note
It is only permissible to use an insulated
screwdriver when actuating the potentiometer.
For information on actuating the potentiometer (screwdriver, torque), see Figure 2-2
Terminal data (Page 10).

Siemens SIMATIC ET200SP PS 6EP7133-6AB00-0BN0 24 V/5 A Specifications

General

Input Voltage	24 V DC
Output Voltage	24 V DC
Output Current	5 A
Mounting Type	DIN Rail
Category	Power Supply
Power Rating	120 W
Protection Class	IP20
Storage Temperature	-40 to +85 °C
Product Type Designation	6EP7133-6AB00-0BN0
Operating Temperature	-20 to +60 °C
Relative Humidity	5% to 95%, non-condensing
Standards	UL
