SIMATIC ET200SP PS

Manual, 03.2018, A5E43207434

Description, device design, dimension drawing

2.1

Device description

The SIMATIC ET200SP PS is a primary-clocked power supply for connection to a 1-phase

AC line supply. An electronically regulated DC voltage that can be set via a potentiometer is

available at the output of the device. The output of the device is isolated, no-load proof and

short-circuit proof. The LED display indicates the operating status. The current monitoring

terminal is used to sense the output current. The operating state of the device can be

processed via the signaling contact.

①

AC input

②

DC output

③

Current monitoring terminals I

Monitor

(1 V ≙ I

out rated

)

④

Signaling contact (13, 14)

⑤

Potentiometer 22.8 – 28 V

⑥

ON/OFF switch

⑦

Indicator light (24 V O.K.)

⑧

Button to manually release

⑨

Convection

⑩

Clearance above/below

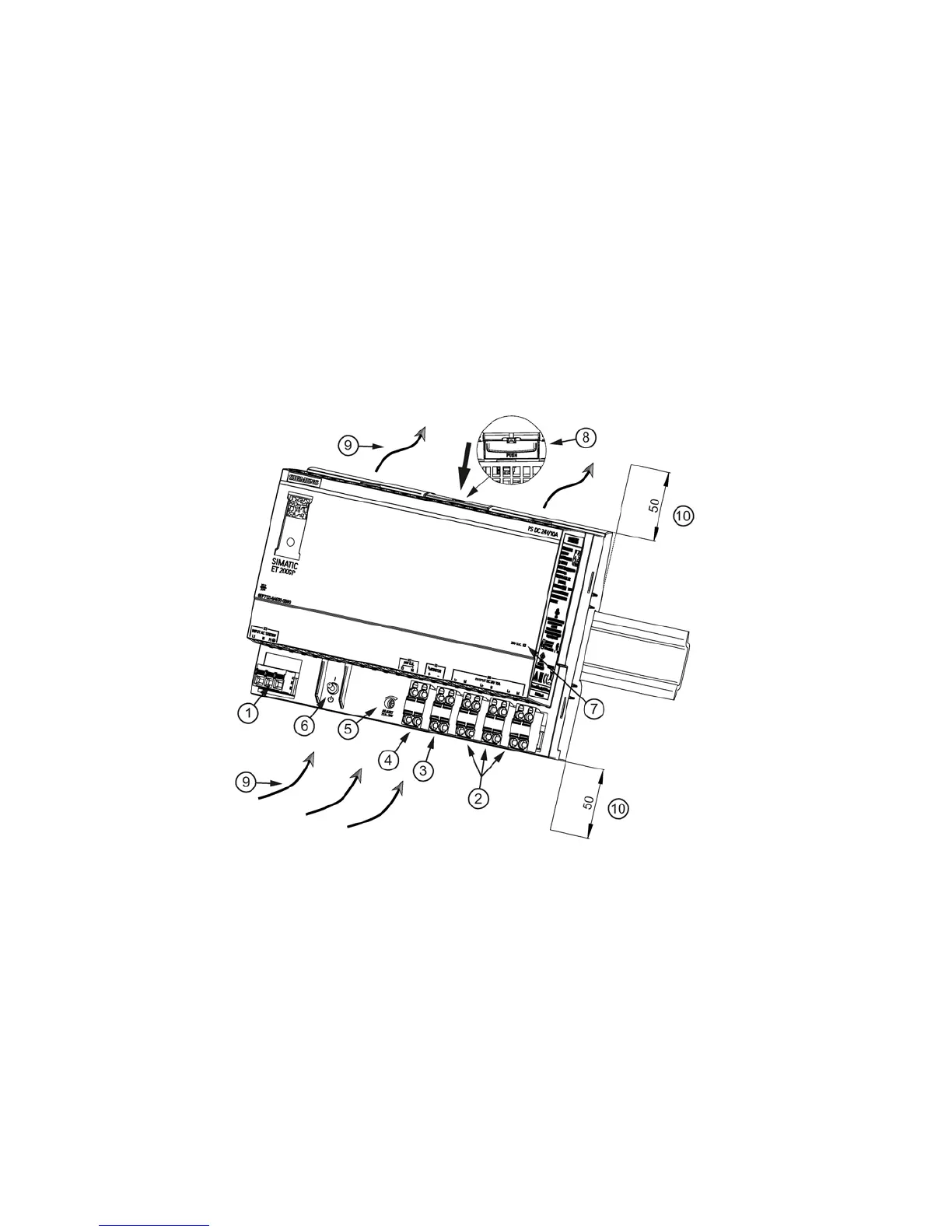

Figure 2-1 Design
