Technical specifications
7.5 Hardware descriptions
SIMATIC IPC227E
Operating Instructions, 11/2016, A5E35782395-AB
111

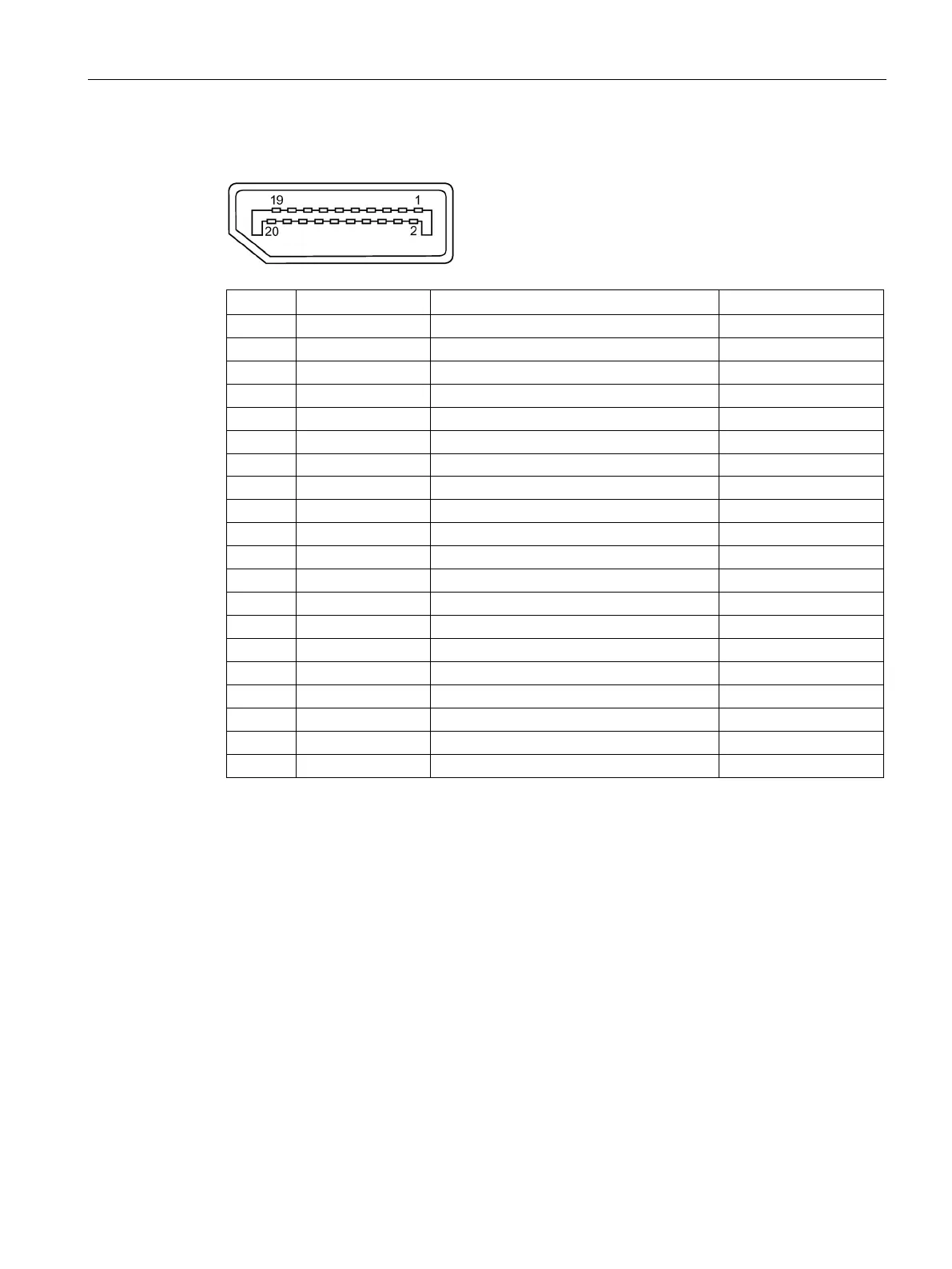

7.5.2.6
DisplayPort
Pin
Short name
Meaning
Input / output
1
ML_Lane0+
DP data 0+
Output
2
GND
Ground
-
3
ML_Lane0-
DP data 0-
Output
4
ML_Lane1+
DP data 1+
Output
5
GND
Ground
-
6
ML_Lane1-
DP data 1-
Output
7 ML_Lane2+ DP data 2+ Output
8
GND
Ground
-
9 ML_Lane2- DP data 2- Output
10
ML_Lane3+
DP data 3+
Output
11
GND
Ground
-
12
ML_Lane3-
DP data 3-
Output
13
CONFIG1 CAD
Cable Adapter Detect
Input
14
CONFIG2
Ground (PullDown)
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19
GND
Ground
-
20
DP_PWR
+3.3V (fused)
Output
