Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC227E
30 Operating Instructions, 11/2016, A5E35782395-AB
Installing the cable strain relief
The cable strain relief plate carries the cables and prevents unintentional loosening of the
connector from the device. The cable strain relief is available as an accessory.

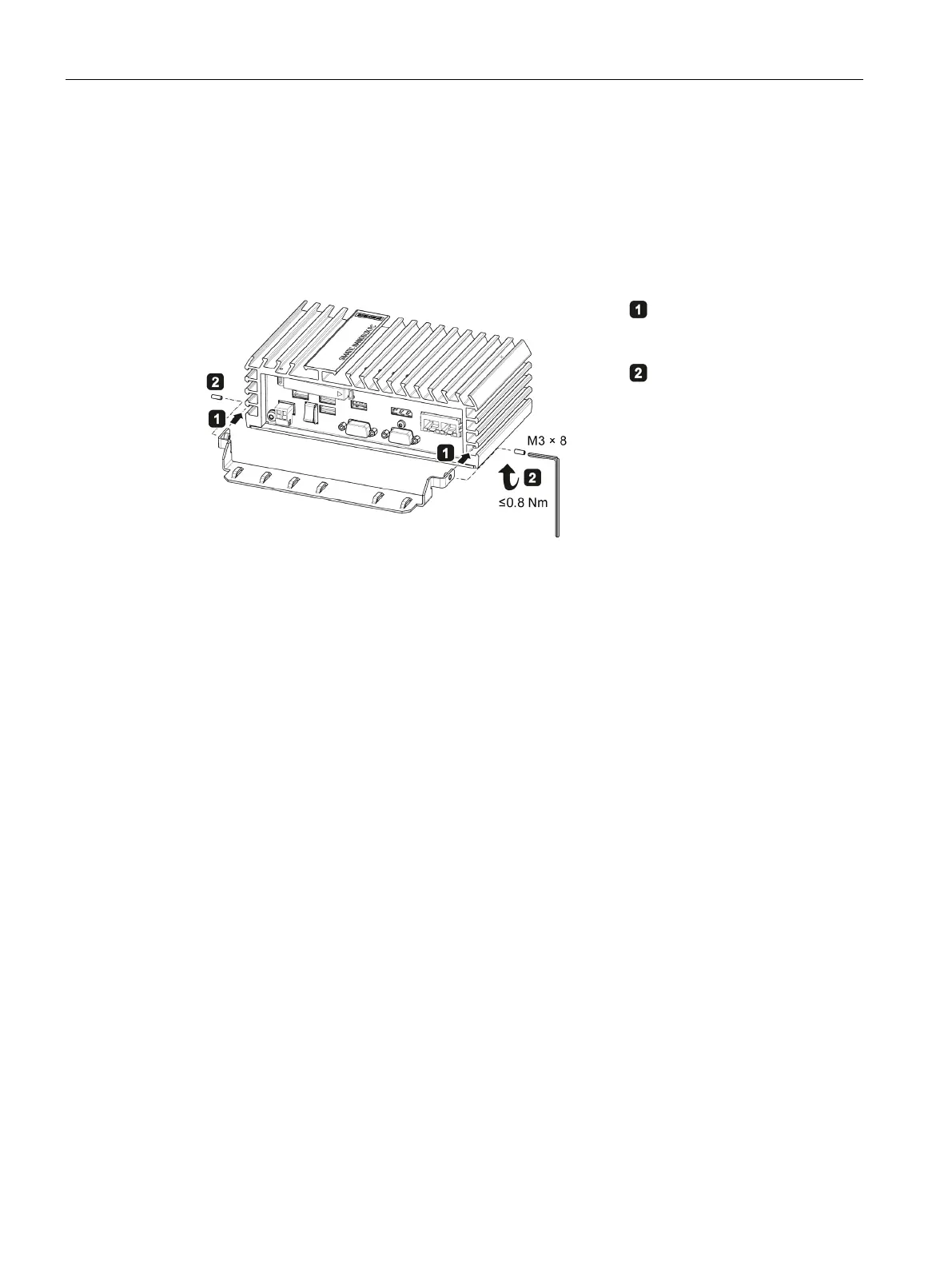

Insert the metal plate of the
strain relief into the last
notch left and right.
Secure the strain relief on
the left and righ
t respective-
ly with an M3x8 setscrew.
a-
bles with cable ties to the
cable strain relief.
