Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC227E
Operating Instructions, 11/2016, A5E35782395-AB
29

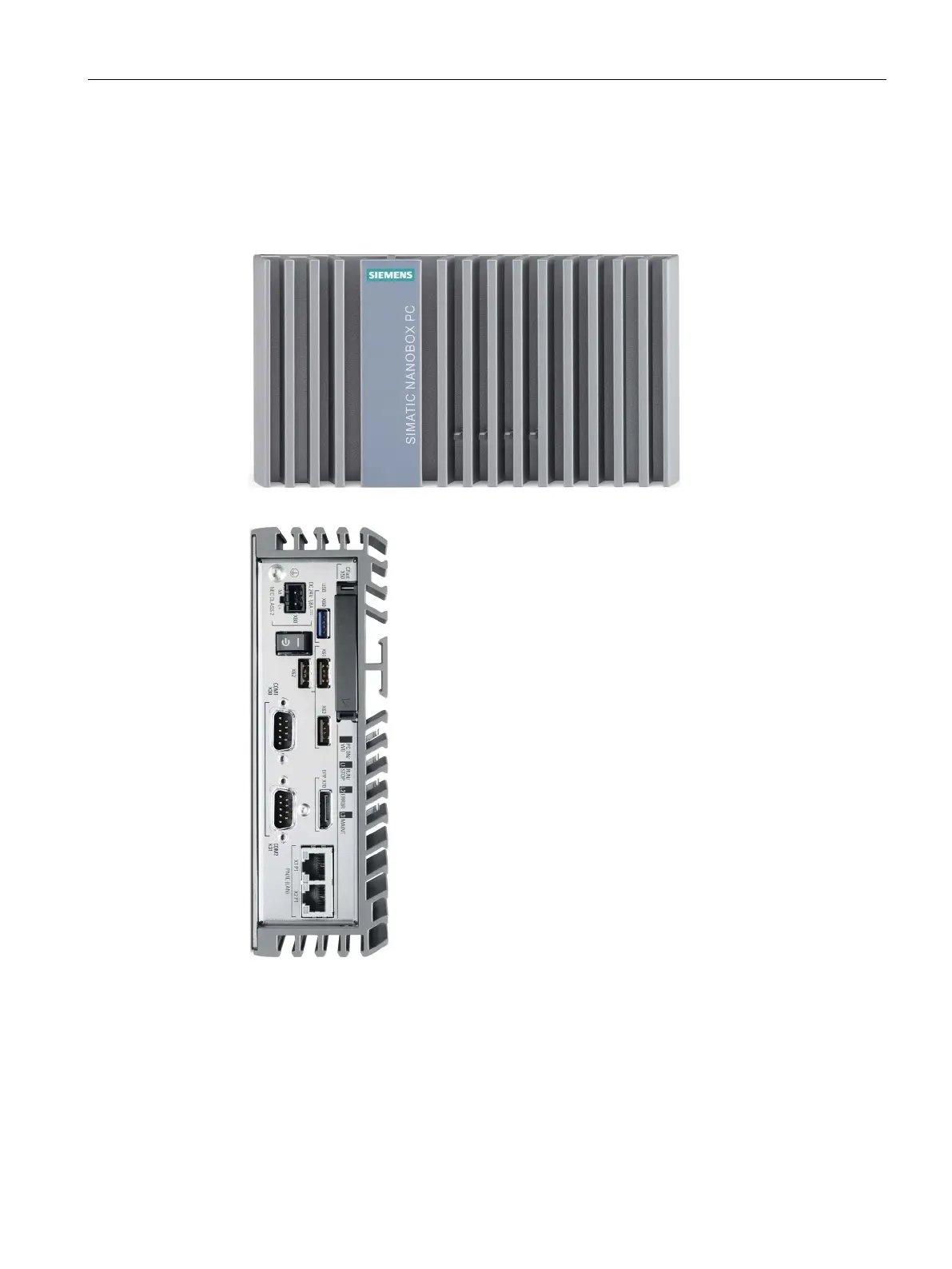

Permitted mounting positions
The following mounting positions are permitted:
● Horizontal mounting position
The horizontal mounting position is the preferred position.
● Vertical mounting position – upright mounting
Take into account the permitted temperature range for operation that depends on the
mounting position in accordance with the "Technical specifications (Page 99)" section.
Ensure that the following clearances measurements to another component or to a wall of a
housing are complied with:
● Below the device: ≥ 100 mm
● Above the device: ≥ 50 mm
