Overview
1.2 Structure of the devices
SIMATIC IPC227E
12 Operating Instructions, 11/2016, A5E35782395-AB
1.2.2
Views of the PCIe device version

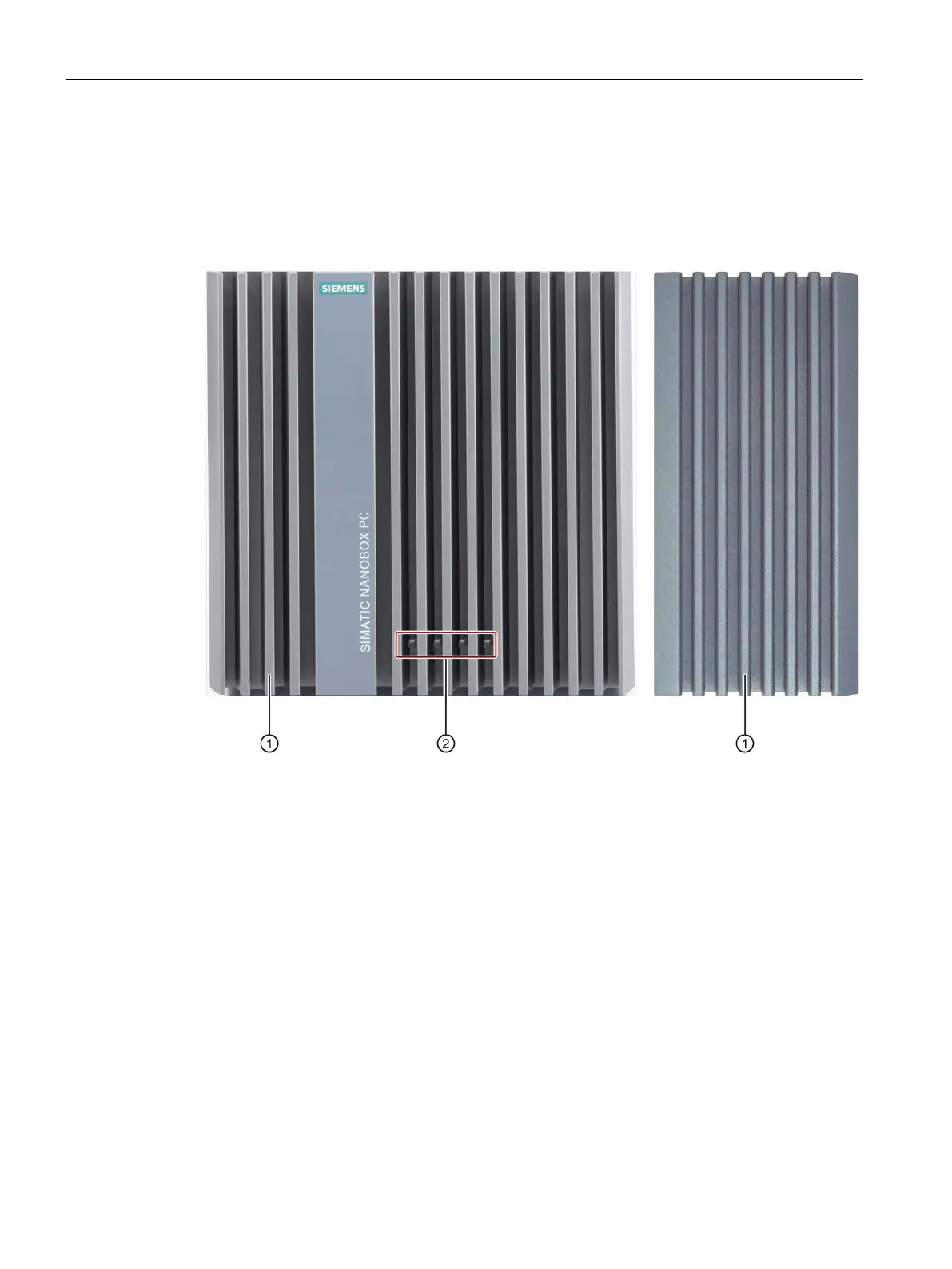

Front view and side view
The front view on the left is the standard mounting position, side view on the right.
①
Cooling fins
②
LED display
