Technical specifications

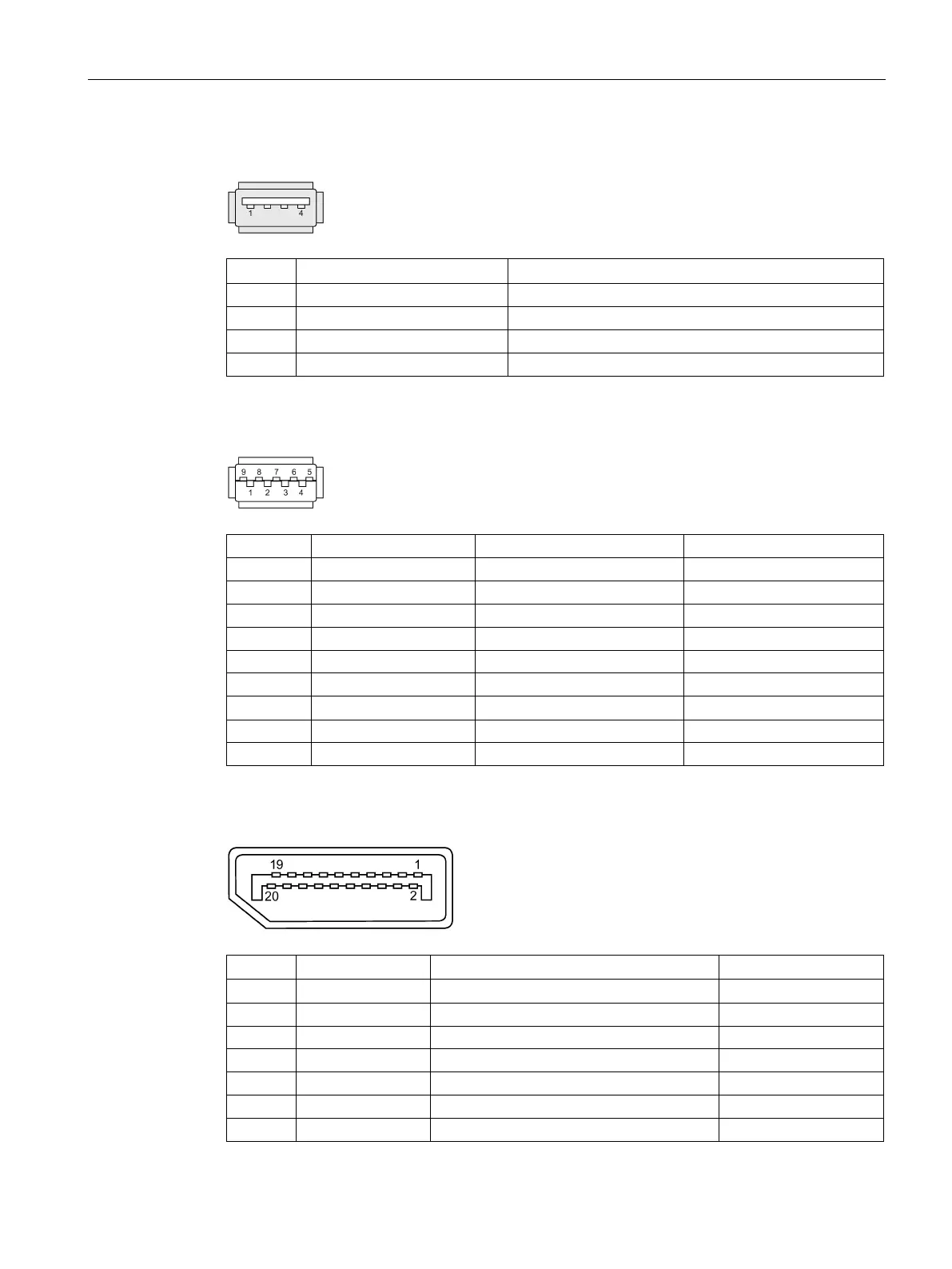

7.5 Hardware descriptions
SIMATIC IPC527G
Operating Instructions, 03/2019, A5E45491226-AA
69
7.5.2.3
USB 2.0 port
Pin
Short description
Meaning
1
USB_P5V_fused (O)
+5 V, fused
2
USB_D0M (I/O)
Data–
3
USB_D0P (I/O)
Data+
4
USB_GND
GND
7.5.2.4
USB 3.0 port
Pin
Short name
Meaning
Input / output
1
VBUS
+ 5 V (fused)
Output
2
D-
Data channel USB2
Input / output
3
D+
Data channel USB2
Input / output
4
GND
Ground
–
5
RX-
Data channel USB3
Input
6
RX+
Data channel USB3
Input
7 GND Ground –
8
TX-
Data channel USB3
Output
9
TX+
Data channel USB3
Output
7.5.2.5
DisplayPort
Pin
Short name
Meaning
Input / output
1 ML_Lane0+ DP data 0+ Output
2
GND
Ground
-
3 ML_Lane0- DP data 0- Output
4
ML_Lane1+
DP data 1+
Output
5
GND
Ground
-
6
ML_Lane1-
DP data 1-
Output
7
ML_Lane2+
DP data 2+
Output
