Technical specifications
7.5 Hardware descriptions
SIMATIC IPC527G
70 Operating Instructions, 03/2019, A5E45491226-AA
Pin
Short name
Meaning
Input / output
8
GND
Ground
-
9 ML_Lane2- DP data 2- Output
10
ML_Lane3+
DP data 3+
Output
11 GND Ground -
12
ML_Lane3-
DP data 3-
Output
13
CONFIG1 CAD
Cable Adapter Detect
Input
14
CONFIG2
Ground (PullDown)
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19
GND
Ground
-
20
DP_PWR
+3.3V (fused)
Output
7.5.2.6

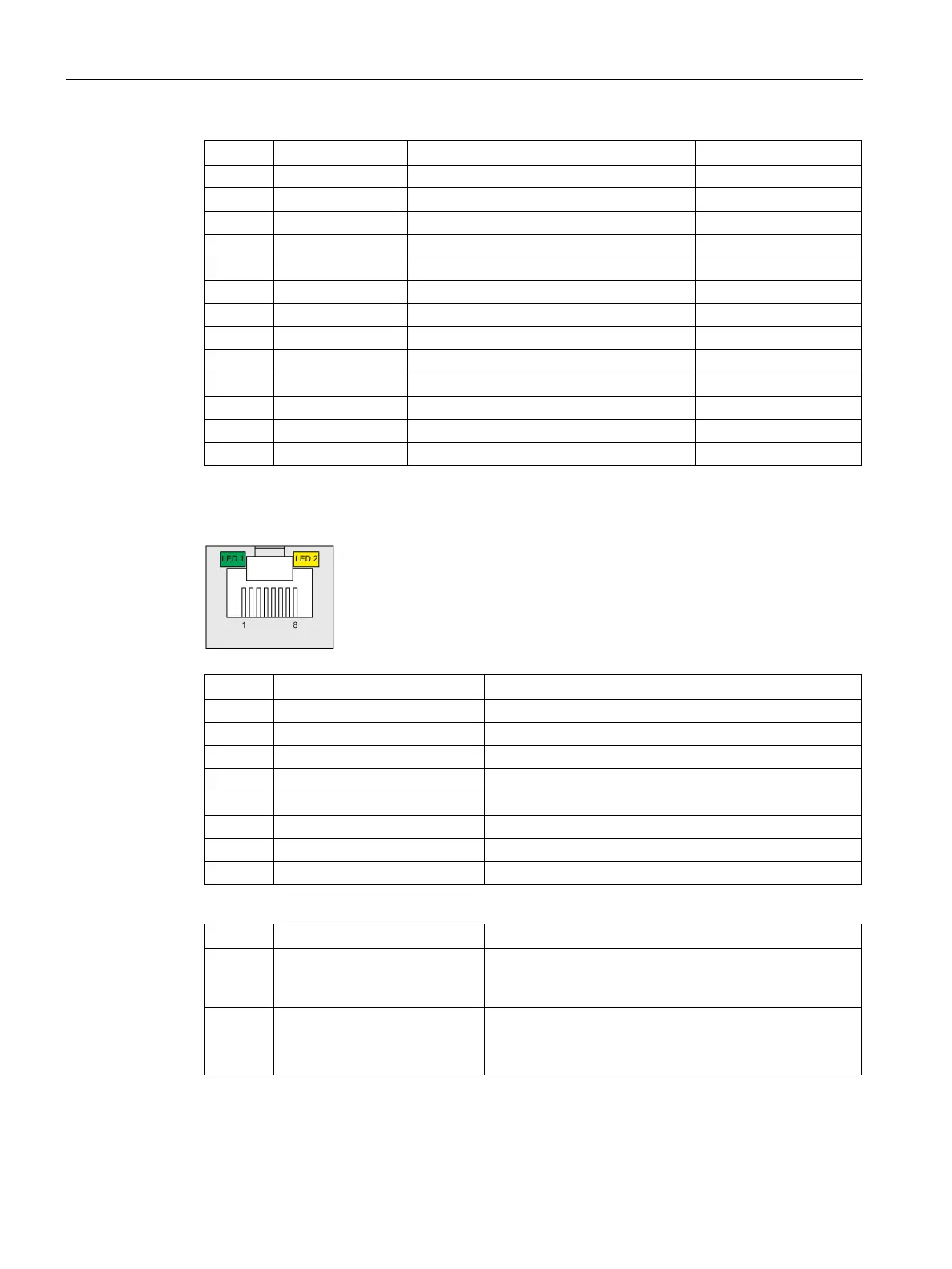

Ethernet port
Pin
Short description
Meaning
1
BI_DA+
Bidirectional data A+, input/output
2
BI_DA–
Bidirectional data A–, input/output
3
BI_DB+
Bidirectional data B+, input/output
4
BI_DC+
Bidirectional data C+, input/output
5
BI_DC–
Bidirectional data C–, input/output
6
BI_DB–
Bidirectional data B–, input/output
7
BI_DD+
Bidirectional data D+, input/output
8
BI_DD–
Bidirectional data D–, input/output
LED
Short description
Meaning
1 LED 1 Off: Port is Not Active
Lit orange: Port is Active, but No Data Activity
Blinking: Port is Active and there is Data Activity
2 LED 2 Off: 10Mbps
Lit red: 100Mbps
Lit green: 1Gbps
