Mounting and connecting the device
3.2 Mounting the device
SIMATIC IPC677D
36 Operating Instructions, 09/2014, A5E32995420-AC

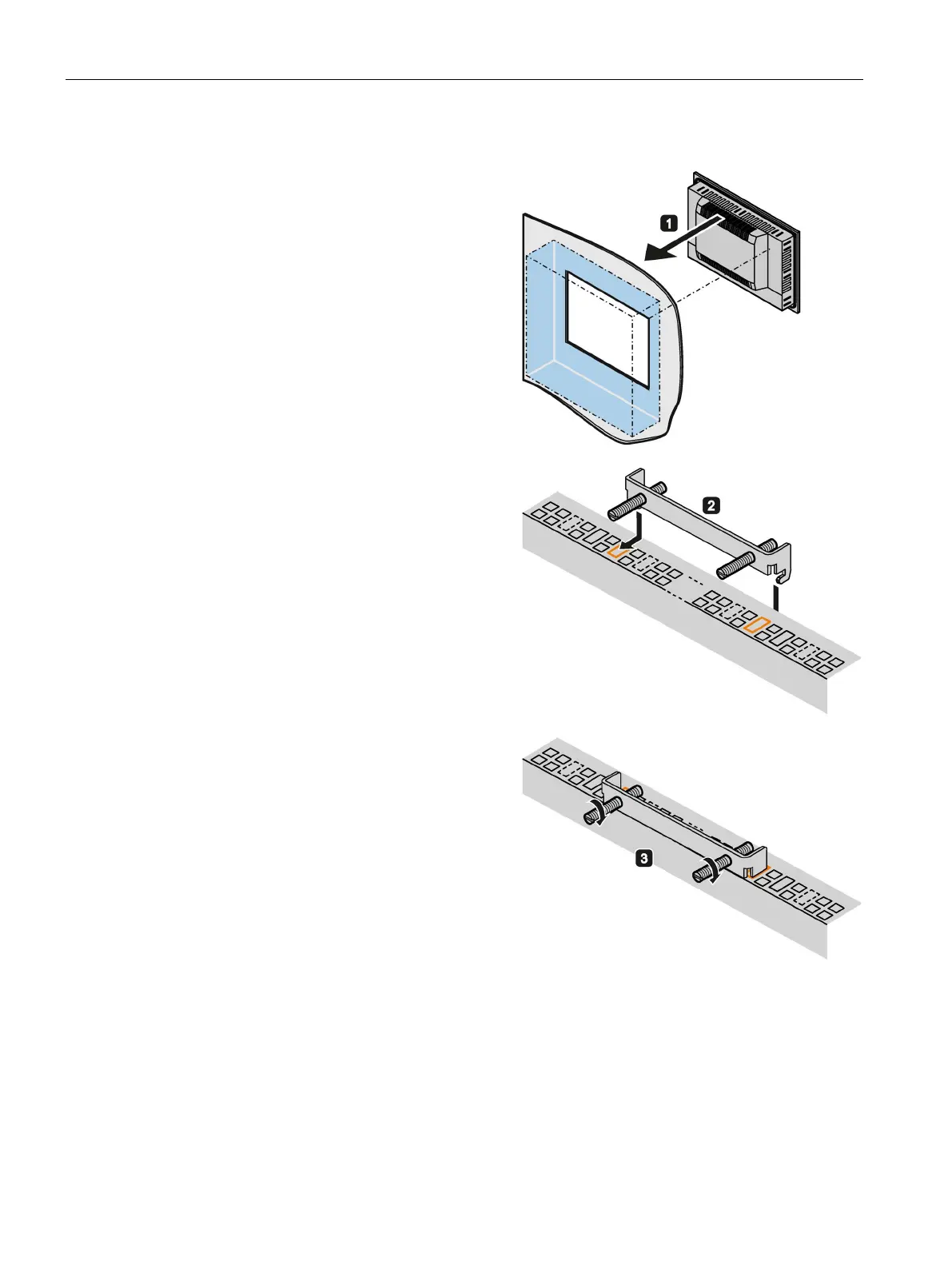

Working from the front, insert the device
into the mounting cut
-out.
Insert the mounting clamp into the r
e-
cesses on the device. Make sure it is in
the correct position, see the section
"
Mounting clips or mounting brackets,
(Page 33)".
Secure the mounting bracket by tighte
n-
ing the threaded pins. The
maximum
permissible torque is 0.5
Nm.
Repeat steps 2 and 3 until all mounting
brackets are attached.
Check the fit of the mounting seal.
Preparing the mounting cutout (Page 29)
