Technical data and characteristic curves
6.1 Explanations
S-1FT7 synchronous motors
Configuration Manual, 09/2018, A5E45099423B AA
141

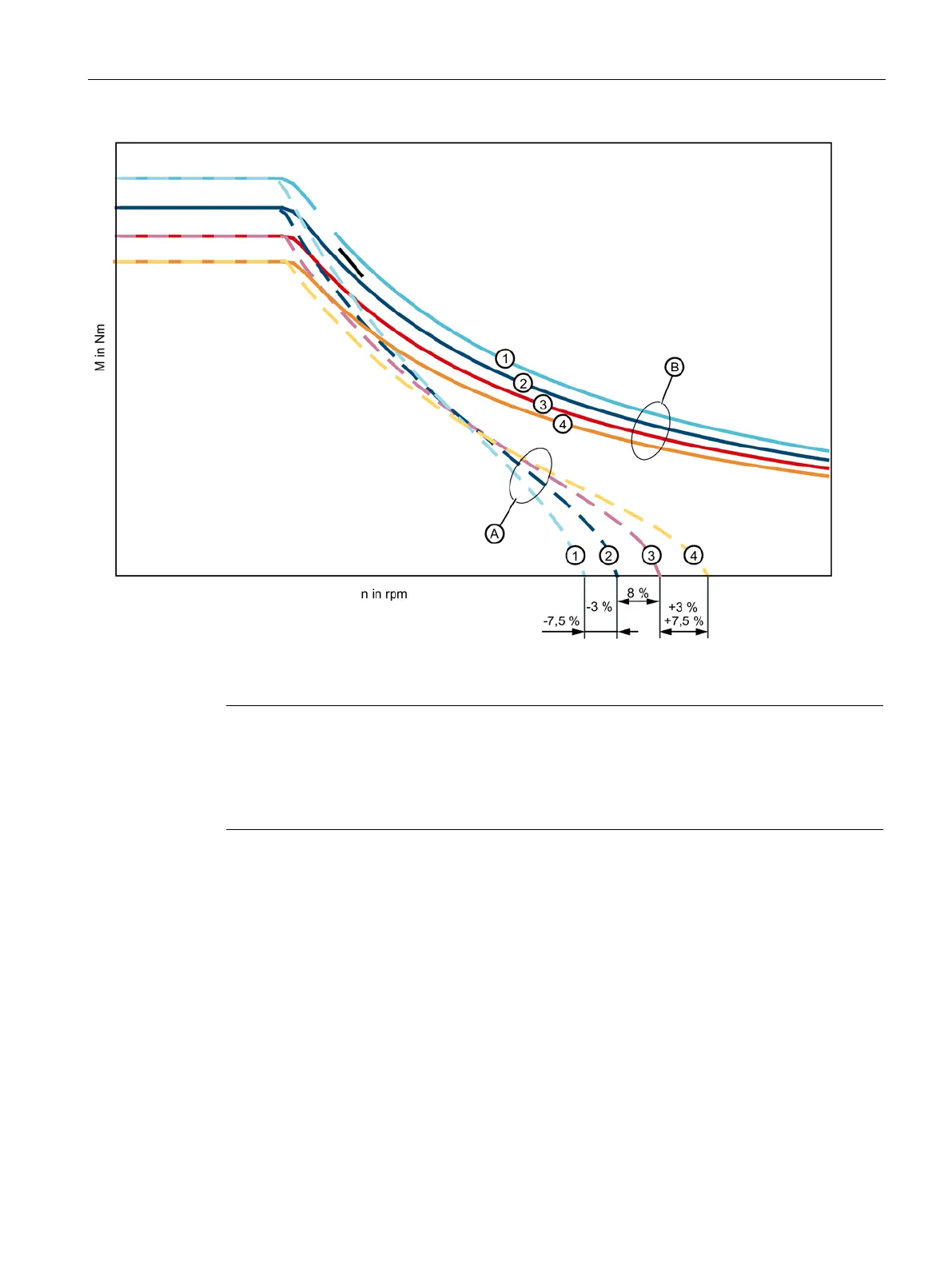

Figure 6-6 Effect of the parameter spread
Note
The motor temperature results in a clear displacement of the voltage limiting characteristic in
the upper speed range.
Consider this when configuring applications with converter systems without field weakening,
in which the cold motor has to produce maximum speeds.
