Electrical connection
8.3 System integration
S-1FT7 synchronous motors
376 Configuration Manual, 09/2018, A5E45099423B AA
8.3.2
Connecting to a converter
1
Terminal Module
8
Motors without DRIVE-CLiQ interface
2
Control Unit
9
Motors with DRIVE-CLiQ interface
3
Operator control unit
A
MOTION-CONNECT power cable
4
Smart Line or Active Line Module
B
MOTION-CONNECT signal cable
5
Double Motor Module
C
DRIVE-CLiQ signal cable
6 Motor Module D MOTION-CONNECT DRIVE-CLiQ signal
cable
7
Sensor Module

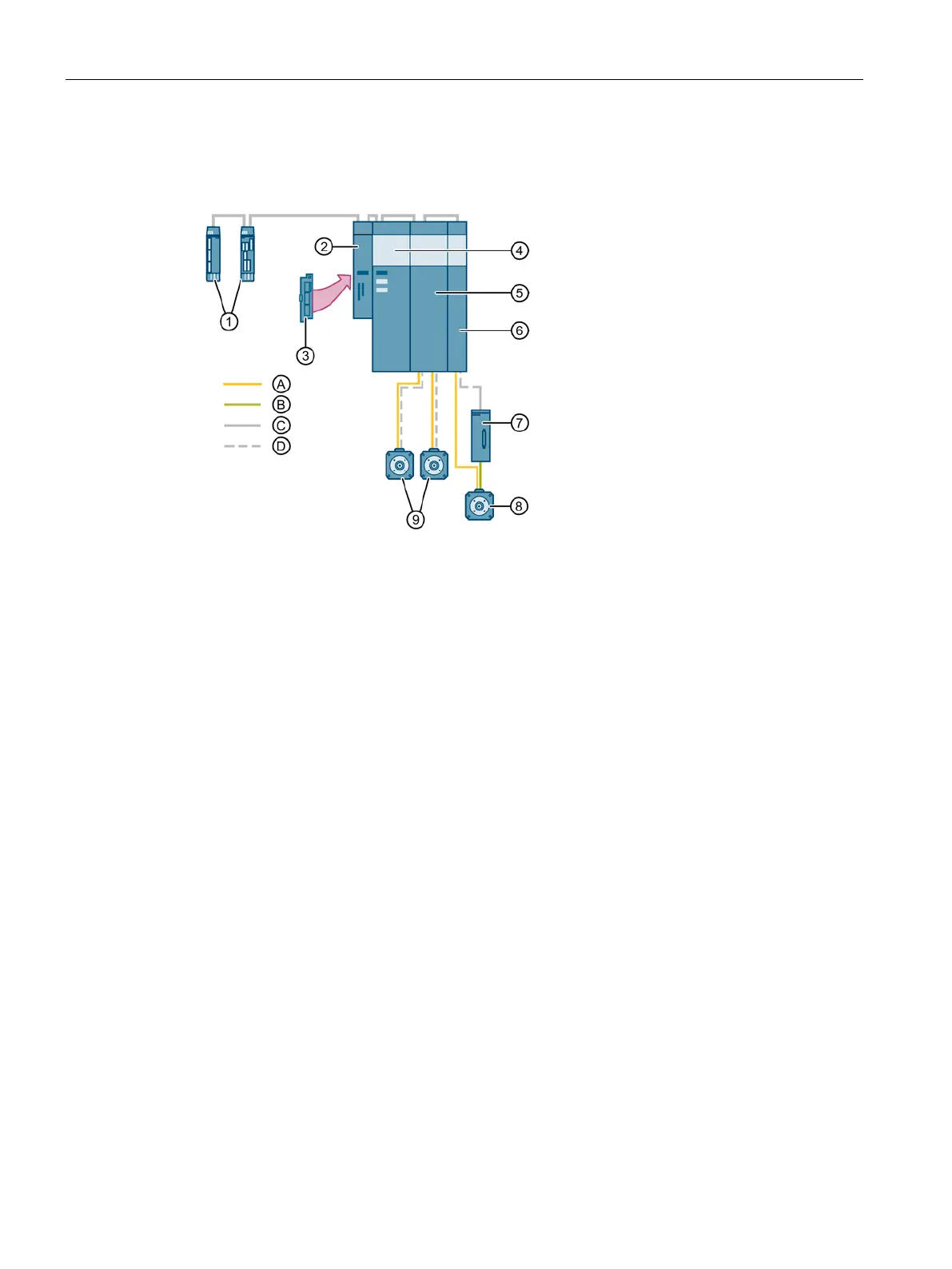

Figure 8-4 SINAMICS S120 system overview
