Electrical connection
8.3 System integration
S-1FT7 synchronous motors
374 Configuration Manual, 09/2018, A5E45099423B AA
Routing cables in a damp environment
Note
If the motor is mounted in a humid environment, the power and signal cables must be routed
as shown in the following figure.

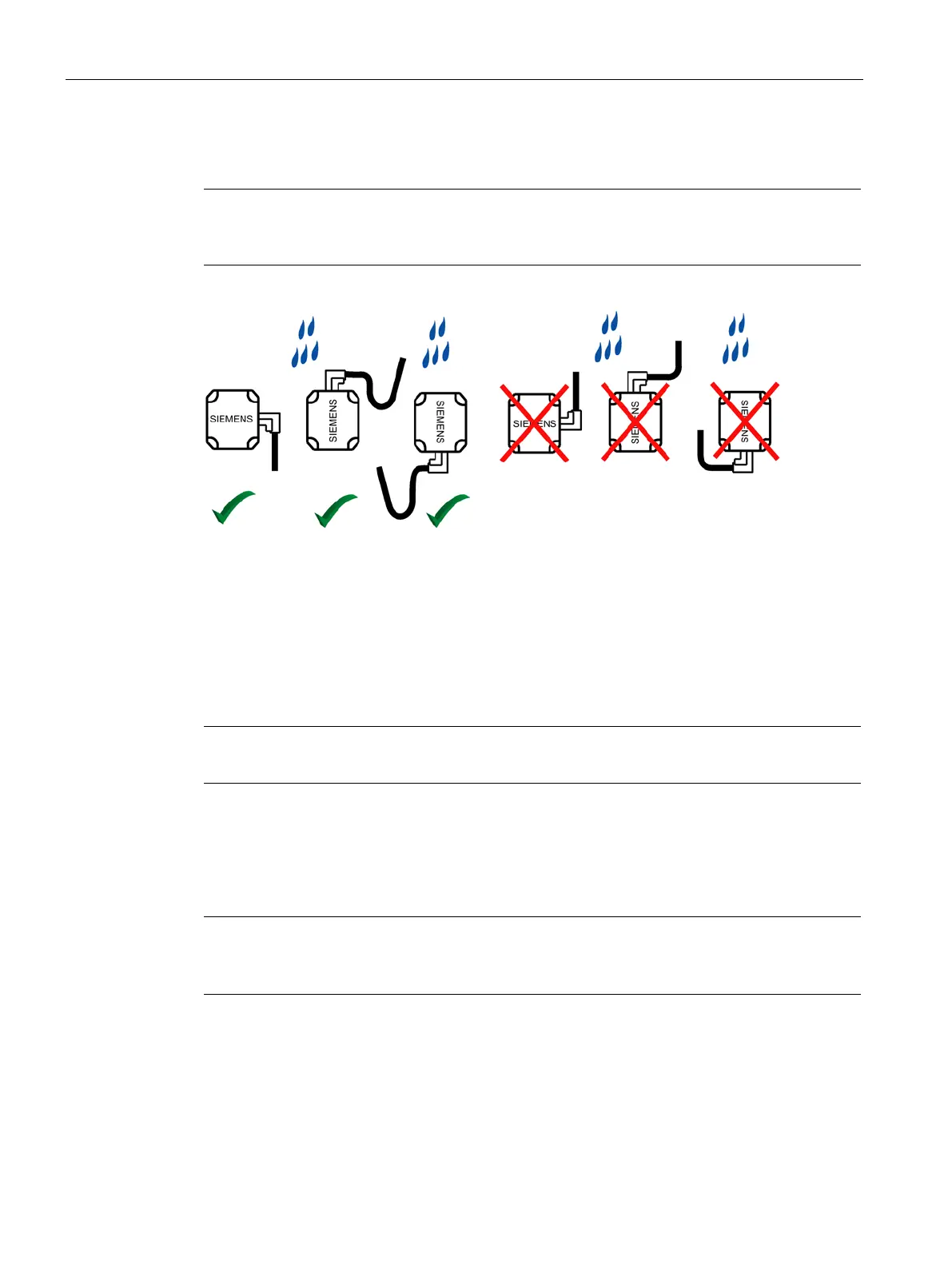

Figure 8-3 Routing cables in a damp environment
Handling the SPEED-CONNECT connection
The motors are equipped with SPEED-CONNECT connectors.
You can also connect quick-connection cables with SPEED-CONNECT to motor connectors
as conventional cables with screw locks (fully threaded).
Note
We recommend cables with SPEED
-CONNECT because they are easier to use.
Establishing a SPEED-CONNECT connection
Procedure
Only tighten the connector by hand.
Do not use any wrenches or similar tools.
