Description of the motors
2.6 Rating plate data (type plate)
S-1FT7 synchronous motors
36 Configuration Manual, 09/2018, A5E45099423B AA
2.6
Rating plate data (type plate)
The rating plate contains the technical specifications applicable to the motor. A second rating
plate is provided loose with the motor when it is delivered.

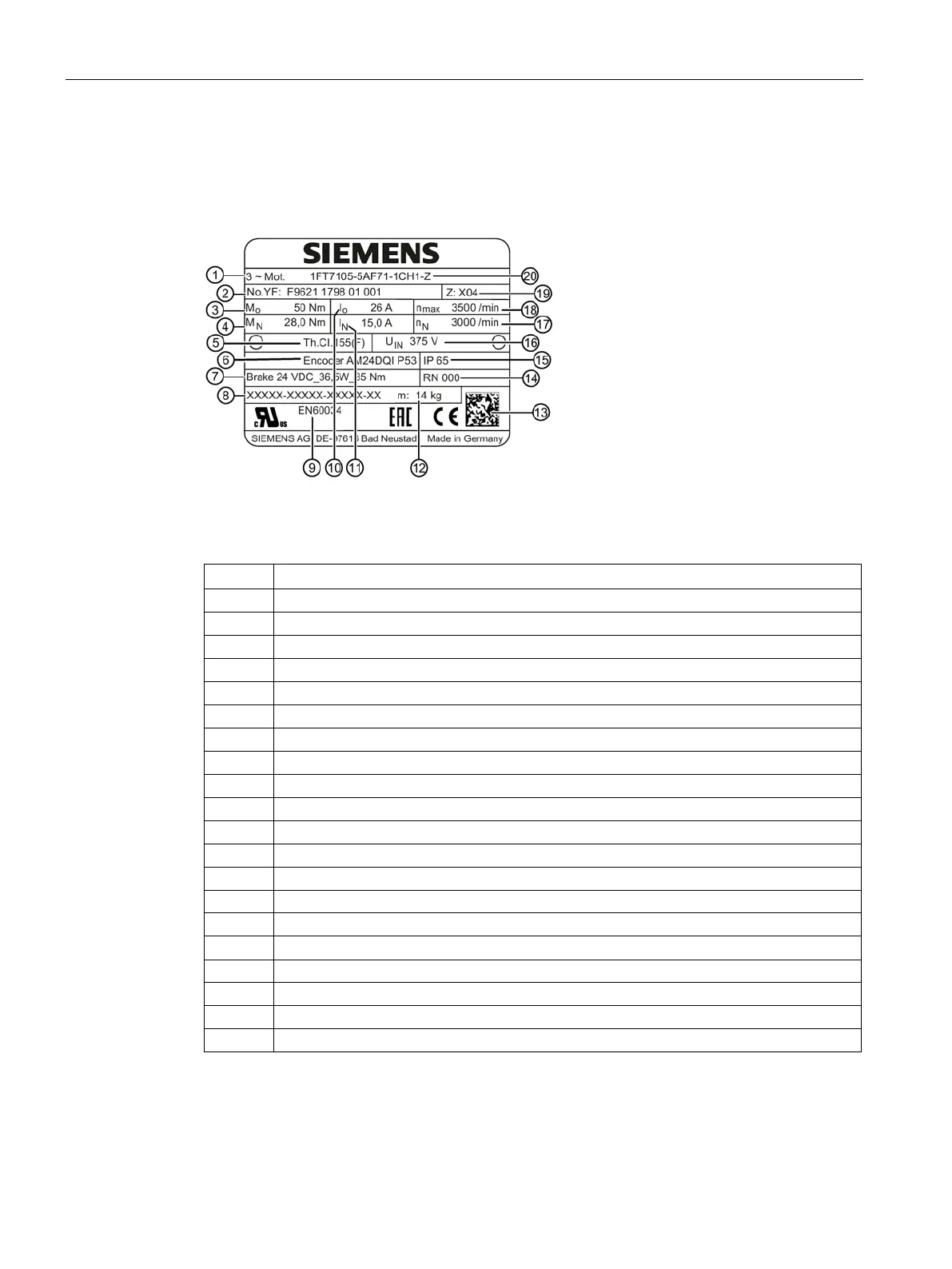

Figure 2-3 Rating plate 1FT7
Table 2- 5 Description of the rating plate data
Position
Description / Technical specifications
1
Motor type: Synchronous motors
2
ID No., serial number
3
Static torque M
0
4
Rated torque M
N
5
Temperature class
6
Code, encoder type
7
Holding brake data: Typical, voltage, power consumption
8
Field for customer data for the option Y84 (max. 20 characters, any distribution)
9
Standard according to which the motor is constructed
10
Stall current I
0
11
Rated current I
N
12
Motor weight m
13
2D code
14
Motor version
15
Degree of protection
16 Induced voltage at rated speed V
IN
17
Rated speed n
N
18 Maximum speed n
max
19
Options of the motor (up to 2 options can be represented, no marking for further options)
20
Motor type/order number
